ROLINE Cable de red Cat.6 S/FTP PiMF, PoE, verde, 0,5 m 21.51.1323

Network performance issues in high-density installations often stem from electromagnetic interference and crosstalk. The ROLINE Cat.6 S/FTP PiMF Patch Cable eliminates these problems with double shielding: a braided screen around all pairs plus individual foil around each pair (PiMF). This green 0.5 m cable is ideal for short, reliable Gigabit Ethernet connections, including PoE applications, in data centers, offices, and industrial environments.

Who is it for

IT professionals, network administrators, and system integrators who need dependable, high-speed connectivity in areas with high EMI, such as near power lines, machinery, or dense cable bundles. It is also suitable for connecting PoE devices like IP cameras, VoIP phones, and wireless access points where both data and power are required over a single cable.

Main features

• Cat.6 performance up to 250 MHz, supporting Gigabit Ethernet (1000 Mbps).

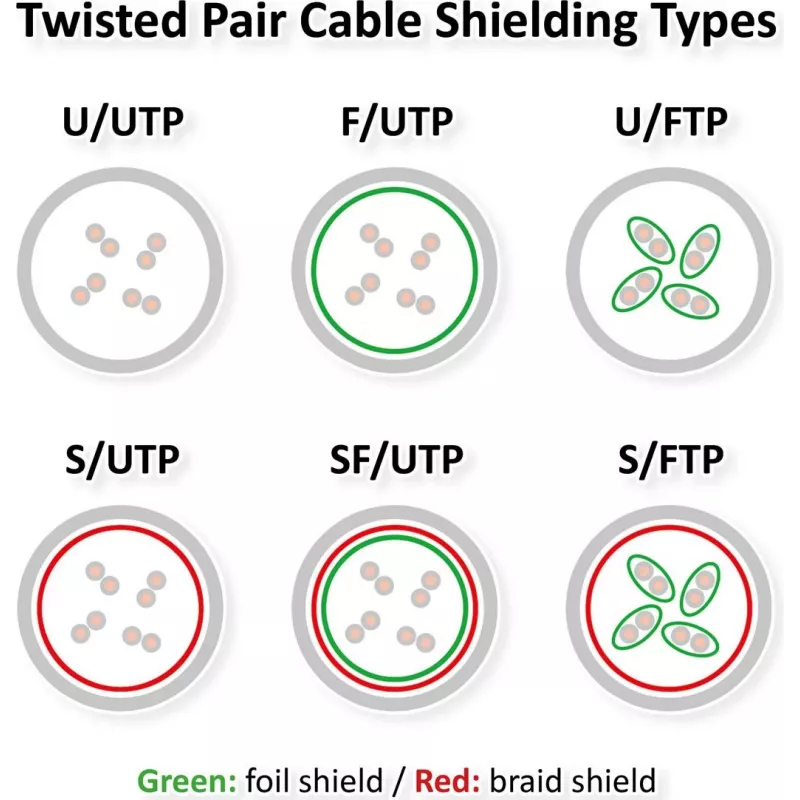

• S/FTP shielding with PiMF (Pairs in Metal Foil) for superior protection against alien crosstalk and EMI.
• Supports Power over Ethernet (PoE) for delivering data and power simultaneously.
• Snagless boot design protects the locking tab during installation and removal.
• Flexible stranded copper conductors (AWG 27/7) for easy routing in tight spaces.
• Durable PVC jacket, green colour for easy identification.

Specifications

• Cable length: 0.5 m
• Cable type: Ethernet Patch Cable
• Category: Cat.6 (Class E)
• Shielding: S/FTP (PiMF)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor gauge: AWG 27/7 stranded
• Jacket material: PVC
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1000 Mbps (1 Gbps)
• Wiring standard: TIA/EIA 568-B.2
• Impedance: 100 Ohm
• Number of pairs: 4
• PoE support: Yes
• Colour: Green

Tips

For best performance, avoid bending the cable beyond its minimum bend radius (typically 4 times the cable diameter). When using PoE, ensure your power sourcing equipment (PSE) is compatible with the power requirements of the connected device. Use cable management accessories to maintain proper airflow and reduce stress on connectors.
