BFT ARES ULTRA BT B1500 Motor para puerta corredera 1500 kg

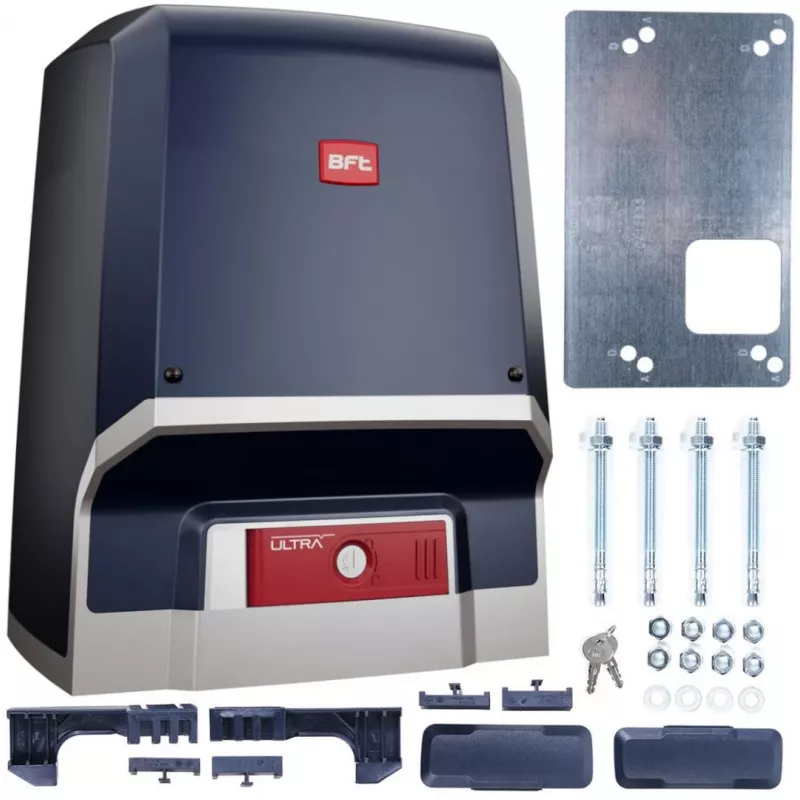

The BFT ARES ULTRA BT B1500 is a high-performance sliding gate operator designed for residential and commercial gates weighing up to 1500 kg. Featuring a brushless 24V DC motor and integrated THALIA LIGHT control unit, this operator ensures smooth, reliable operation with advanced safety features. The built-in Bluetooth module enables easy programming and control via the BFT U-Link app.

Advantages

Brushless motor technology ensures high efficiency and long service life. The absolute encoder (D-Track) provides precise position control and obstacle detection, enhancing safety. Soft start/stop reduces mechanical stress on the gate. The lever release with personalized key allows manual operation during power outages.

Suitable for

• Sliding gates up to 1500 kg and 20 m length
• Residential and light commercial applications
• Intensive use environments

Key specifications

• Max gate weight: 1500 kg
• Motor power supply: 24V DC
• Control unit power supply: 230V AC ±10%, 50/60 Hz
• Motor type: Brushless
• Gate speed: 12 m/min
• Protection rating: IP24
• Operating temperature: -20°C to +55°C
• Torque: 30 Nm
• Pinion module: M4
• U-Link compatible

Recommendations

For optimal performance, ensure proper installation by a qualified technician. Use only genuine BFT accessories. Regularly check the gate balance and safety features.
