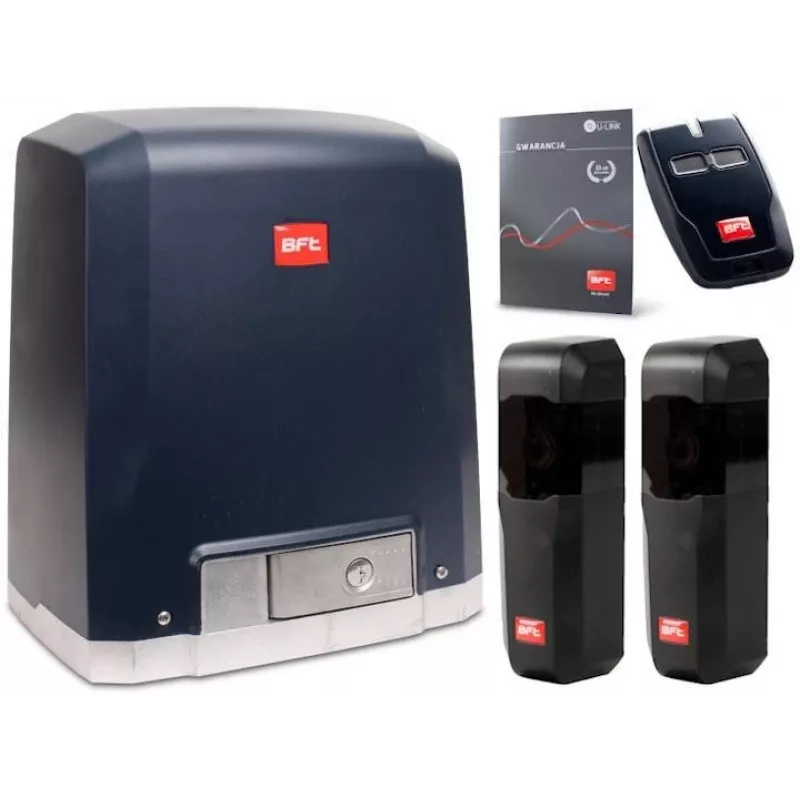

BFT DEIMOS AC KIT A600 MAG PL Motor para puerta corredera

The BFT DEIMOS AC KIT A600 MAG PL is a complete electromechanical sliding gate opener kit designed for residential and intensive-use applications. This kit includes the DEIMOS AC motor, integrated THALIA LIGHT control unit, magnetic limit switches, and a 433.92 MHz radio receiver. Suitable for sliding gates up to 600 kg, it offers reliable performance with soft start/stop, D-Track obstacle detection, and a self-locking mechanism.

Advantages

This kit provides a comprehensive solution for sliding gate automation, featuring a powerful 230V AC motor with thermal protection and a duty cycle suitable for intensive use. The integrated control unit simplifies installation, while the magnetic limit switches ensure precise gate positioning. The D-Track obstacle detection system enhances safety, and the adjustable soft start/stop reduces mechanical stress on the gate.

Suitable for

• Residential sliding gates up to 600 kg
• Commercial and industrial applications requiring intensive use
• Gates with a maximum length of 12 m/min speed
• Installations requiring integrated radio receiver and control unit

Key specifications

• Motor Type: Electromechanical
• Power Supply: 230V AC, 50/60Hz
• Max Gate Weight: 600 kg
• Gate Speed: 12 m/min
• Limit Switch Type: Magnetic
• Control Unit: Integrated THALIA LIGHT
• Duty Cycle: Intensive Use
• Pinion Module: M4
• Protection Rating: IP44
• Operating Temperature: -20°C to +55°C
• Safety System: D-Track Obstacle Detection
• Soft Start/Stop: Yes, Adjustable
• Max Power Input: 290 W
• Thermal Protection: Integrated
• Manual Release: Lever with Personalised Key
• Max Thrust: 300 N
• Self-locking: Yes
• Radio Receiver: Integrated, 433.92 MHz
• Housing Material: ABS (Cover), Aluminium (Base)

Recommendations

For optimal performance, ensure the gate is well-maintained and balanced before installation. The kit is designed for sliding gates only; do not use for swing or overhead doors. Professional installation is recommended to comply with local safety regulations.
