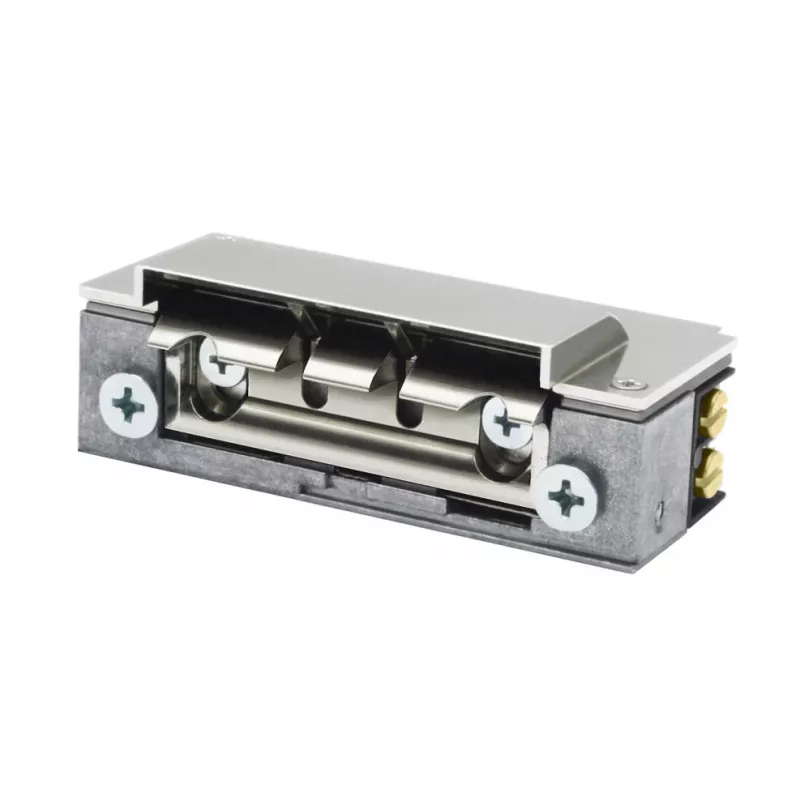

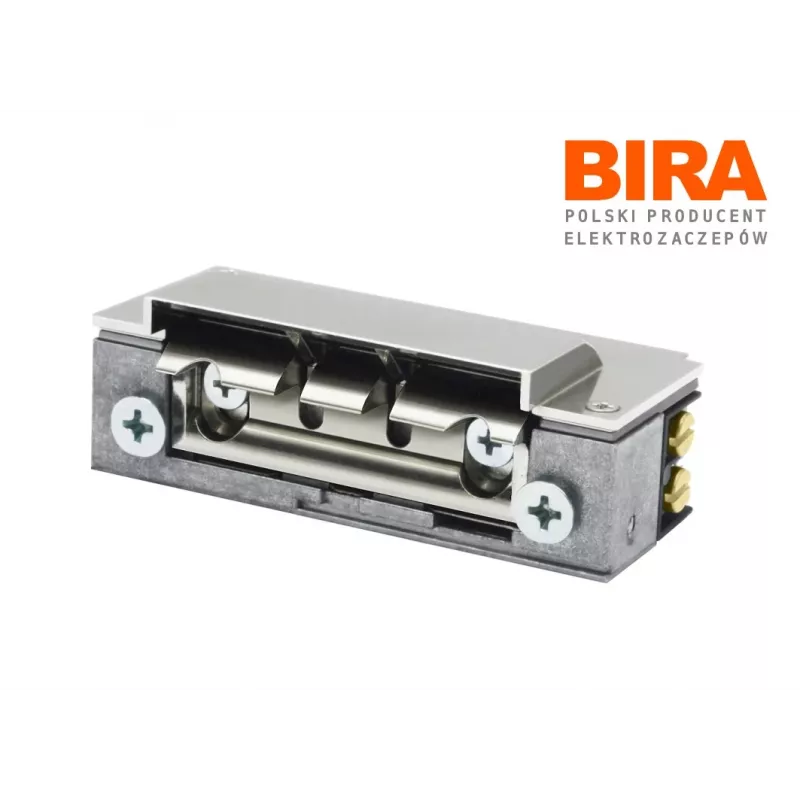

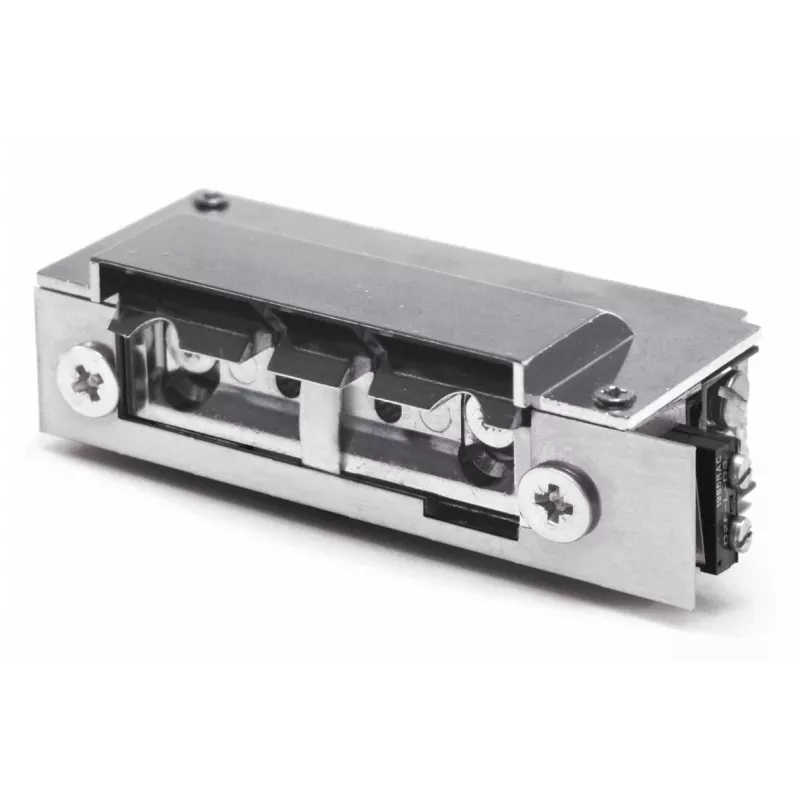

BIRA cerradura eléctrica XS12U-C, serie XS, 12V estándar con función deslizante

Security-conscious facility managers and installers choose the BIRA XS12U-C electric strike to secure entry points in offices, apartment blocks, and commercial buildings. This XS series strike integrates seamlessly with intercom systems and keypad access control, delivering dependable electro-mechanical locking at a true 12V supply.

Key specifications

• Operating voltage: 12V AC/DC
• Operating mode: Fail-secure (standard)
• Holding force: 3000 N (approx. 300 kg)
• Current consumption: 250 mA AC / 300 mA DC
• Durability: 300,000 cycles
• Mounting: Flush mount
• Handing: Reversible (left/right)
• Material: Zinc alloy body, steel latch
• Operating temperature: -10°C to +50°C
• Design: Symmetrical

Why choose it

The XS12U-C offers robust construction with a zinc alloy housing and hardened steel latch, ensuring long-term performance. Its fail-secure operation keeps the door locked in case of power loss, maximising security. The symmetrical design and reversible handing simplify installation on most standard door frames, while both AC and DC compatibility makes it a flexible choice for retrofit projects.

Ideal use cases

• Access control systems with keypads, bio-metric readers, or intercoms
• Intercom-controlled entrance doors in residential and commercial settings
• Interior security doors requiring electric release from a central unit

Good to know

With a holding force of 3000 N, the strike reliably secures doors up to approximately 300 kg. No memory function or monitoring contact is included, keeping wiring simple and making it an excellent choice for budget-conscious yet security-critical installations.
