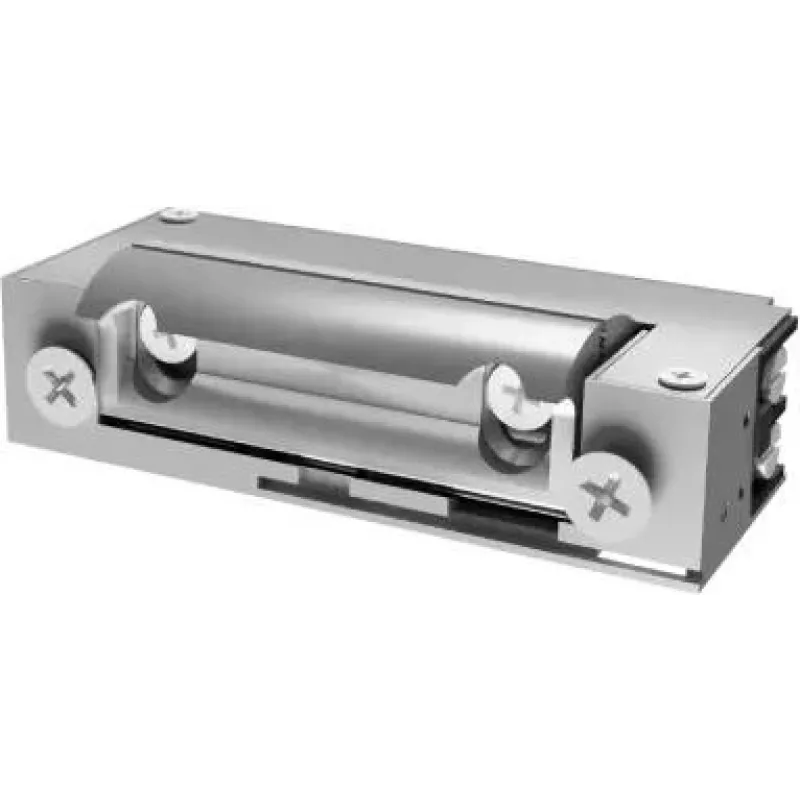

BIRA XS00U HARTTE XS Serie Abrepuertas eléctrico 12-24V AC/DC bajo consumo

Electric door strike from the HARTTE XS series, model XS00U, operating on 12-24V AC/DC with low current consumption. Designed for access control systems and intercoms, it provides secure door locking with a holding force of 3000 N. The symmetrical design allows installation on left or right-hand doors, and the recessed mounting suits standard mortise locks.

Advantages

Low current draw reduces power supply load, while the wide voltage range (12-24V AC/DC) ensures compatibility with various systems. The zinc alloy body offers durability, and the universal mounting position simplifies installation.

Suitable for

• Access control systems
• Intercom systems
• Doors with standard mortise locks

Key specifications

• Operating voltage: 12-24V AC/DC
• Holding force: 3000 N
• Low current consumption: 280 mA at 12V DC, 125 mA at 24V AC
• Durability: 200,000 cycles
• Operating temperature: -20°C to +50°C
• Housing material: zinc alloy
• Installation: recessed, universal (left/right)

Recommendations

Ideal for securing doors in offices, residential buildings, and commercial premises where reliable electric locking is required.
