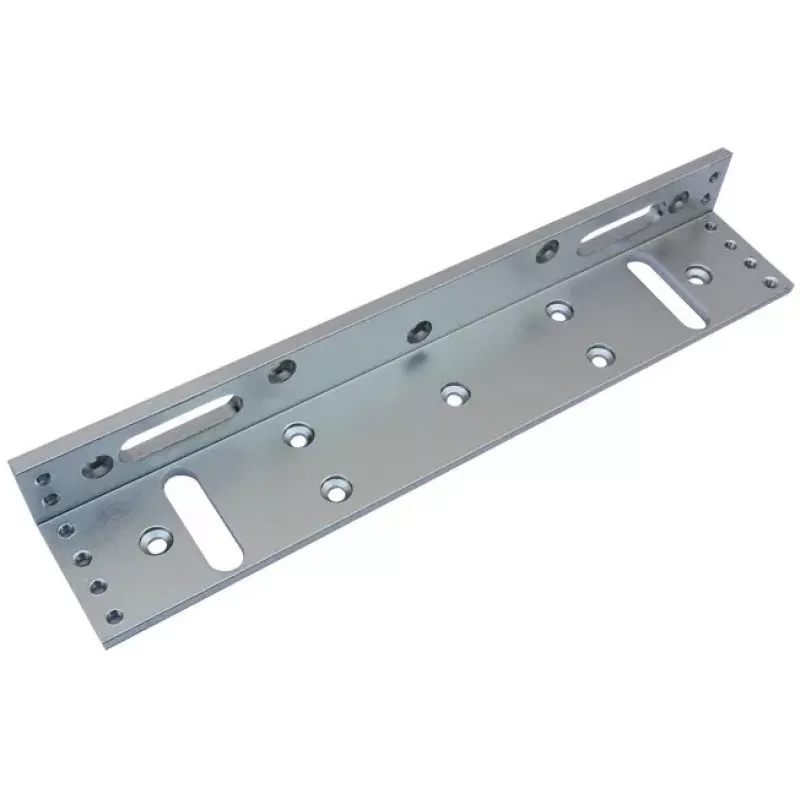

BIRA HARTTE MG350L Soporte de pared tipo L 350mm

The BIRA HARTTE MG350L is a robust L-type wall mount bracket designed for secure installation of antennas and small satellite dishes. Made from hot-dip galvanized steel, it offers excellent corrosion resistance and durability for outdoor use. With a horizontal arm length of 350 mm and a vertical height of 250 mm, it provides optimal positioning for DVB-T, Wi-Fi, LTE antennas, and CCTV cameras. The bracket fits masts and pipes up to 38 mm in diameter and features a 100x100 mm wall plate with four mounting holes for stable attachment.

Advantages

Hot-dip galvanized steel construction ensures long-lasting rust resistance. The L-type design allows for flexible antenna placement. Suitable for various applications including DVB-T, Wi-Fi, LTE, and small satellite dishes. Easy to install on walls or facades.

Suitable for

• DVB-T antennas
• Wi-Fi antennas
• LTE antennas
• Small satellite dishes
• CCTV cameras

Key specifications

• Bracket Type: L-Type
• Mounting Type: Wall Mount
• Material: Steel
• Corrosion Protection: Hot-dip Galvanized
• Finish: Galvanized
• Arm Length (Horizontal Projection): 350 mm
• Vertical Arm Height: 250 mm
• Mounting Pipe Diameter: 38 mm
• Wall Plate Dimensions: 100 x 100 mm
• Number of Wall Mounting Holes: 4
• Color: Silver (Metallic)
• Durability: Weather-resistant, Rust-resistant
• Mounting Hardware Included: No

Recommendations

For optimal performance, ensure the wall surface is solid and capable of supporting the weight. Use appropriate screws and anchors (not included) for installation. This bracket is ideal for professional installers and DIY enthusiasts seeking a reliable mounting solution.
