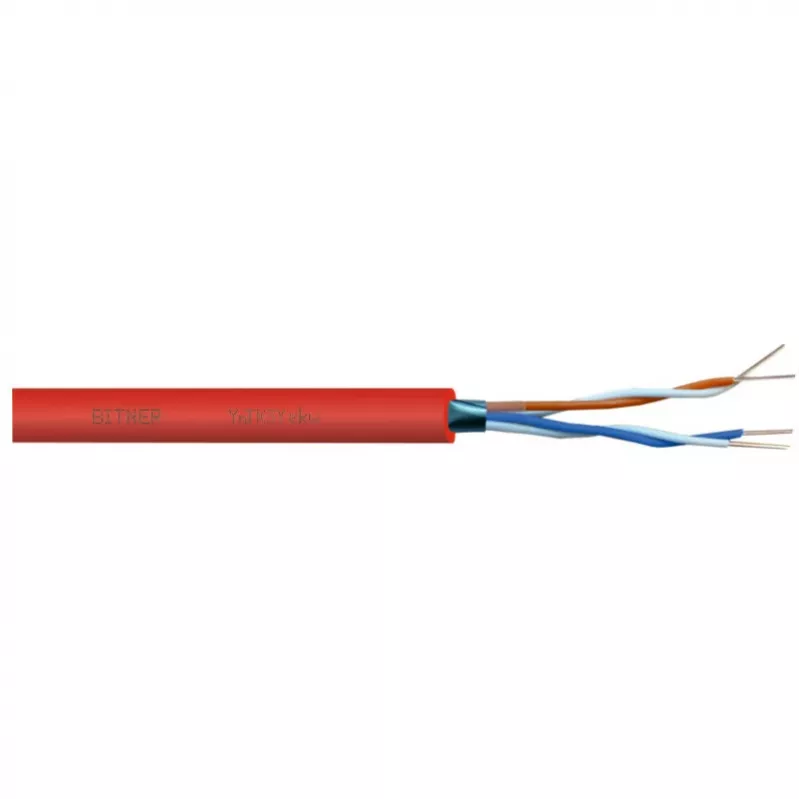

BITNER YnTKSYekw cable de detección de incendios 1x2x0,8 mm – 100 m gris

The BITNER YnTKSYekw Fire Alarm Cable 1x2x0.8 mm - 100 m Grey is a specialized cable designed for fire alarm and safety systems. It is used for connecting telephone station and teletransmission devices, as well as for data transmission via analog and digital signals in fire control and signaling installations. The cable is primarily used as transmission and power supply paths for line devices (sensors, line modules) in fire detection systems, autonomous extinguishing and smoke exhaust control systems.

Key features

• Electrostatically shielded to protect the transmission path from external electric fields
• Intended for use in installations activated at the "0" moment of fire outbreak (moment of fire detection by the detection center)
• Designed for transmission of signals or triggering states to auxiliary devices activated by the fire alarm center (e.g., disconnection of ventilation, bringing elevators to ground floor, power shutdown of the facility)
• Possesses National Technical Assessment and Admission Certificate issued by CNBOP-PIB
• Classified according to PN-EN 50575 (CPR)

Specifications

• Brand: Bitner
• Model: TN0100
• Cable type: YnTKSYekw 1x2x0.8 mm
• Length: 100 m
• Colour: Grey
• Operating voltage: 150 V
