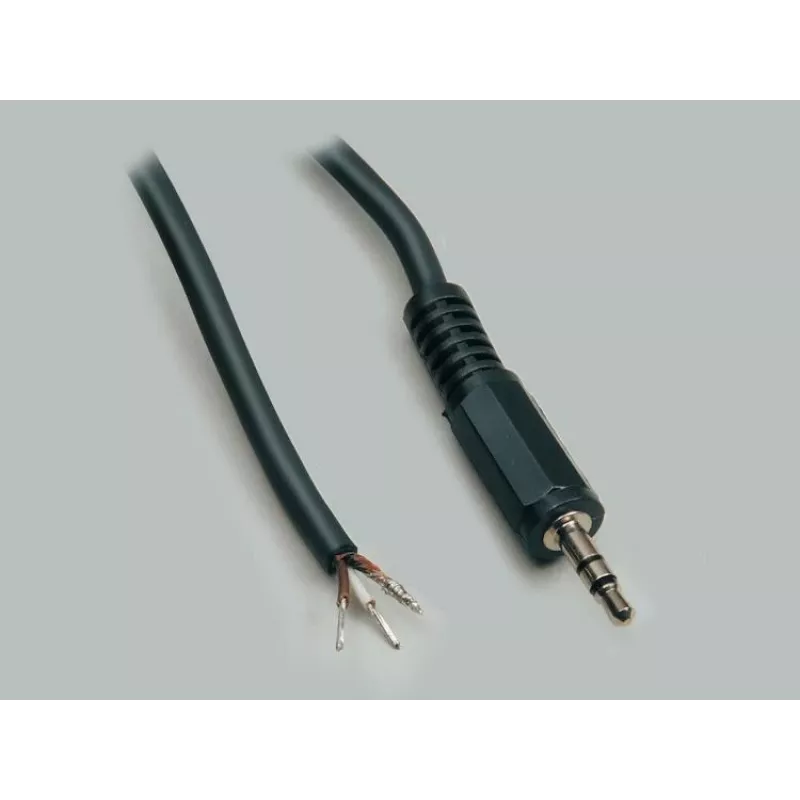

BKL Electronic 1101052 conector jack estéreo de 3,5 mm, 3 polos, metal, conexión por soldadura, 1 ud.

Audio technicians and DIY enthusiasts often need a reliable connector for repairing or building stereo cables. The BKL Electronic 1101052 is a 3.5 mm stereo jack plug with a 3-pole (TRS) configuration, designed for soldering to audio cables. Its metal housing and nickel-plated contacts ensure a durable connection for headphones, audio interfaces, and other stereo equipment.

Key specifications

• Connector type: Audio jack plug
• Connector size: 3.5 mm
• Audio configuration: Stereo
• Number of poles: 3-pole (TRS)
• Connector gender: Male
• Connector orientation: Straight
• Mounting type: Cable mount
• Termination method: Solder
• Housing material: Metal
• Contact plating: Nickel
• Maximum cable diameter: 4 mm
• Insulation material: Plastic
• Colour: Silver (housing)
• Packaging quantity: 1 piece

Why choose it

The metal housing provides robust protection, while the nickel-plated contacts resist corrosion and ensure reliable signal transmission. Soldering allows for a secure, permanent connection that is ideal for custom cable assemblies or repairs.

Ideal use cases

• Repairing headphone cables
• Building custom audio cables
• Connecting portable audio devices
• DIY electronics projects

Good to know

This connector is sold individually. It is suitable for cables with a maximum diameter of 4 mm.
