Bloque de agua Thermaltake Pacific W7 Plus

The Thermaltake Pacific W7 Plus is a copper-base CPU water block with a 0.15 mm internal micro-fin construction, anti-corrosive nickel plating and a built-in temperature sensor for monitoring coolant temperature. Designed for high-standard cooling performance, it supports Intel and AMD universal brackets including Intel LGA 1200 and is compatible with a wide range of processor sockets. The block includes onboard addressable RGB lighting controllable via TT RGB Plus software and can be synchronized with other compatible components.

Advantages

The Pacific W7 Plus features a mirror-finish copper base with nickel plating that improves heat transfer while providing corrosion resistance. Its high-density 0.15 mm micro-fin structure increases surface area for efficient thermal dissipation. Twelve high-lumen addressable LEDs embedded in a transparent upper cover deliver vivid RGB illumination controllable through TT RGB Plus; a digital lighting controller with DIP switches allows easy assignment and expansion of lighting devices.

Suitable for

• Custom liquid-cooling loops for desktop PCs
• High-performance Intel and AMD CPU cooling
• Builders seeking RGB-synchronized components in a water-cooled system
• Systems requiring a compact, maintenance-free CPU water block

Key specifications

• Type: Water block
• Base material: Copper with anti-corrosive nickel plating
• Micro-fin pitch: 0.15 mm
• Lighting: 12 addressable high-lumen LEDs, TT RGB Plus compatible (16.8 million colors)

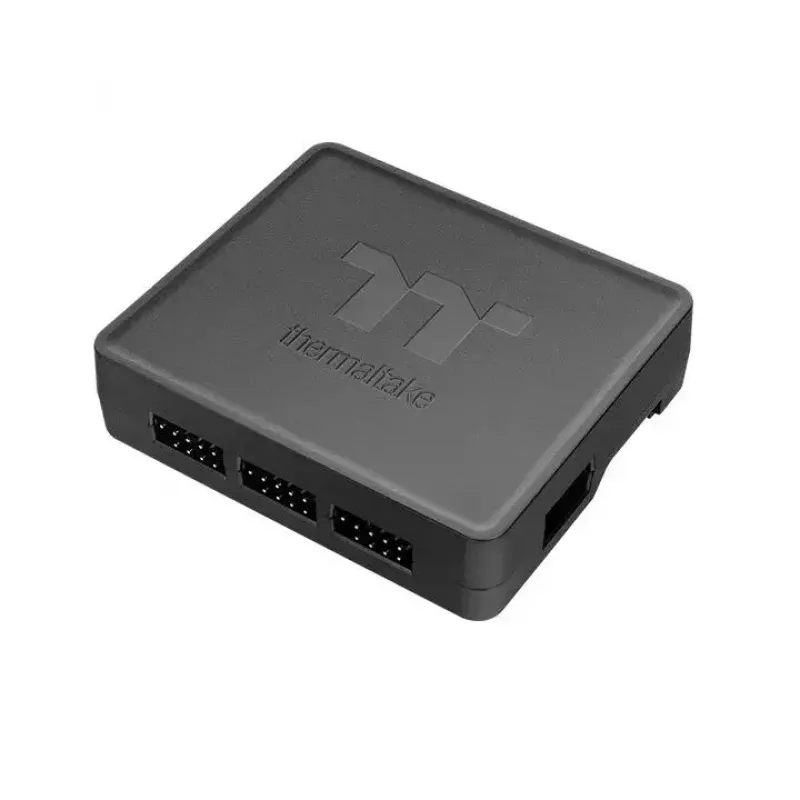

• Lighting control: Digital controller with DIP switch; up to 5 devices per controller and up to 16 controllers in software
• Built-in temperature sensor
• Weight: 0.67 kg
• Supported sockets: LGA 2066, LGA 1200, LGA 1150/1151/1155/1156, LGA 2011/2011-v3, LGA 1366, LGA 775, Socket AM4, AM3+, AM3, AM2+, AM2, FM2, FM1
• Manufacturer MPN: CL-W279-CU00SW-A
• EAN: 4713227524070

How to use

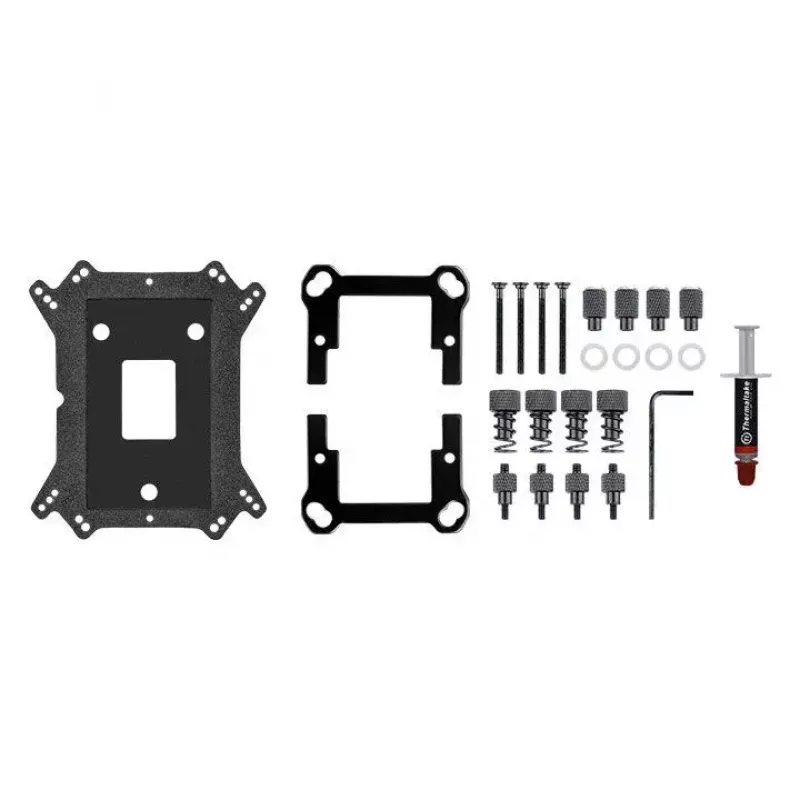

Install the Pacific W7 Plus into your custom water-cooling loop following the included mounting instructions for Intel or AMD brackets. Attach inlet and outlet tubing to your loop’s fittings, secure the block onto the CPU with the appropriate bracket and torque, and connect the lighting cable to a TT RGB Plus-compatible header or the included digital lighting controller. Calibrate or monitor the built-in temperature sensor using your preferred monitoring software or the motherboard utilities that read the sensor output.

Recommendations

Use corrosion-inhibiting coolant and ensure proper loop maintenance to preserve the nickel-plated copper base. When adding multiple RGB devices, configure DIP switches on each controller to assign unique IDs before synchronizing via TT RGB Plus software. Verify socket compatibility and mounting hardware before installation.
