Bloque de conexión Rittal 8617.501

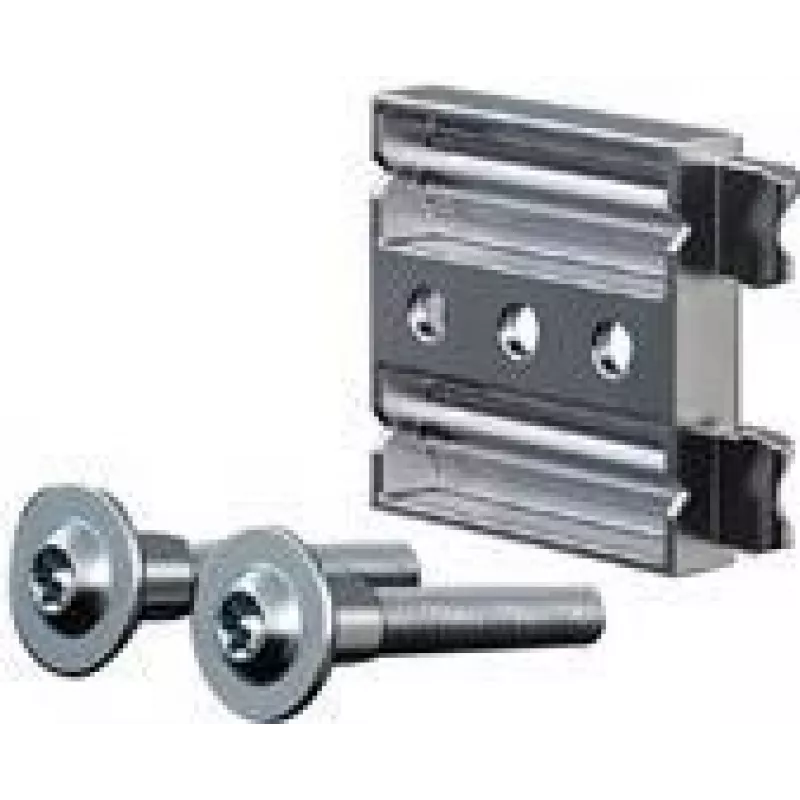

The Rittal 8617.501 baying block is an accessory created to support the stable assembly of server and equipment racks. Housed in a grey zinc material, this single-piece baying block provides a robust connection point between adjacent cabinets and reduces lateral movement within a rack line. Its compact design and weight of approximately 980 g permit straightforward handling during installation and maintenance.

Advantages

The baying block offers corrosion-resistant zinc construction that helps maintain long-term structural integrity in technical rooms. Its standardized dimensions suit typical rack geometries and facilitate repeatable alignment when joining multiple cabinets. The product’s moderate weight balances durability with ease of installation, allowing technicians to position and secure the block without specialized lifting equipment.

Suitable for

Key specifications

How to use

Position the baying block between the mating surfaces of adjacent cabinets so that the mounting points align with the corresponding holes or brackets on each cabinet. Secure the block using appropriate fasteners compatible with the cabinet construction and torque specifications recommended by the cabinet manufacturer. Verify alignment and level of the connected cabinets before fully tightening all fasteners, and recheck after installation to ensure the joined line is stable and free of stress points.

Recommendations

Use matching fasteners and follow cabinet manufacturer guidelines for torque and load limits. For long runs or heavy equipment loads, inspect connections periodically and supplement with additional bracing if required. Store the baying block in a dry environment prior to installation to prevent surface contamination.
