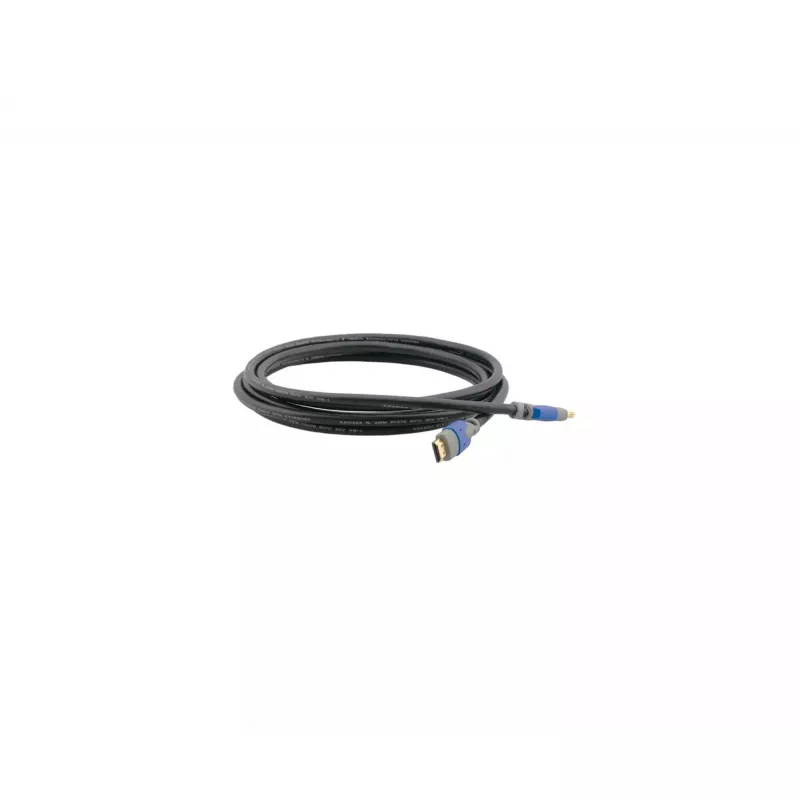

Cable HDMI Kramer Electronics C-HM/HM/PRO-25 7,6 m

The Kramer Electronics C-HM/HM/PRO-25 is a 7.6 m high-speed HDMI cable with Ethernet and HDMI Type A connectors on both ends. It supports a data transfer rate of up to 10.2 Gbit/s and maximum resolution of 1920 x 1080 (Full HD), with gold-plated contacts for improved durability and signal integrity. The cable features K-Lock pull-resistant connectors that provide extra mechanical restraint and is intended for connecting TVs, projectors, Blu-ray players, game consoles and computers to HD or Full HD displays.

Advantages

The cable offers a high data transfer rate up to 10.2 Gbit/s and supports HD resolutions (720p, 1080i, 1080p). It supports deep color depths (24‑, 30‑, 36‑ and 48‑bit) in RGB or YCbCr formats and multi-channel audio streams for external decoding by AV receivers. Gold‑plated connectors resist corrosion and improve connectivity, while the K‑Lock pull‑resistant connectors provide a firm, non‑slip connection with about 15 lbs restraining force. The 7.6 m length provides flexibility for longer runs between source devices and displays.

Suitable for

• Connecting Blu‑ray players, HD DVD players and game consoles to HD/Full HD TVs
• Linking computers or media players to projectors and displays
• Home cinema and surround sound systems requiring multi‑channel audio

Key specifications

• Cable length: 7.6 m
• Connectors: HDMI Type A to HDMI Type A
• Data transfer rate: up to 10.2 Gbit/s
• Maximum supported resolution: 1920 x 1080 (Full HD), supports 720p/1080i/1080p
• Color depth: 24‑bit, 30‑bit, 36‑bit, 48‑bit (RGB or YCbCr)
• Audio: multi‑channel audio support for external decoding
• Connector finish: gold‑plated
• Connector feature: K‑Lock pull‑resistant (approx. 15 lbs restraining force)
• Color: Black

How to use

Connect one HDMI Type A end of the Kramer C-HM/HM/PRO-25 cable to the HDMI output of your source device (for example Blu‑ray player, console or computer) and the other end to the HDMI input of the display or AV receiver. Ensure both devices are powered off when plugging in to avoid signal issues, then power them on and select the corresponding HDMI input on the display or receiver. If using an AV receiver for audio decoding, set the receiver to receive the HDMI audio stream from the connected source.

Recommendations

For best results, use this cable for connections up to 7.6 m between HD sources and Full HD displays. Keep cable runs away from large sources of electromagnetic interference and ensure connectors are fully seated; the gold‑plated contacts and K‑Lock connectors will help maintain a stable connection over time.
