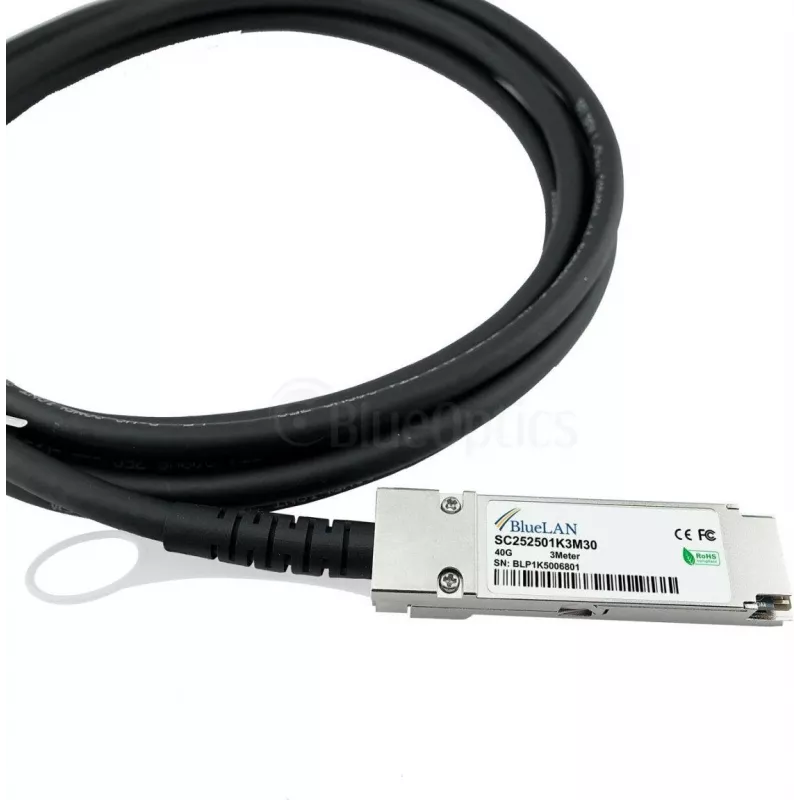

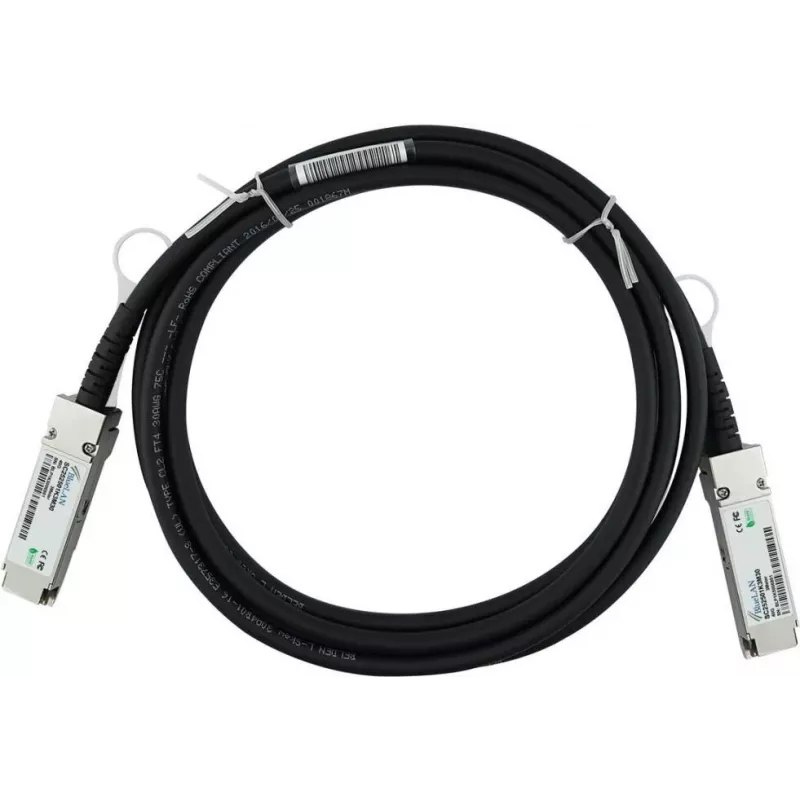

BLUELAN 40G-DACP-QSFP1M-BL Cable Direct Attach Copper QSFP+ 40G compatible con Extreme Networks, 40GBASE-CR4, 1m, Twinax pasivo, PVC

The BLUELAN 40G-DACP-QSFP1M-BL is a high-performance 40G QSFP+ Direct Attach Copper (DAC) cable designed for seamless compatibility with Extreme Networks equipment. This passive twinax cable delivers reliable 40 Gbps connectivity for data center, enterprise networking, and high-performance computing applications. Engineered to meet the 40GBASE-CR4 standard, it offers a cost-effective and low-power solution for short-range interconnects.

Advantages

This DAC cable provides a plug-and-play solution with no configuration required, ensuring quick deployment. Its passive design consumes less than 0.5W, reducing overall power consumption in your network. The 1-meter length is ideal for top-of-rack to server connections, minimizing cable clutter and improving airflow. Built with 26 AWG twinax copper and PVC jacket, it offers durability and flexibility for demanding environments.

Suitable for

• Data center interconnects between switches and servers
• High-performance computing (HPC) clusters
• Enterprise network backbone links
• 40GBASE-CR4 compliant Ethernet networks

Key specifications

• Product Type: Direct Attach Copper (DAC) Cable
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Connector Type: QSFP+ to QSFP+
• Cable Length: 1 Meter (1m)
• Cable Type: Twinax Copper, Passive
• AWG: 26 AWG
• Jacket Material: PVC
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.5W
• Compliance: RoHS, CE, FCC
• Hot Swappable: Yes

Recommendations

For optimal performance, ensure your network equipment supports QSFP+ ports and 40GBASE-CR4 standard. This cable is a direct replacement for Extreme Networks 40G-DACP-QSFP1M and is fully compatible with other 40G QSFP+ switches and adapters. Store in a cool, dry place within the specified temperature range.
