BlueLAN BL292701W3M26 Compatible con Arista CAB-D-8S-200-2.5 Cable DAC breakout pasivo 200GBASE-CR8 QSFP-DD a 8x25GBASE-C 3m

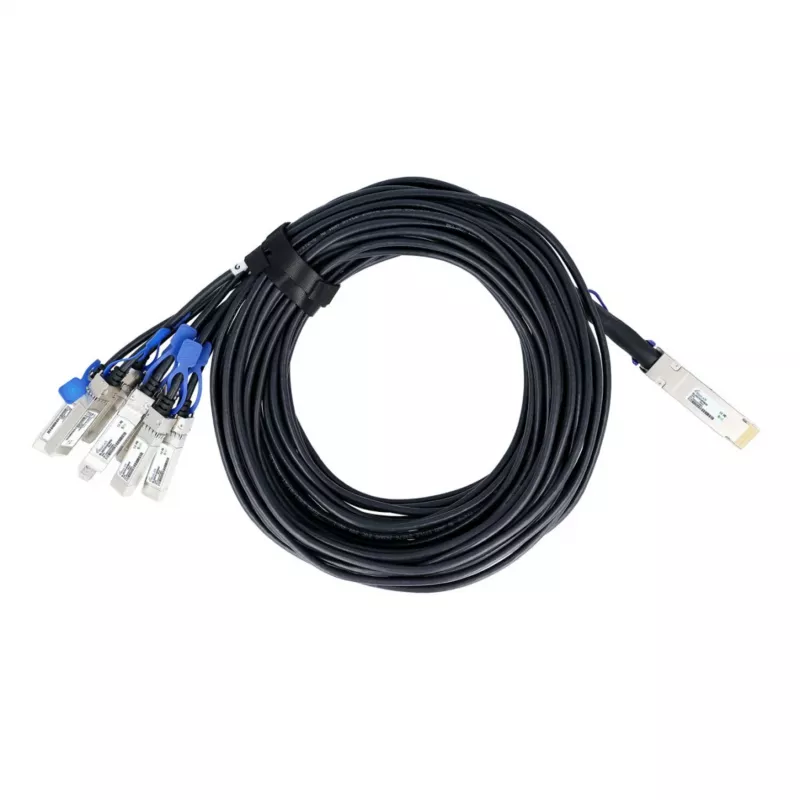

The BlueLAN BL292701W3M26 is a high-performance passive Direct Attach Copper (DAC) breakout cable designed for compatibility with Arista CAB-D-8S-200-2.5. It enables 200GBASE-CR8 connectivity from a QSFP-DD port to eight SFP28 ports, ideal for data center and high-performance computing environments.

Advantages

This cable offers a cost-effective, low-power solution for high-speed interconnects. With a breakout configuration of 1x QSFP-DD to 8x SFP28, it maximizes port utilization and simplifies cable management. The passive design ensures ultra-low latency and reliability.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network aggregation
• Storage area networks

Key specifications

• Data Rate: 200 Gbps
• Ethernet Standard: 200GBASE-CR8
• Cable Type: Direct Attach Copper (DAC) Breakout Cable
• Breakout Configuration: 1x QSFP-DD to 8x SFP28
• Connector A: QSFP-DD
• Connector B: 8x SFP28
• Cable Length: 3 meters
• Compatibility: Arista CAB-D-8S-200-2.5
• Transceiver Type: Passive
• Hot Swappable: Yes
• MSA Compliant: Yes
• Cable Material: Copper
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, ensure both ends of the cable are securely connected and the equipment supports the required standards. This cable is plug-and-play and requires no configuration.
