BlueLAN Cable Direct Attach Breakout QSFP56 200GBASE-CR4 a 2x100GBASE-CR2 QSFP56 Pasivo compatible con Mellanox MCP7H50-V01AR30, 2m, AWG26

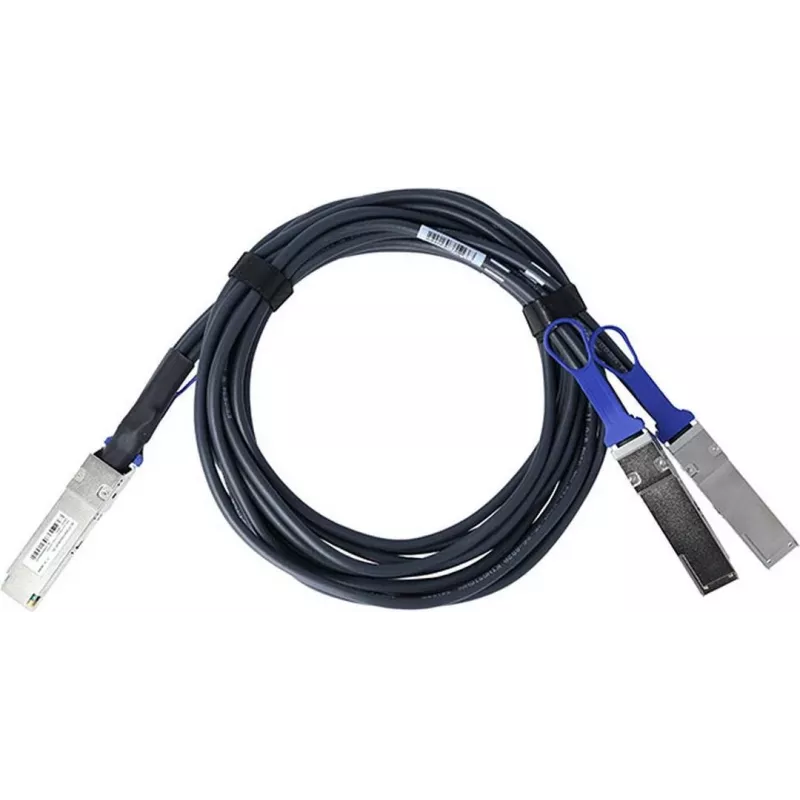

The BlueLAN MCP7H50-V01AR30-BL is a high-performance passive direct attach breakout cable (DAC) designed for compatibility with Mellanox (NVIDIA) networking equipment. It provides a cost-effective and reliable solution for high-speed data center interconnects, converting a single 200 Gbps QSFP56 port into two 100 Gbps QSFP56 ports.

Advantages

This breakout cable offers significant advantages in terms of cost efficiency and space utilization. By using a single cable to split a 200 GbE connection into two 100 GbE links, it reduces the number of required ports and cables, simplifying cable management and lowering overall infrastructure costs. The passive copper design ensures low power consumption and zero latency, making it ideal for high-density environments.

Suitable for

• Data center interconnects requiring high bandwidth
• High-performance computing (HPC) clusters
• Storage area networks (SAN)
• Enterprise networking upgrades to 200G/100G

Key specifications

• Product Type: Direct Attach Breakout Cable (DAC)
• Connector Type: QSFP56 to 2x QSFP56
• Cable Length: 2 meters
• Wire Gauge: AWG26
• Cable Technology: Passive Copper
• Data Rate: 200 Gbps aggregate, 2x 100 Gbps breakout
• Standards: 200GBASE-CR4 (200G side), 100GBASE-CR2 (100G side)
• Compatibility: Mellanox (NVIDIA) MCP7H50-V01AR30
• Hot Swappable: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both the switch and the connected devices support the required data rates and standards. This cable is ideal for short-distance interconnects within racks or between adjacent racks.
