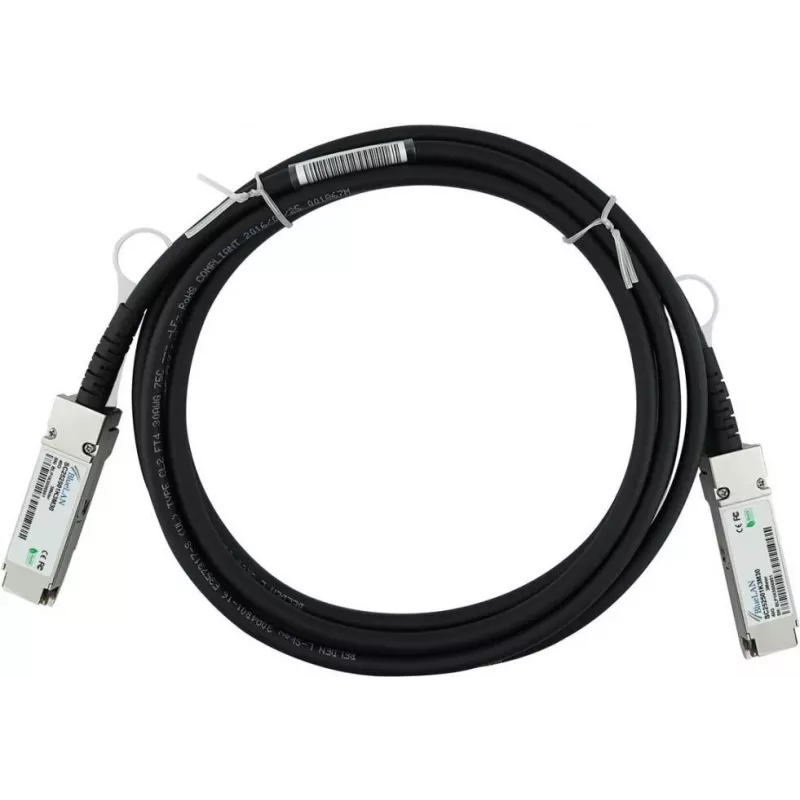

BlueLAN Cable Direct Attach QSFP Compatible Dell 470-AAIB, 40GBASE-CR4, 28AWG, 5 m

The BlueLAN 470-AAIB-BL is a high-performance QSFP direct attach cable (DAC) designed for compatibility with Dell networking equipment. It supports 40GBASE-CR4 for Ethernet and QDR for InfiniBand, providing reliable, low-latency connectivity for data centers and enterprise networks. With 28AWG construction and a 5-meter length, this passive copper cable offers a cost-effective solution for short-range high-speed interconnects.

Advantages

This cable ensures seamless integration with Dell switches and servers, delivering full 40 Gbps throughput. Its passive design consumes no power, reducing overall energy costs. The robust build minimizes signal loss and ensures long-term durability.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network backbone links
• InfiniBand QDR environments

Key specifications

• Connector type: QSFP+ to QSFP+
• Data rate: 40 Gbps
• Cable length: 5 meters
• Wire gauge: 28 AWG
• Protocol support: 40GBASE-CR4, InfiniBand QDR
• Compatibility: Dell 470-AAIB compatible

Recommendations

For optimal performance, pair this cable with compatible Dell QSFP+ ports. Ensure proper cable management to avoid bending beyond the minimum bend radius. This product is an ideal choice for cost-conscious deployments requiring reliable 40G connectivity.
