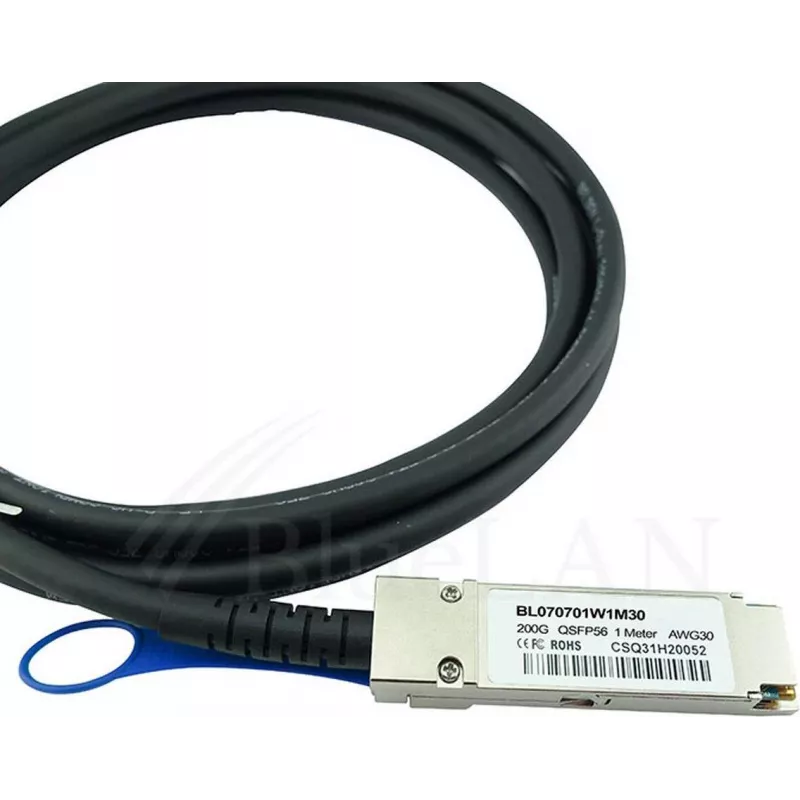

BLUELAN Cable Direct Attach QSFP56 compatible con Mellanox MCP1650-H001E30, 200GBASE-CR4, InfiniBand, 30AWG, 1 metro (MCP1650-H001E30-BL)

The BLUELAN MCP1650-H001E30-BL is a high-performance, compatible direct attach copper (DAC) cable designed for Mellanox (NVIDIA Mellanox) systems. It delivers 200 Gbps data rate over a 1-meter length, supporting 200GBASE-CR4 Ethernet and InfiniBand HDR protocols. This passive twinax cable is ideal for data center interconnects and high-performance computing environments.

Advantages

Cost-effective alternative to OEM cables with identical performance. Passive design ensures ultra-low power consumption and zero latency. Hot-swappable QSFP56 connectors simplify installation and maintenance. RoHS compliant for environmental safety.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Network storage systems
• InfiniBand HDR fabrics

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Connectors: QSFP56 to QSFP56
• Data Rate: 200 Gbps
• Ethernet Standard: 200GBASE-CR4
• Protocol: Ethernet, InfiniBand
• Length: 1 Meter
• Wire Gauge: 30 AWG
• Cable Material: Copper Twinax
• Design: Passive
• Compatibility: Mellanox (NVIDIA Mellanox) Systems
• Equivalent OEM Part Number: Mellanox MCP1650-H001E30
• Hot-Swappable: Yes
• Number of Lanes: 4
• Compliance: RoHS Compliant
• Jacket Material: PVC

Recommendations

For optimal performance, use with compatible Mellanox switches and adapters. Ensure proper handling to avoid damage to connectors. This cable is a direct replacement for the original Mellanox MCP1650-H001E30.
