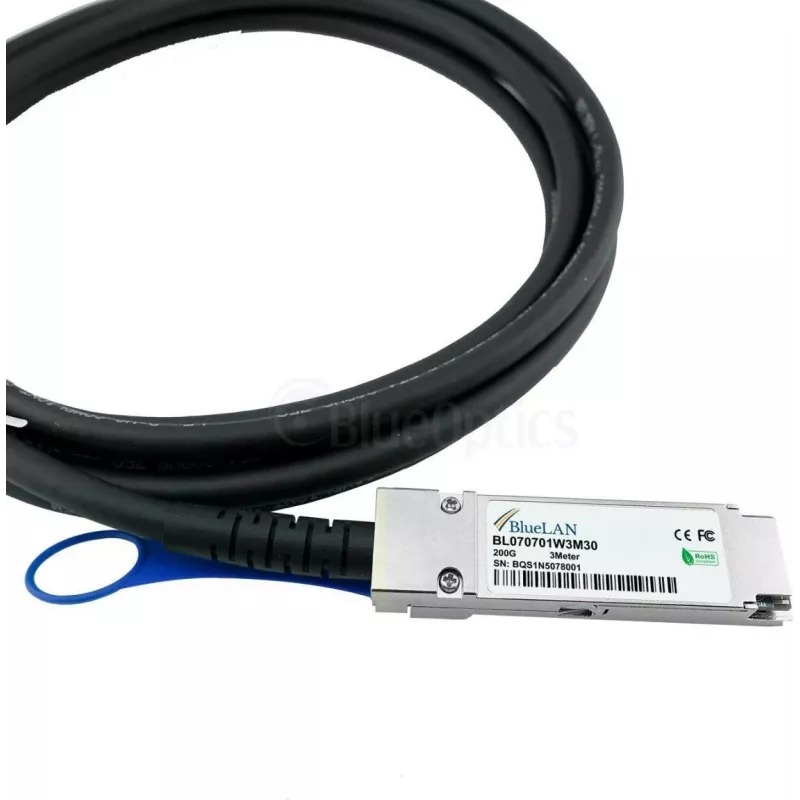

BLUELAN Cable Direct Attach QSFP56 compatible con Mellanox MCP1650-H02AE26, 200GBASE-CR4, InfiniBand, 30AWG, 3 metros MCP1650-H02AE26-BL

In high-density data centers and HPC clusters, network engineers often need a reliable, high-speed link between switches and servers. The BLUELAN compatible Mellanox MCP1650-H02AE26 QSFP56 Direct Attach Cable delivers 200Gbps connectivity over a 3-meter passive copper assembly. It is engineered for short-reach interconnects where latency and power consumption must be kept to a minimum.

Key specifications

• Cable type: Direct Attach Cable (DAC)
• Connectors: QSFP56 to QSFP56
• Data rate: 200 Gbps
• Ethernet standard: 200GBASE-CR4
• Protocol support: InfiniBand, Ethernet
• Length: 3 meters
• Wire gauge: 30 AWG
• Material: Copper
• Passive (no signal amplification)
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Voltage: 3.3V from host
• Hot-pluggable: Yes

Why choose it

Passive copper DACs are the most cost-effective solution for short 200G links. They consume less power than active optical cables and introduce no additional latency. This cable is fully compatible with Mellanox MCP1650-H02AE26, making it a drop-in replacement for original equipment in existing deployments.

Ideal use cases

• Top-of-rack (ToR) switch to server connections in data centers
• High-performance computing (HPC) cluster interconnects
• Enterprise network aggregation links
• Storage area networks (SAN) requiring high bandwidth

Good to know

The 30 AWG wire gauge balances flexibility and signal integrity for a 3-meter reach. With an operating range of 0°C to 70°C, it suits most controlled data center environments. The cable is hot-pluggable, allowing for easy installation and maintenance without powering down the connected devices.
