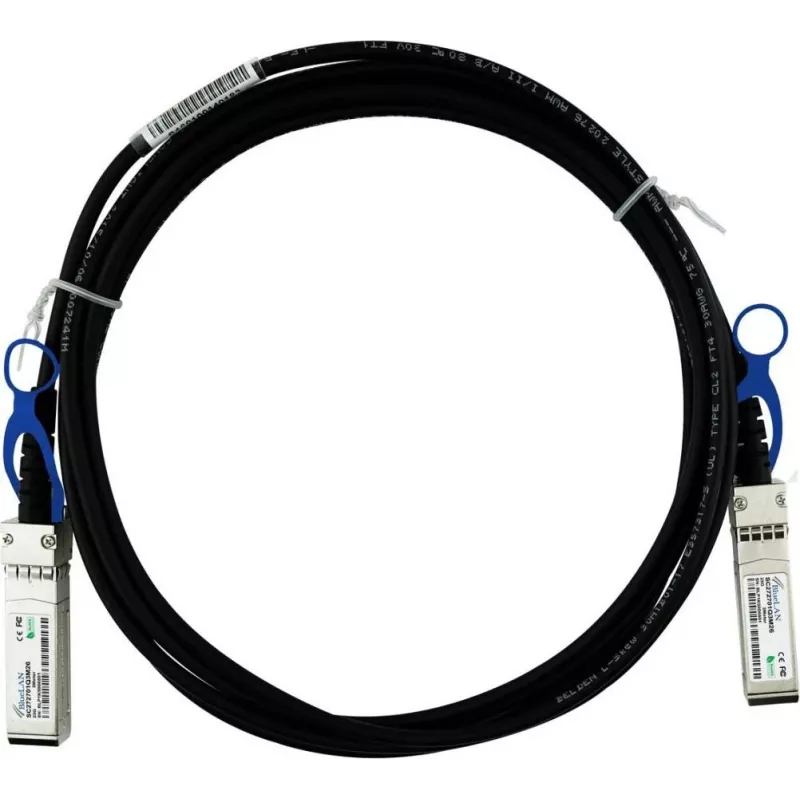

BlueLAN Cable Direct Attach SFP28 25GBASE-CR pasivo, 0,5m, AWG30, compatible con NVIDIA 980-9I63W-00A00A

The BlueLAN 25GBASE-CR Passive SFP28 Direct Attach Cable (DAC) is a high-performance, cost-effective solution for short-range 25 Gigabit Ethernet connections. Designed for compatibility with NVIDIA 980-9I63W-00A00A interfaces, this passive copper cable delivers reliable, low-latency data transmission in data center and enterprise networks.

Advantages

This DAC cable offers a plug-and-play solution without the need for external power, reducing power consumption and simplifying deployment. Its passive design ensures minimal signal loss and high signal integrity over short distances, making it ideal for top-of-rack and server-to-switch connections.

Suitable for

• Data center interconnects
• Server-to-switch links
• Rack-to-rack connections
• High-performance computing environments

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Passive Copper
• Data Rate: 25 Gbps
• Standard: 25GBASE-CR
• Connector Type (End A): SFP28
• Connector Type (End B): SFP28
• Cable Length: 0.5 Meter (50 cm)
• Wire Gauge: AWG30
• Compatibility: NVIDIA 980-9I63W-00A00A
• Hot-Pluggable: Yes
• Impedance: 100 Ohm
• Power Consumption: < 0.1 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Conductor Material: Copper
• Voltage Supply: 3.3V (from host SFP28 port)

Recommendations

For optimal performance, use this cable with compatible SFP28 ports on NVIDIA switches and adapters. Ensure proper handling to avoid damage to connectors.
