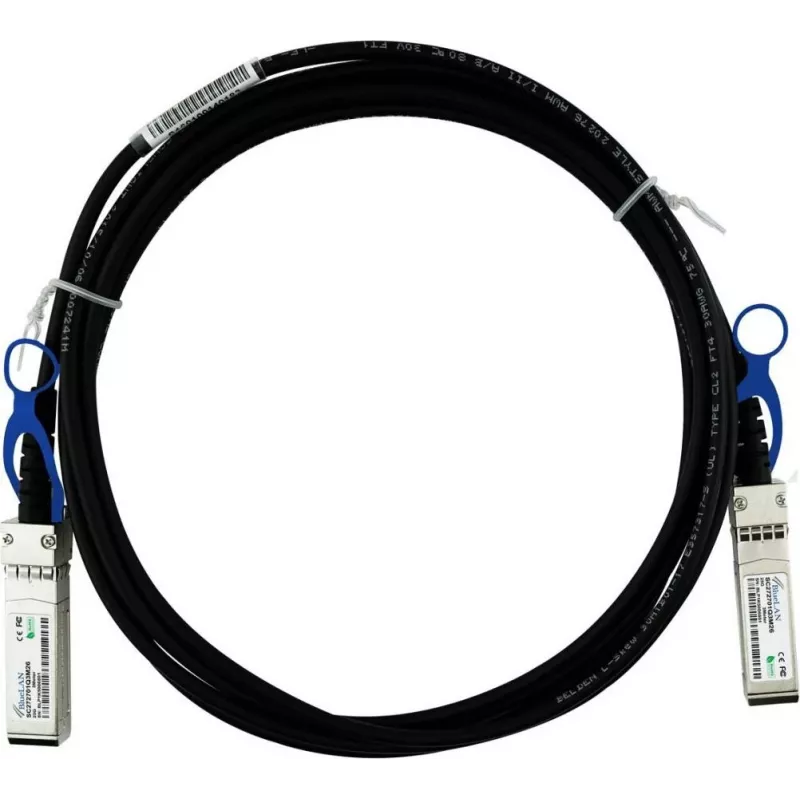

BlueLAN Cable Direct Attach SFP28 25GBASE-CR pasivo compatible con NVIDIA MCP2M00-A002E26N, 2m, AWG30

The BlueLAN MCP2M00-A002E26N-BL is a high-performance passive Direct Attach Cable (DAC) designed for 25 Gigabit Ethernet connectivity. This SFP28 to SFP28 cable is fully compatible with NVIDIA MCP2M00-A002E26N and offers reliable, low-latency connections for data centers and high-performance computing environments.

Advantages

Passive copper twinax design ensures ultra-low power consumption and cost-effective short-range links. Hot-swappable SFP28 connectors enable easy installation and maintenance without network downtime. The cable is compliant with RoHS, CE, and FCC standards, guaranteeing safety and environmental responsibility.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Network storage systems
• 25GBASE-CR compliant networks

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Passive Copper Twinax
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR
• Connector Type (End A): SFP28
• Connector Type (End B): SFP28
• Cable Length: 2 Meter
• Wire Gauge: AWG30
• Impedance: 100 Ohm
• Power Consumption: Passive (Ultra-low)
• Hot Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: RoHS Compliant, CE, FCC

Recommendations

For optimal performance, use this cable with compatible SFP28 ports on switches, servers, and storage devices. Ensure proper handling to avoid damage to the connectors.
