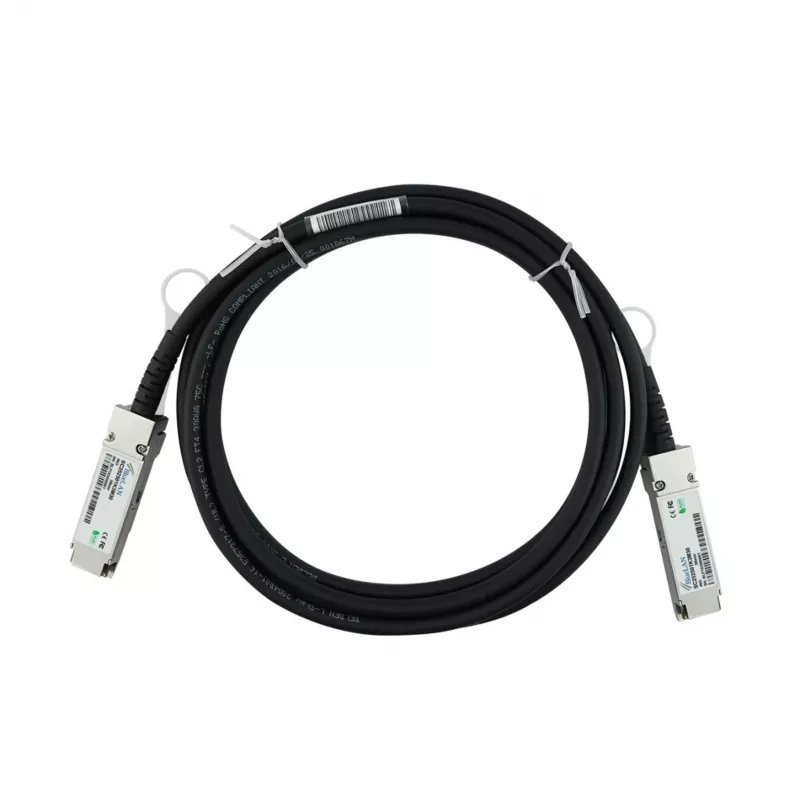

BlueLAN Lenovo Mellanox ARZB Cable Direct Attach QSFP compatible, 40GBASE-CR4, 1m

The BlueLAN ARZB-BL is a high-performance QSFP direct attach copper cable designed for 40GBASE-CR4 Ethernet and InfiniBand QDR applications. This 1-meter cable provides a cost-effective, low-latency solution for short-range interconnects within data centers and high-performance computing environments.

Advantages

Fully compatible with Lenovo and Mellanox equipment, this passive copper cable offers reliable 40 Gbps connectivity with minimal power consumption. The 30AWG construction ensures flexibility and easy cable management.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Storage area networks
• Enterprise network aggregation

Key specifications

• Connector type: QSFP+ to QSFP+
• Data rate: 40 Gbps
• Cable length: 1 meter
• Wire gauge: 30 AWG
• Protocol support: 40GBASE-CR4, InfiniBand QDR
• Compatible with Lenovo and Mellanox ARZB series

Recommendations

For optimal performance, ensure your switch and NIC ports support 40GBASE-CR4 or InfiniBand QDR. This cable is ideal for short-reach, high-bandwidth links within a single rack or adjacent racks.
