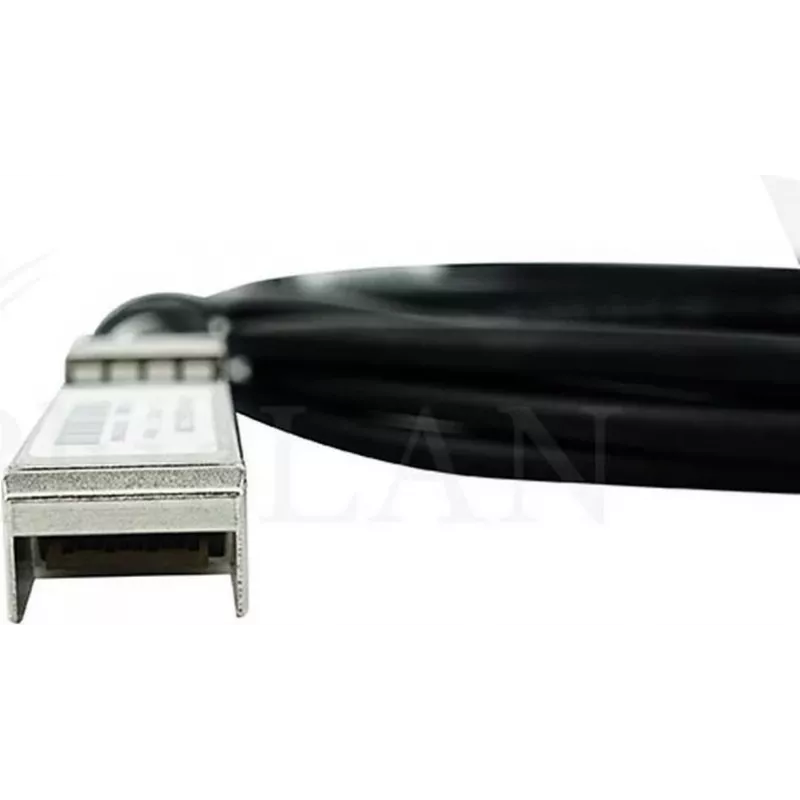

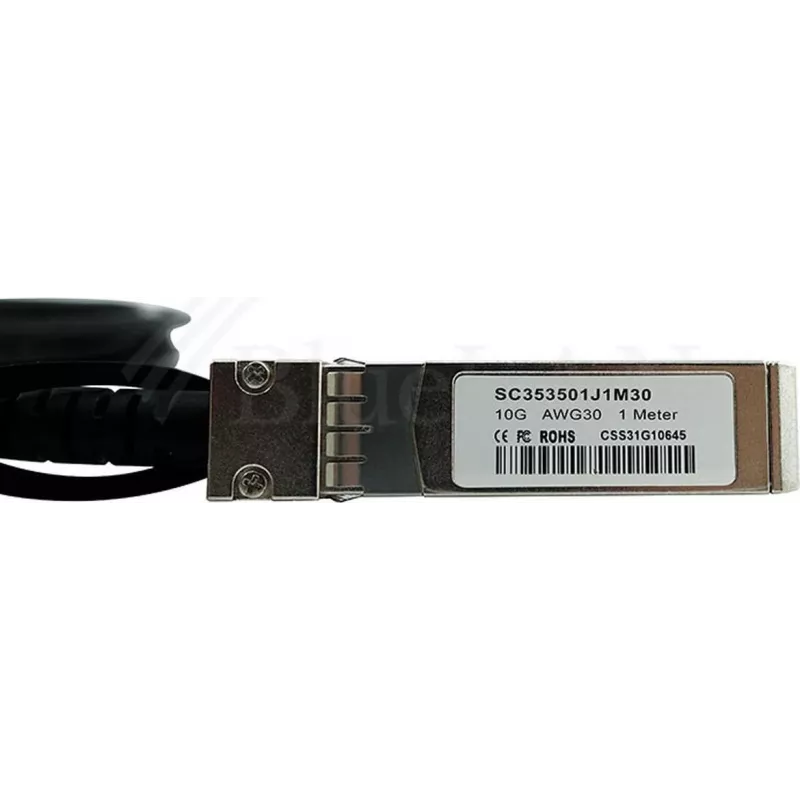

BlueLAN PSF1PXA3M-BL Cable Direct Attach SFP+ pasivo 10GBASE-CR, 3m, AWG30, azul

Experience 10 Gbps data transfer with the BlueLAN PSF1PXA3M-BL, a passive SFP+ to SFP+ direct attach cable engineered for high-density data center environments. At 3 meters and AWG30, it delivers low-latency copper connectivity with minimal power consumption.

Overview

This cable is a compatible equivalent to the Panduit PSF1PXA3M, fully compliant with the SFP+ MSA. It supports 10GBASE-CR Ethernet, making it ideal for server-to-switch links, storage area networks, and other short-reach 10G interconnects. The blue jacket aids in cable management and identification.

What stands out

• Passive design: no signal amplification, reducing power draw and heat.
• Hot-swappable SFP+ connectors for easy installation and maintenance.
• 100 Ohm impedance ensures signal integrity over the full 3-meter length.
• Operating temperature range from 0°C to 70°C suits typical data center conditions.

Technical details

• Data rate: 10 Gbps
• Ethernet standard: 10GBASE-CR
• Cable type: Copper, passive
• Connectors: SFP+ to SFP+
• Wire gauge: AWG30
• Length: 3 meters
• Impedance: 100 Ohm
• Voltage: 3.3V (via host)
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C

Our verdict

A reliable, cost-effective 10G DAC for short-distance connections, with the quality and compatibility you expect from BlueLAN.
