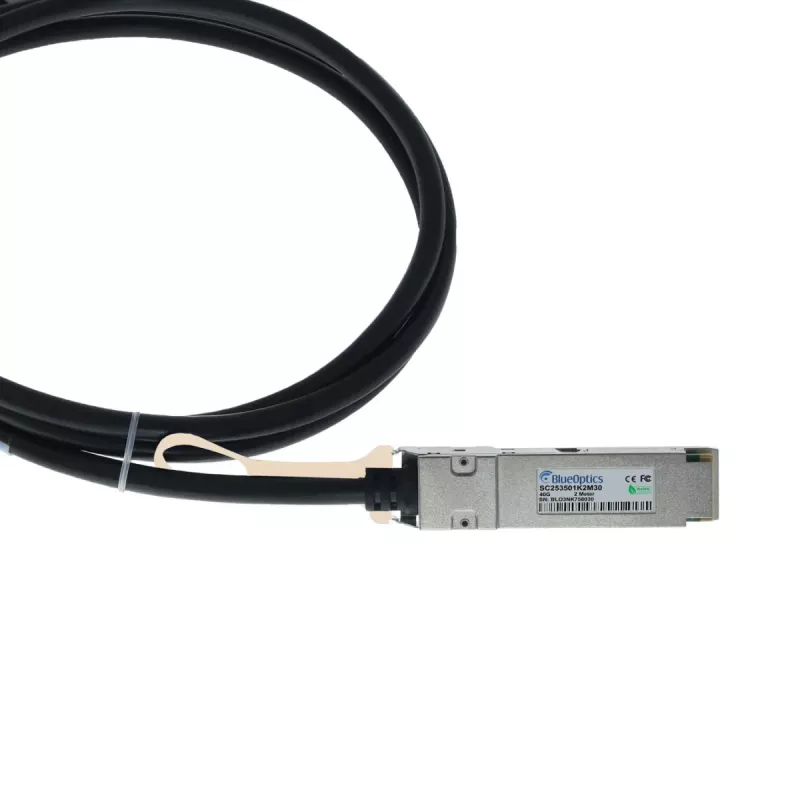

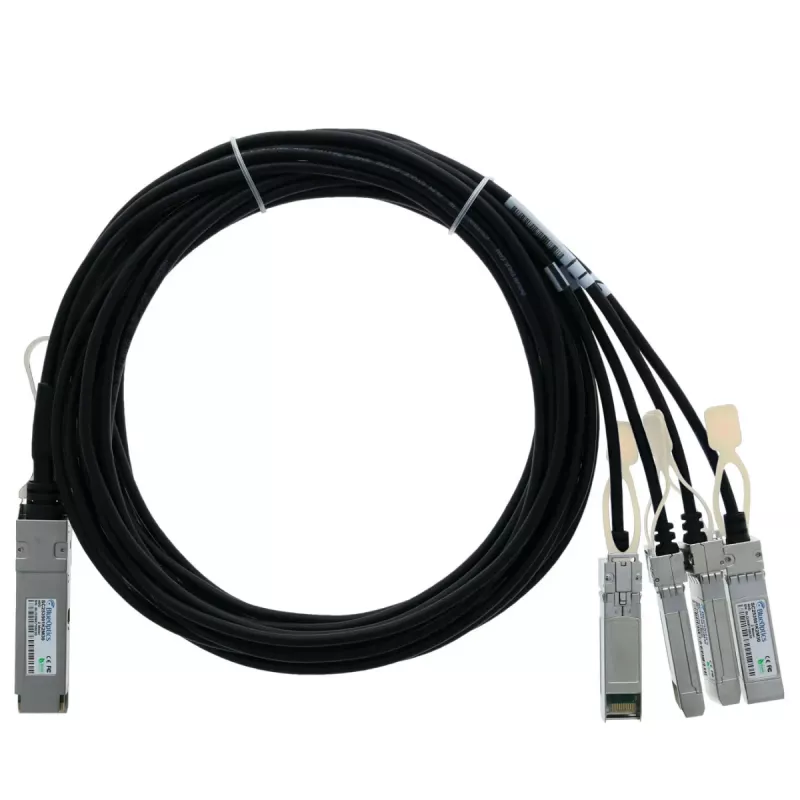

BlueLAN QSFP-4SFP10G-CU2M-BL Cable breakout Direct Attach pasivo compatible con Cisco 40GBASE-CR4 a 4x10GBASE-CR SFP+, 2 m, AWG30

This passive direct attach breakout cable provides a high-density 40G to 4x10G interconnect, splitting a single QSFP port into four independent SFP+ links. It delivers an aggregate bandwidth of 40 Gbps over a 2-meter AWG30 copper assembly, enabling flexible top-of-rack connectivity in data centers and high-performance computing environments.

Advantages

The cable is fully compatible with Cisco QSFP-4SFP10G-CU2M and supports hot-swappable installation, allowing quick deployment without network downtime. Its passive design consumes less than 0.1W, reducing power and cooling costs compared to active optical alternatives. The 100-ohm impedance ensures reliable signal integrity across all four 10G channels.

Suitable for

• Data center rack-to-rack aggregation
• High-performance computing clusters
• Network interconnect between switches and servers
• Environments requiring Cisco-compatible breakout cabling

Key specifications

• Cable type: Direct Attach Breakout Cable (DAC)
• Connector A: QSFP
• Connector B: 4x SFP+
• Data rate: 40 Gbps aggregate (4x 10 Gbps)
• Ethernet standards: 40GBASE-CR4, 10GBASE-CR
• Length: 2 meters
• Wire gauge: AWG30
• Impedance: 100 Ohm
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• RoHS compliant

Recommendations

Ideal for network architects consolidating 40G uplinks into multiple 10G downlinks with a single, cost-effective copper cable. Verify port spacing and airflow before installation in dense racks.
