BLUELAN QSFP-4X10G-C2M-BL Cable breakout Direct Attach pasivo compatible con Alcatel-Lucent 40G QSFP a 4x10G SFP+, 2m

Deliver 40 Gbps of aggregate bandwidth across four 10 Gbps lanes with this passive QSFP to 4x SFP+ direct attach breakout cable. Designed for high-density data center interconnects, it connects a 40GBASE-CR4 QSFP port directly to four 10GBASE-CR SFP+ ports without optical modules.

Overview

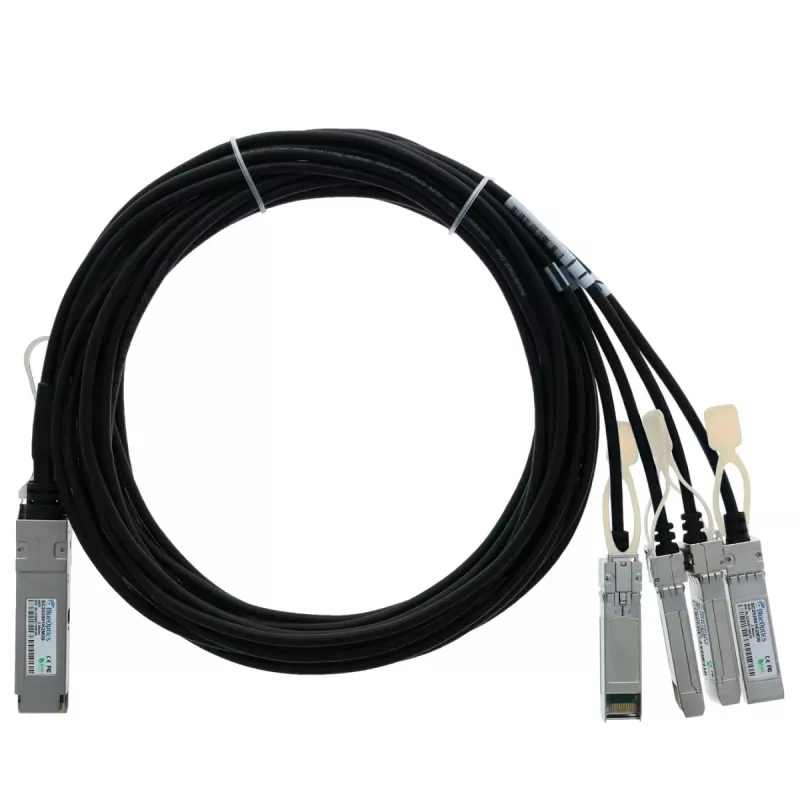

The BLUELAN QSFP-4X10G-C2M-BL is a 2-meter passive copper twinax breakout cable compatible with Alcatel-Lucent equipment. It features a QSFP connector on one end and four SFP+ connectors on the other, using AWG30 wire for flexible routing. Passive design means negligible power consumption and no additional electronics, making it a cost-effective solution for short-reach, high-speed links.

What stands out

• Aggregate data rate of 40 Gbps (4 × 10 Gbps)
• Passive copper twinax cable – no power required
• 2-meter length with AWG30 wire gauge for easy cable management
• Hot-pluggable QSFP and SFP+ connectors
• Compatible with Alcatel-Lucent OEM part number QSFP-4X10G-C2M

Technical details

• Product type: Direct Attach Breakout Cable (DAC)
• Cable type: Passive copper twinax
• Connector A: QSFP (Quad Small Form-factor Pluggable)
• Connector B: 4× SFP+ (Small Form-factor Pluggable Plus)
• Standard (QSFP end): 40GBASE-CR4
• Standard (SFP+ end): 10GBASE-CR
• Jacket material: PVC

Our verdict

A reliable, plug-and-play breakout cable for Alcatel-Lucent environments where short 40G-to-10G fan-out is needed. The passive design ensures low latency and zero power draw, while the 2-meter length suits top-of-rack to adjacent server connections.
