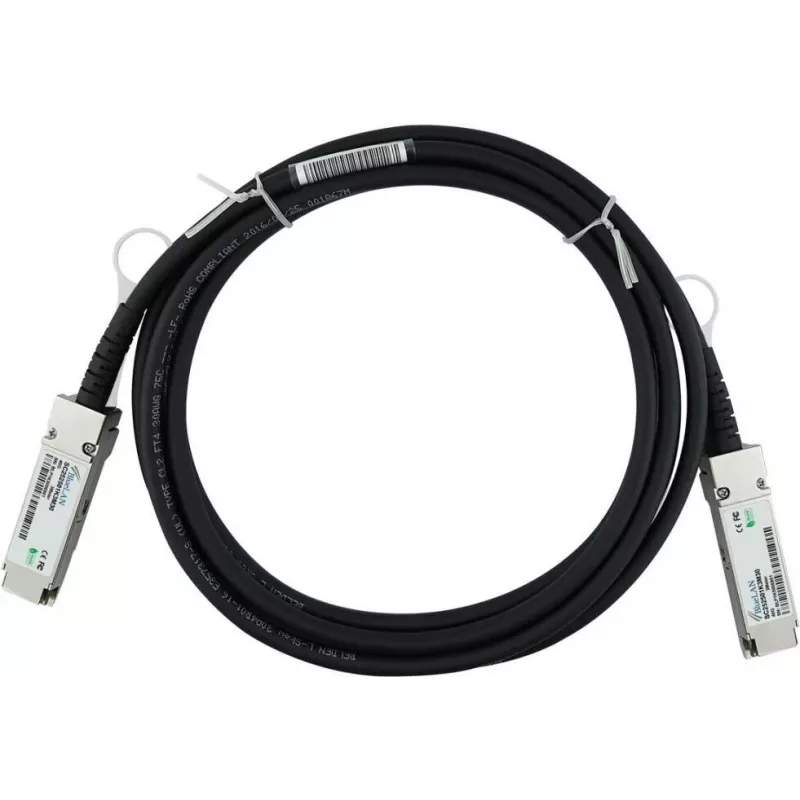

BlueLAN QSFP+ Direct Attach Cable, 40GBASE-CR4, 30AWG, 0,5 m (50 cm) - compatible con Fortinet

The BlueLAN SP-CABLE-FS-QSFP+50CM-BL is a high-performance QSFP+ Direct Attach Copper (DAC) cable designed for 40 Gigabit Ethernet connectivity. This passive twinax cable provides a cost-effective and low-power solution for short-range interconnects in data centers, enterprise networks, and high-performance computing environments. It is compatible with Fortinet equipment and complies with SFF-8436 MSA standards.

Advantages

This DAC cable offers reliable 40 Gbps data transmission over a 0.5 meter length, with low power consumption and hot-swappable capability. The 30 AWG copper construction ensures signal integrity and durability. It is an ideal choice for connecting switches, routers, and servers within a rack or adjacent racks.

Suitable for

• Data center top-of-rack and end-of-row connections
• Enterprise network aggregation
• High-performance computing clusters
• Fortinet networking equipment

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Length: 0.5 Meter (50 cm)
• Wire Gauge: 30 AWG
• Transceiver Type: Passive
• Form Factor: QSFP+
• Hot Swappable: Yes
• MSA Compliance: SFF-8436
• Cable Material: Copper

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP+ ports. This cable is designed for short-distance links and should not be used for long-haul applications. Always handle with care to avoid damage to the connectors.
