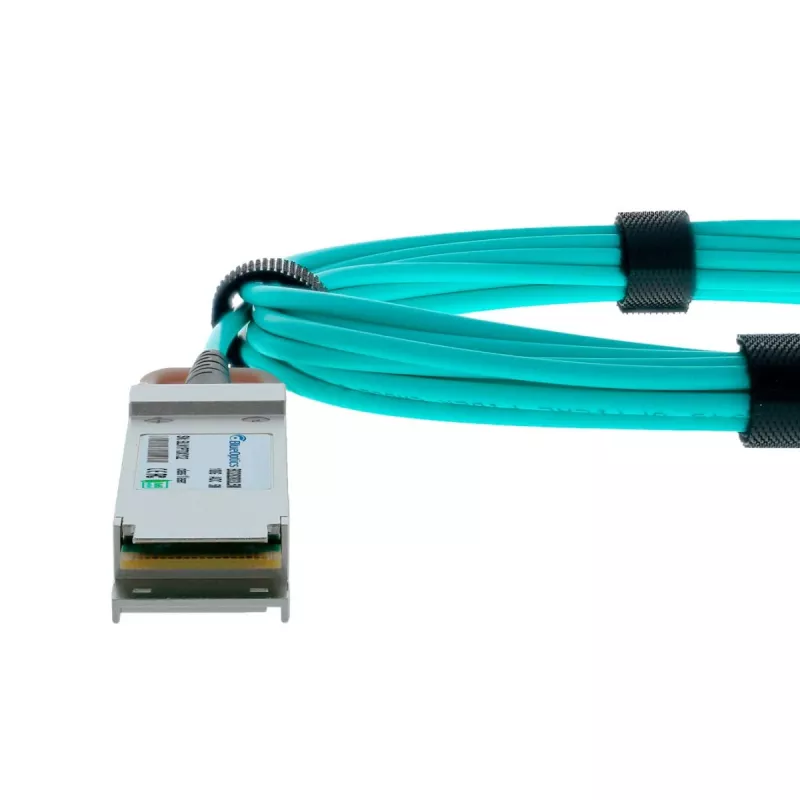

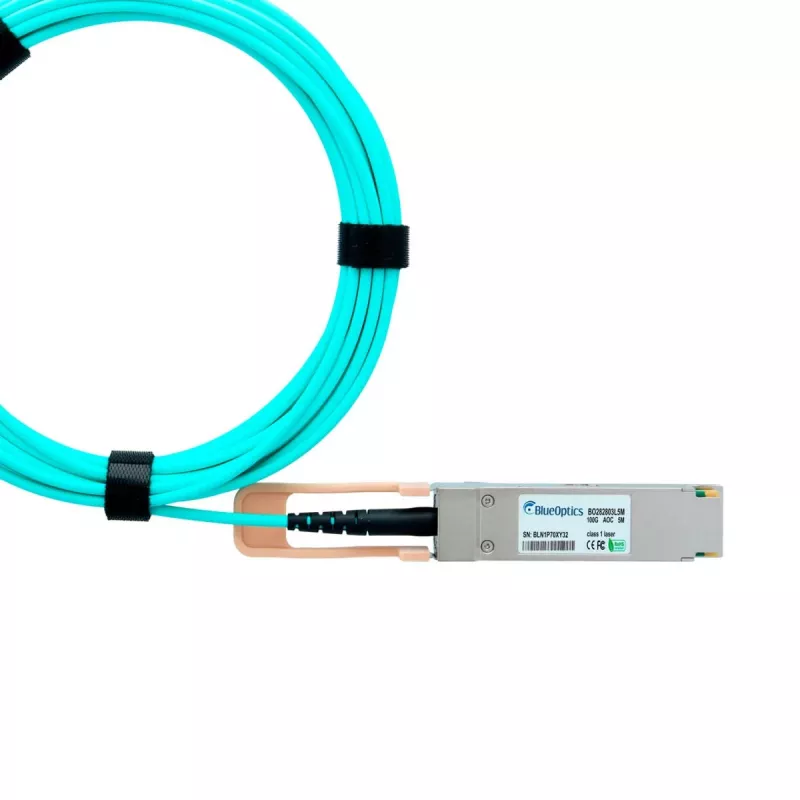

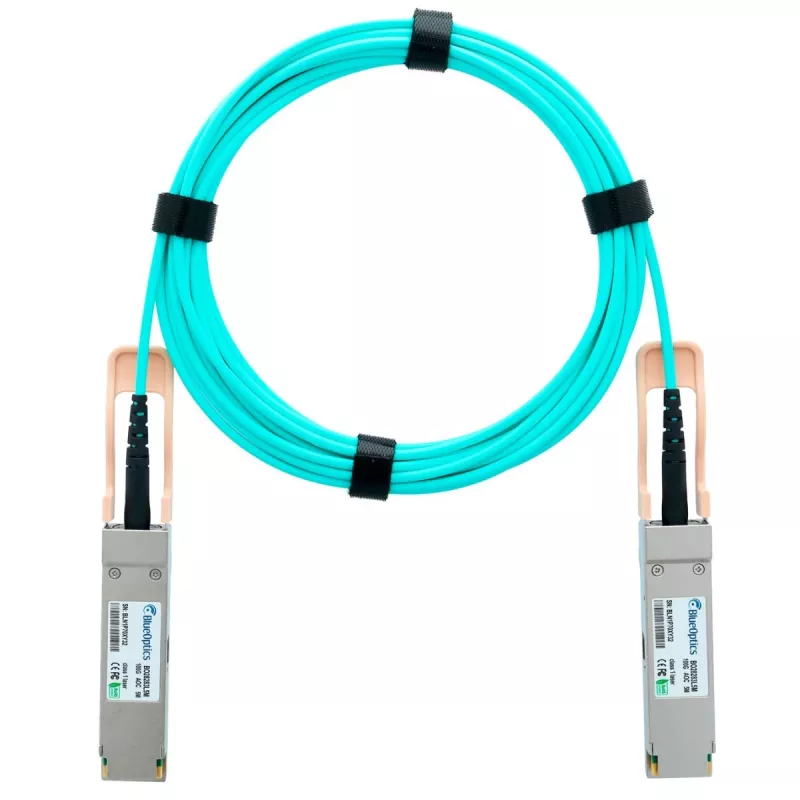

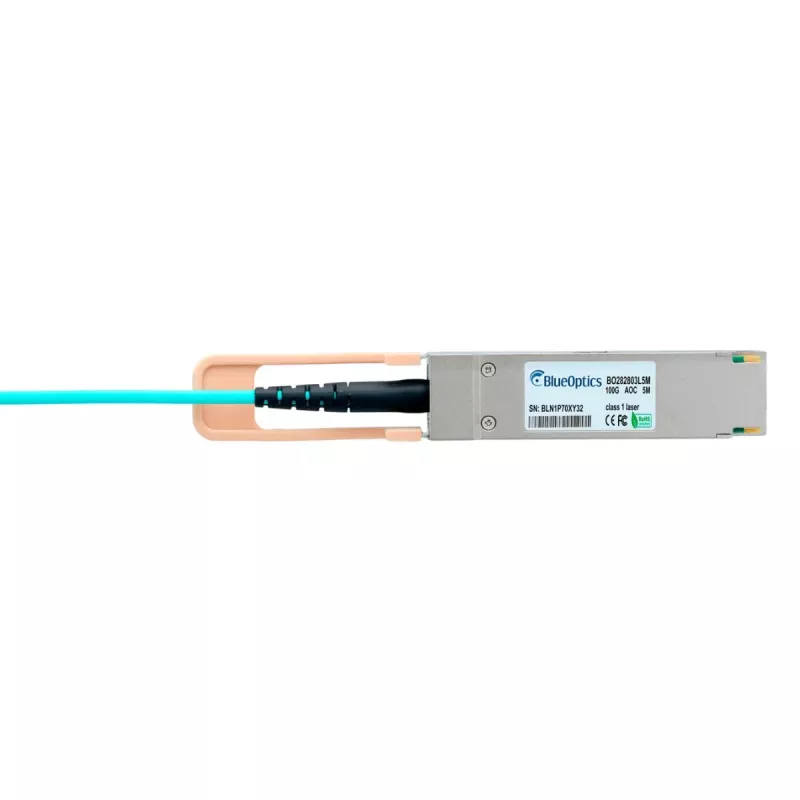

BlueOptics AOC QSFP28 100G QSFP28 a QSFP28 cable óptico activo de 5m compatible con Ruckus 100G-QSFP-QSFP-AOC-0501

The BlueOptics BO282803L5M is a high-performance Active Optical Cable (AOC) designed for 100 Gigabit Ethernet connectivity. This 5-meter cable features QSFP28 connectors on both ends, providing a reliable and efficient solution for data center interconnects, high-performance computing, and enterprise networking. It is fully compatible with Ruckus 100G-QSFP-QSFP-AOC-0501 equipment.

Advantages

This AOC offers significant advantages over traditional copper cables, including longer reach, lower weight, and immunity to electromagnetic interference. With low power consumption of less than 2.5W per end and support for Digital Diagnostics Monitoring (DDM), it ensures optimal performance and easy troubleshooting. The LSZH (Low Smoke Zero Halogen) jacket material enhances safety in enclosed spaces.

Suitable for

• Data Center Interconnects
• High-Performance Computing (HPC) Clusters
• Enterprise Network Backbones
• Ruckus 100G-QSFP-QSFP-AOC-0501 compatible systems

Key specifications

• Product Type: Active Optical Cable (AOC)
• Data Rate: 100 Gigabit Ethernet (100GBASE)
• Connector Type (End A): QSFP28
• Connector Type (End B): QSFP28
• Cable Length: 5 meters
• Fiber Type: Multimode Fiber (MMF)
• Number of Channels: 4 independent full-duplex channels
• Power Consumption: < 2.5W per end
• Supply Voltage: 3.3V
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Hot-Pluggable: Yes
• Digital Diagnostics Monitoring (DDM): Yes
• Standards Compliance: SFF-8665, IEEE 802.3bm 100GBASE-SR4
• Form Factor: QSFP28

Recommendations

For optimal performance, ensure that both host devices support QSFP28 interfaces and 100GBASE-SR4 standards. This cable is ideal for short-reach, high-bandwidth applications within racks or between adjacent racks.
