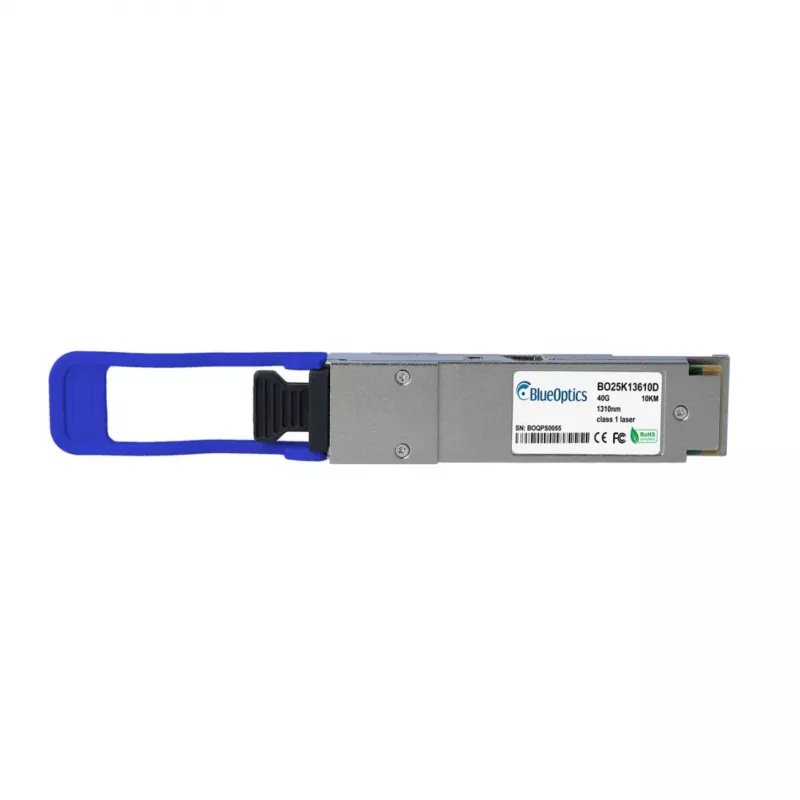

BlueOptics BO25K13610D Transceptor QSFP Finisar FTL4C1QM1C compatible, LC Dúplex, 40GBASE-LR4, Monomodo, 10 km

The BlueOptics BO25K13610D is a high-performance QSFP transceiver designed to be fully compatible with Finisar FTL4C1QM1C and MSA-compliant QSFP ports. It delivers 40GBASE-LR4 connectivity over single-mode fiber (SMF) with a reach of up to 10 km (6.2 miles). This hot-swappable module features LC duplex connectors and supports Digital Diagnostics Monitoring (DDM/DOM) for real-time performance tracking. Ideal for data center and enterprise network applications, it ensures reliable, high-speed data transmission with low power consumption.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Fully MSA compliant for seamless integration. Low power consumption (<3.5W typical) reduces energy costs. Robust metal housing for durability and effective heat dissipation.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Metropolitan area networks (MAN)
• 40G Ethernet uplinks

Key specifications

• Form Factor: QSFP
• Data Rate: 40 Gbps
• Standard: 40GBASE-LR4
• Max Distance: 10 km (6.2 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (LAN WDM)
• DDM/DOM Support: Yes
• Hot Swappable: Yes
• Power Consumption: < 3.5W (Typical)
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Compatibility: Finisar FTL4C1QM1C and MSA Compliant QSFP Ports
• Laser Type: DFB (Distributed Feedback Laser)
• Power Supply: 3.3V
• Protocol: Ethernet
• RoHS Compliant: Yes
• MTBF: > 500,000 hours
• Optical Interface: 4x 10Gbps LAN WDM Channels
• Electrical Interface: CAUI-4 (4x 10Gbps)
• Housing Material: Metal

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This transceiver is a direct replacement for Finisar FTL4C1QM1C and is backed by BlueOptics' quality assurance.
