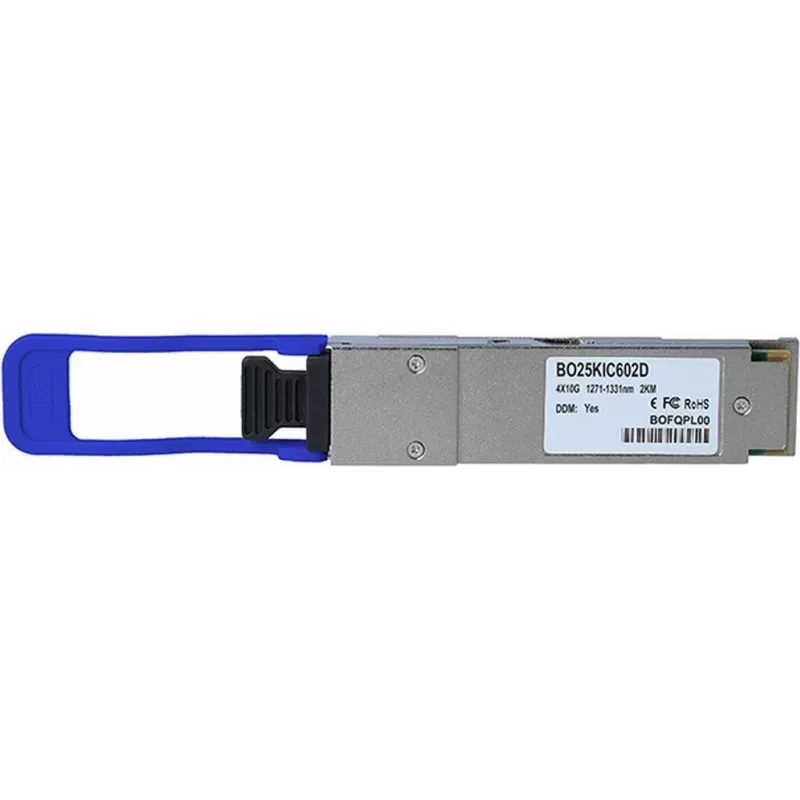

BlueOptics BO25KIC602D transceptor QSFP, LC-Duplex, 40GBASE-LX4, multimodo OM4 160m, monomodo 2km, 4xWDM, 0°C/+70°C, DDM, compatible con Huawei 02311HNP 02311HNP-BO

This BlueOptics QSFP transceiver delivers 40 Gigabit Ethernet over both multimode and single-mode fiber, with a reach of 160 meters on OM4 multimode and 2 kilometers on single-mode. Unlike standard 40GBASE-SR4 modules that require MPO/MTP connectors and parallel optics, this module uses a duplex LC interface and 4-wavelength WDM, allowing reuse of existing duplex fiber infrastructure for longer distances.

Highlights

• 40GBASE-LX4 standard for 40 Gbps data rate
• Duplex LC connector supports both OM4 multimode (160 m) and single-mode fiber (2 km)
• 4xWDM technology multiplexes four wavelengths over a single fiber pair
• Digital Diagnostic Monitoring (DDM) for real-time parameter monitoring
• Hot-pluggable QSFP form factor, MSA compliant
• Operating temperature range 0°C to +70°C

In daily use

Designed for data centers and enterprise networks, the module is compatible with Huawei 02311HNP and equivalent switches. It operates from a 3.3 V power supply and supports hot swapping without interrupting the system. DDM provides visibility into temperature, optical power, and other parameters for proactive maintenance.

Full specifications

• Form Factor: QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-LX4
• Connector Type: LC-Duplex
• Multimode Fiber: OM4, max distance 160 m
• Single-mode Fiber: supported, max distance 2 km
• Wavelength Division Multiplexing: 4xWDM
• Operating Temperature: 0°C to +70°C
• Digital Diagnostic Monitoring: Yes
• Hot-Pluggable: Yes
• Power Supply: 3.3 V
• MSA Compliant: Yes

Final note

Compatible with Huawei 02311HNP, this transceiver provides a flexible 40G connectivity solution for mixed fiber environments.
