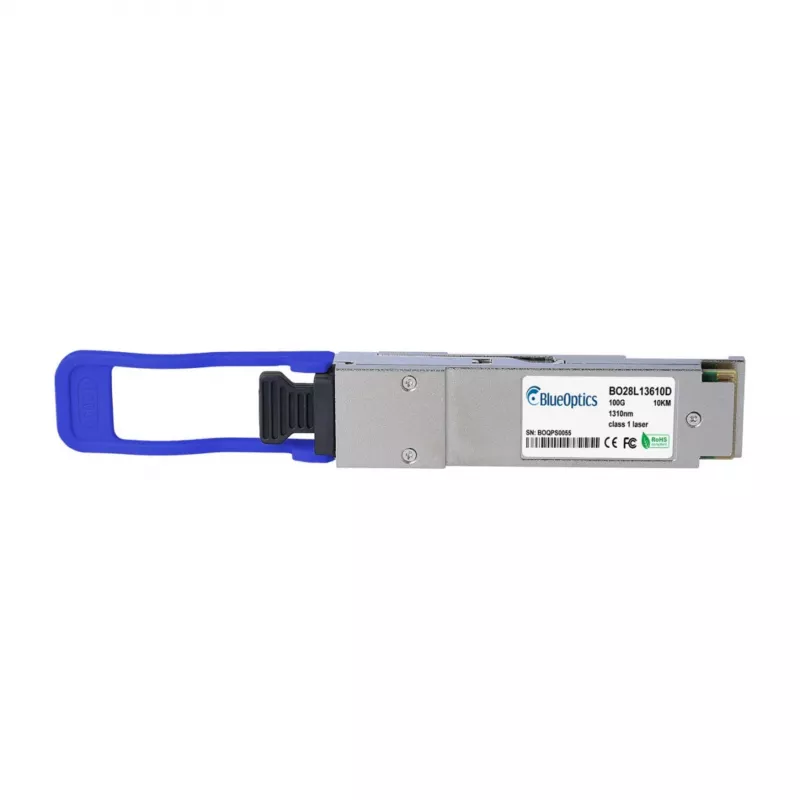

BlueOptics BO28L13610D QSFP28 100GBASE-LR4 10km Transceptor Compatible con Finisar FTLC1156SDPL

The BlueOptics BO28L13610D is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with Finisar FTLC1156SDPL and other MSA-compliant QSFP28 ports, offering reliable connectivity for data center, enterprise, and service provider networks. This transceiver supports 100GBASE-LR4 over single-mode fiber with a reach of up to 10 km, utilizing LAN-WDM wavelengths for efficient data transmission.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Hot-pluggable design ensures easy installation and minimal network downtime. Digital Diagnostic Monitoring (DDM) provides real-time monitoring of operating parameters for proactive network management. Low power consumption of less than 3.5W helps reduce energy costs.

Suitable for

• Data center interconnects
• Enterprise networking
• Service provider networks
• 100GbE uplinks and backbone connections

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gigabit Ethernet (103.125 Gbps max)
• Protocol: 100GBASE-LR4
• Reach: 10 km (6.2 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Wavelengths: LAN-WDM (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm)
• Connector: Duplex LC
• DDM/DOM: Yes
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Hot Swappable: Yes
• Compliance: MSA Compliant, RoHS Compliant

Recommendations

For optimal performance, use with single-mode fiber patch cables and ensure your switch or router supports QSFP28 100GBASE-LR4 modules. This transceiver is an ideal choice for upgrading to 100GbE in existing fiber infrastructure.
