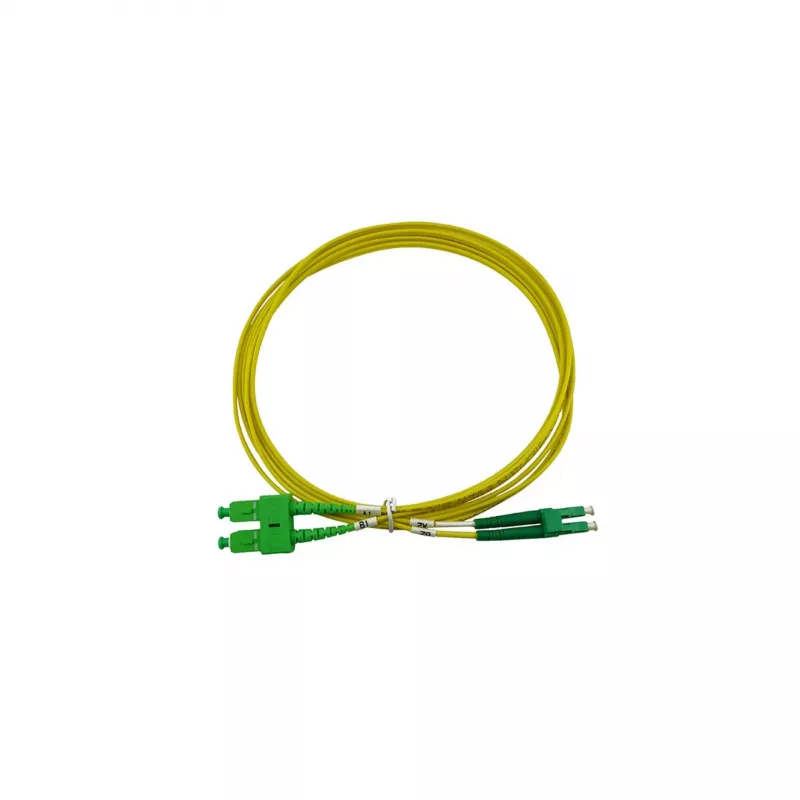

BlueOptics Cable de conexión de fibra óptica dúplex LC-APC/SC-APC monomodo 5 metros

The BlueOptics Duplex Fibre Optic Patch Cable LC-APC/SC-APC Singlemode 5 Metres is a high-performance fibre optic cable designed for reliable data transmission in demanding network environments. With its duplex design and singlemode fibre, it ensures low signal loss and high bandwidth over long distances.

Advantages

This cable offers exceptional signal integrity with typical insertion loss ≤0.25 dB and return loss ≥60 dB, thanks to the APC polish on both connectors. The LSZH jacket provides safety in enclosed spaces by emitting low smoke and no halogen in case of fire. The yellow jacket colour makes identification easy.

Suitable for

• Data Centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx deployments

Key specifications

• Cable Type: Duplex Fibre Optic Patch Cable
• Fibre Type: Singlemode (OS2)
• Connector A: LC/APC
• Connector B: SC/APC
• Length: 5 Metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Fibre Core/Cladding: 9/125 µm
• Operating Wavelengths: 1310 nm, 1550 nm
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.25 dB/km @1550nm
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-speed networks requiring reliable, low-loss connections.
