BlueOptics Cable de fibra óptica dúplex E2000-APC/E2000-APC monomodo OS2 10 m conectores verdes

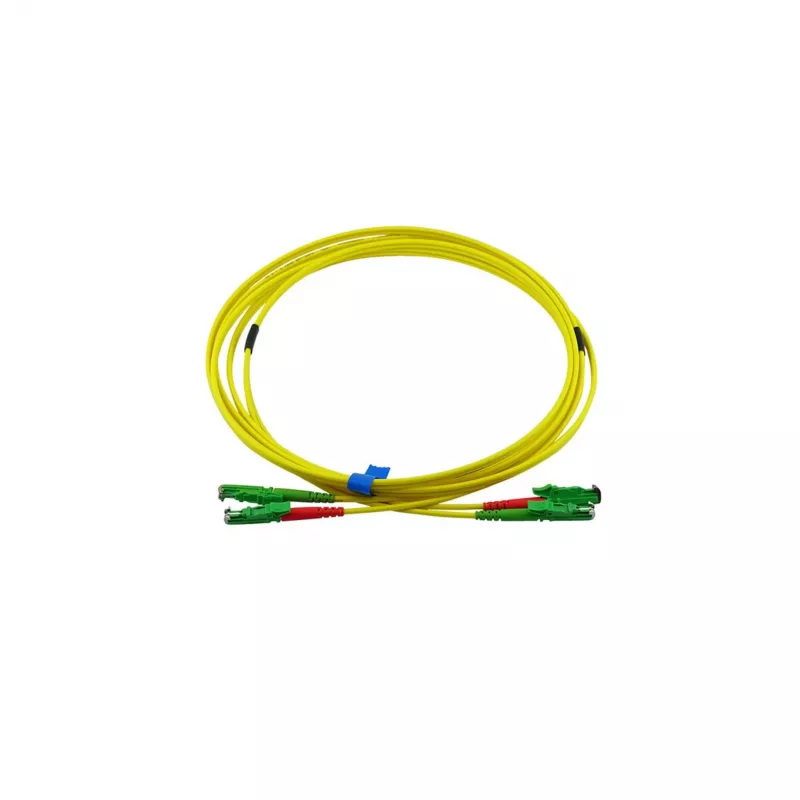

The BlueOptics SFP3838BU10MM is a high-quality duplex fiber optic patch cable designed for reliable singlemode transmission. Featuring E2000-APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for demanding network environments. With a length of 10 meters and a 9/125 µm core/cladding, it supports wavelengths of 1310 nm and 1550 nm. The LSZH jacket provides safety in confined spaces, while the green connector housing allows for easy identification.

Advantages

This patch cable offers exceptional performance with typical insertion loss ≤0.25 dB and return loss ≥60 dB. The APC polish minimizes back reflection, ensuring signal integrity. The robust zirconia ceramic ferrule guarantees durability and precise alignment. Compliance with RoHS, CE, TIA/EIA-568-C.3, and IEC 61754-15 standards ensures broad compatibility and reliability.

Suitable for

• Data center interconnects
• Telecommunications networks
• FTTx applications
• High-speed enterprise networks
• Test and measurement equipment

Key specifications

• Cable Type: Duplex Fiber Optic Patch Cable
• Fiber Type: Singlemode (OS2)
• Core/Cladding: 9/125 µm
• Connectors: E2000-APC to E2000-APC
• Length: 10 m
• Jacket Material: LSZH
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 30 mm (dynamic), 60 mm (static)

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and avoid sharp bends to maintain signal quality. This cable is an excellent choice for high-bandwidth singlemode links.
