BlueOptics Cable de fibra óptica simplex LC/APC a SC/APC monomodo OS2 0,5m amarillo

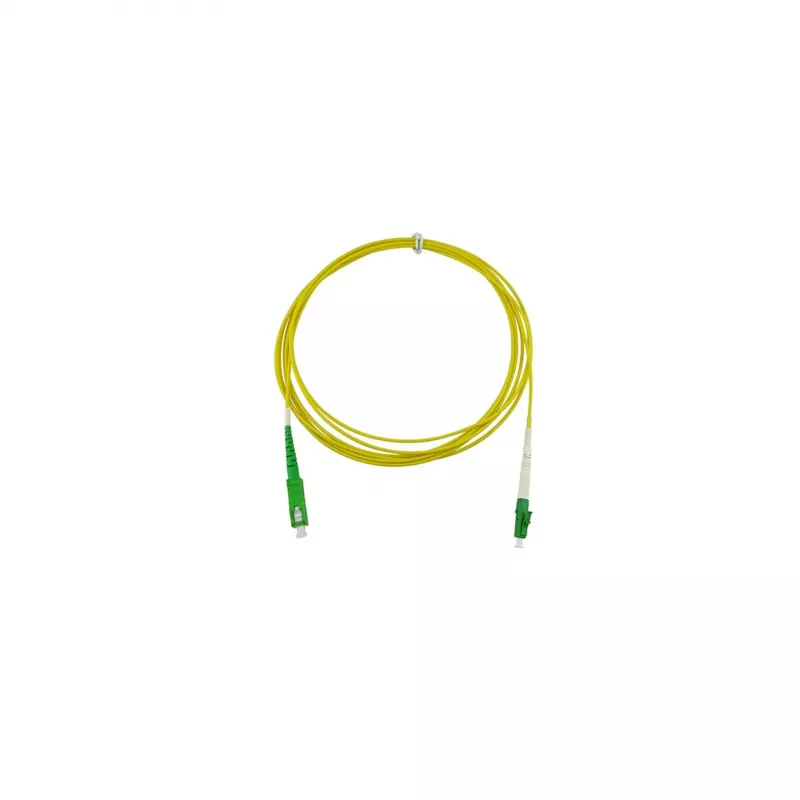

The BlueOptics Simplex Fibre Optic Patch Cable LC/APC to SC/APC is a high-performance single mode OS2 patch cord designed for reliable data transmission in data centers, telecommunications, LAN, and FTTx networks. With a length of 0.5 metres, it provides a compact solution for short-distance connections. The cable features LC/APC connectors on one end and SC/APC connectors on the other, both with Angled Physical Contact (APC) polish to minimize back reflection and ensure low insertion loss. The LSZH (Low Smoke Zero Halogen) jacket material enhances safety by reducing toxic and corrosive emissions in case of fire. The yellow cable colour indicates single mode fibre, and the 2.0 mm diameter ensures flexibility while maintaining durability. Typical insertion loss is less than 0.2 dB, and return loss exceeds 60 dB, supporting wavelengths of 1310 nm and 1550 nm. The cable is compliant with RoHS, CE, IEC 61754, and TIA/EIA-568-C.3 standards.

Advantages

This patch cable offers superior signal integrity with low insertion loss and high return loss, ensuring reliable performance in critical network applications. The APC polish reduces back reflection, making it ideal for high-precision systems. The LSZH jacket provides enhanced safety in enclosed spaces. The 0.5-metre length is perfect for short patch panel or equipment connections, reducing cable clutter.

Suitable for

• Data center interconnects
• Telecommunications networks
• Local Area Networks (LAN)
• Fibre to the x (FTTx) deployments
• Test and measurement equipment

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Mode: Single Mode (OS2)
• Connector A: LC/APC
• Connector B: SC/APC
• Number of Fibres: 1 (Simplex)
• Cable Length: 0.5 m
• Jacket Material: LSZH
• Cable Diameter: 2.0 mm
• Insertion Loss: < 0.2 dB typical
• Return Loss: > 60 dB typical
• Wavelengths: 1310 nm, 1550 nm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Ferrule Material: Zirconia Ceramic
• Minimum Bend Radius: 10D (20 mm)
• Compliance: RoHS, CE, IEC 61754, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to maintain bend radius. This cable is compatible with standard LC/APC and SC/APC ports.
