BLUEOPTICS Cable MiniSAS-HD HPE J9734AS BlueLAN compatible, Pasivo, 4x Mini-SAS HD (SFF-8644) a 4x Mini-SAS HD (SFF-8644), AWG30, 0,5 metros (J9734AS-BL)

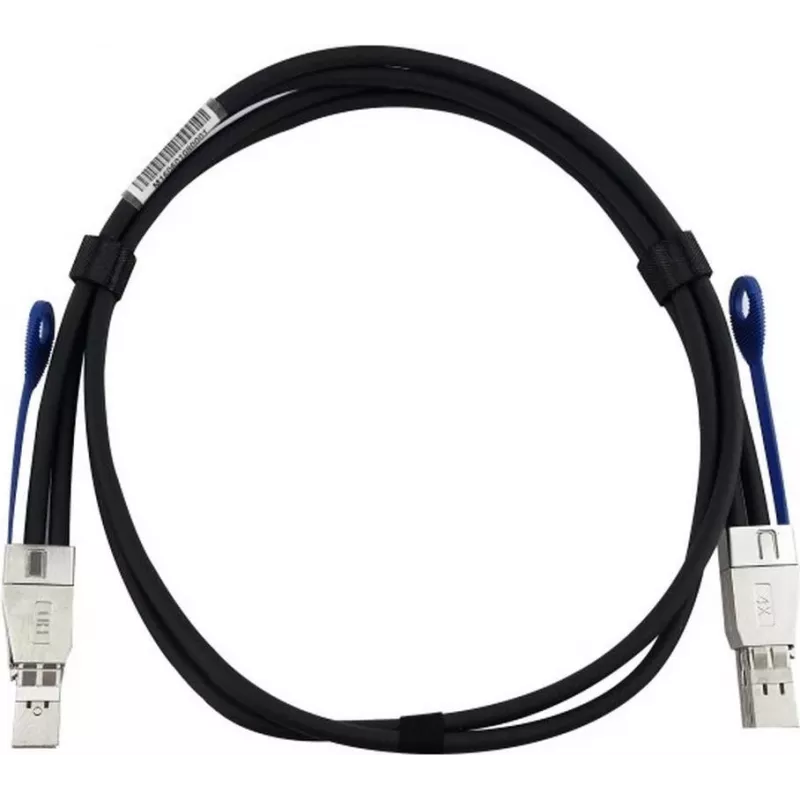

The BLUEOPTICS J9734AS-BL is a high-quality, passive MiniSAS-HD Direct Attach Cable (DAC) designed for reliable server and storage interconnectivity. This cable is fully compatible with HPE J9734AS and offers a cost-effective alternative without compromising performance. With 4-lane Mini-SAS HD connectors on both ends, it supports data rates up to 12 Gbps per lane, delivering a total bandwidth of 48 Gbps. The 0.5-meter length and AWG30 wire gauge ensure flexibility and optimal signal integrity for short-distance connections within racks or between adjacent devices.

Advantages

This cable provides a passive, low-latency connection ideal for high-speed data transfer in enterprise environments. Its robust construction and copper conductors guarantee durability and consistent performance. The BlueLAN series ensures compatibility with a wide range of SAS equipment, making it a versatile choice for data centers and server rooms.

Suitable for

• Connecting servers to storage arrays
• Interconnecting SAS switches and enclosures
• Short-distance high-speed data links within racks
• Replacing OEM cables with a cost-effective alternative

Key specifications

• Product Type: Mini-SAS HD Direct Attach Cable (DAC)
• Cable Design: Passive
• Connector A: Mini-SAS HD (SFF-8644)
• Connector B: Mini-SAS HD (SFF-8644)
• Number of Lanes: 4-Lane (per connector)
• Cable Length: 0.5 meters
• Wire Gauge: AWG30
• Max Data Rate per Lane: 12 Gbps
• Total Max Bandwidth: 48 Gbps (4 x 12 Gbps)
• Protocol Support: SAS (Serial Attached SCSI)
• Compatibility: HPE J9734AS (compatible)
• Connector Form Factor: External
• Conductor Material: Copper

Recommendations

For optimal performance, ensure that both connected devices support SAS protocol and Mini-SAS HD interfaces. This cable is not suitable for Ethernet or Fibre Channel applications. Always verify compatibility with your specific hardware before purchase.
