Cable óptico AOC CBO 100G QSFP28 20m para Huawei

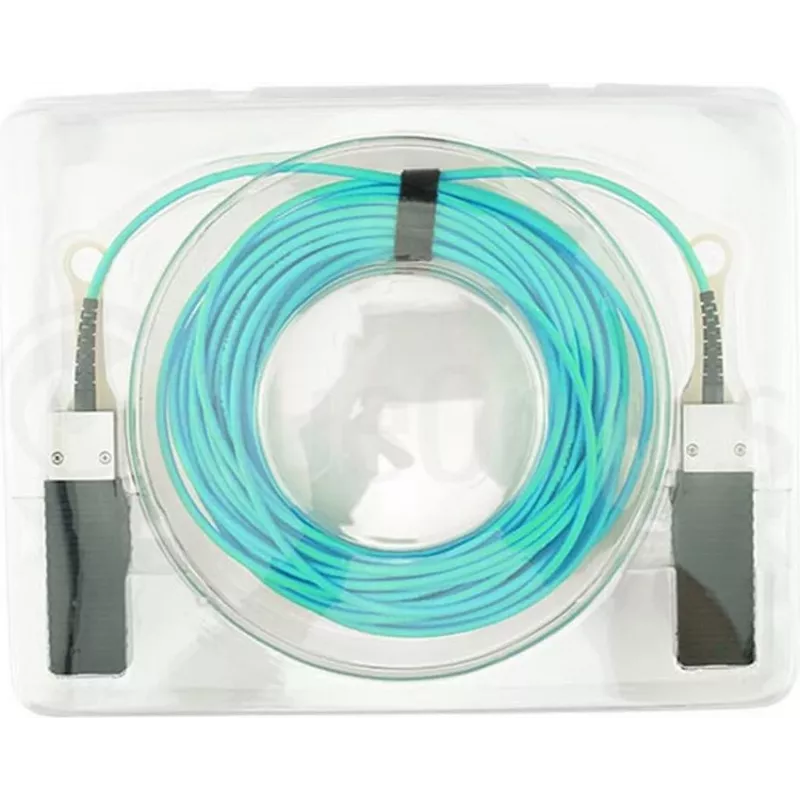

The AOC Optical Cable CBO 100G QSFP28 20m for Huawei is an active optical cable in QSFP28 form factor designed to provide a fixed 20-metre 100 Gigabit Ethernet link for compatible Huawei devices. The cable integrates optical transceivers and fiber in a single assembly to deliver a plug-and-play 100G connection between servers, switches and other data center equipment, reducing the need for separate transceivers and patch fibers while maintaining low latency and high signal integrity.

Advantages

This active optical cable offers a compact QSFP28 interface that supports 100G links over a 20 m distance, simplifying cabling in high-density environments. Its integrated design lowers insertion points and potential signal loss compared with separate transceivers and patch cords, and it reduces setup time due to plug-and-play operation. The product is engineered to meet the electrical and optical requirements of standard 100G QSFP28 ports and is suitable for environments where reliable, consistent throughput is required.

Suitable for

• Direct 100G server-to-switch connections in data centers
• High-speed switch-to-switch interconnects within racks and across adjacent racks
• Short-reach 100G links for aggregation and spine-leaf topologies
• Situations where a compact, low-latency 100G link is preferred over separate transceiver and fiber pairs

Key specifications

• Interface: QSFP28 form factor compatible with 100G QSFP28 ports
• Data rate: 100 Gigabit Ethernet
• Length: 20 metres fixed active optical cable
• Cable type: Active optical cable (AOC) with integrated optical transceivers
• Latency: Low-latency direct optical link (no separate transceiver-to-fiber interfaces)
• Compatibility: Designed for use with Huawei equipment supporting QSFP28 100G ports

How to use

Connect each QSFP28 connector to the corresponding 100G port on the Huawei devices to establish the optical link. The integrated design requires no separate transceiver installation or additional fiber patching. Ensure both end ports support QSFP28 100G operation and are configured for the intended network role. Check device LEDs and management interfaces to verify link status after insertion. For hot-pluggable systems, insert or remove the cable following the equipment manufacturer's hot-swap guidelines.

Recommendations

Handle the QSFP28 connectors by the housing, avoid bending the cable sharply, and maintain the minimum bend radius specified by the manufacturer. Ensure firmware and port settings on connected Huawei devices support 100G QSFP28 AOC operation. For optimal reliability, install the cable in rack paths that avoid mechanical stress and inspect connector ferrules for contamination before insertion.
