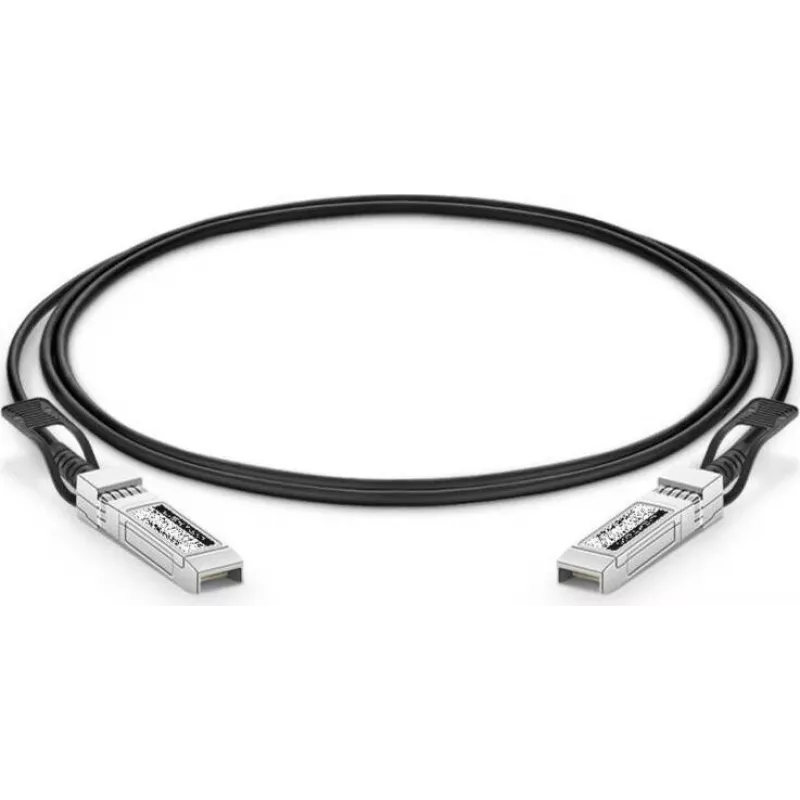

Lightwin Cable de cobre de conexión directa 25G SFP28 a SFP28 0,5 m LWO-DAC-SFP28-0.5M

Modern data centers demand high-speed, low-latency connections between servers and switches, but optical transceivers can be costly and power-hungry. The Lightwin LWO-DAC-SFP28-0.5M Direct Attach Copper (DAC) cable solves this by delivering 25 Gigabit Ethernet over a short 0.5-meter passive copper link, eliminating the need for separate optics and reducing both cost and complexity.

Who is it for

This cable is ideal for network engineers and data center operators who need to connect SFP28 ports on servers, switches, and storage devices within a rack or adjacent racks. It is perfect for 25GbE deployments in enterprise and cloud environments where short-reach, high-density interconnects are required.

Main features

• 25 Gbps data rate for high-performance networking
• SFP28 to SFP28 connectors, compatible with standard SFP28 ports
• Passive copper design for low power consumption (less than 0.5W typical)
• 0.5-meter length, ideal for intra-rack connections
• Hot-swappable for easy installation and maintenance
• Compliant with SFF-8402, SFF-8431, and SFF-8472 standards
• RoHS compliant, ensuring environmental safety

Specifications

• Cable Type: Direct Attach Copper (DAC)
• Data Rate: 25 Gbps
• Connector Type (End A): SFP28
• Connector Type (End B): SFP28
• Cable Length: 0.5 meters
• Passive/Active: Passive
• Cable Material: Copper
• Impedance: 100 Ohm
• Power Consumption: < 0.5W (typical)
• Protocol Support: 25 Gigabit Ethernet (25GbE)
• Standards Compliance: SFF-8402, SFF-8431, SFF-8472
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Voltage Supply: 3.3V
• Applications: Data Center Interconnect, Server-to-Switch, Switch-to-Switch
• RoHS Compliant: Yes

Tips

For optimal performance, ensure both connected devices support SFP28 and 25GbE. The cable is passive, so no additional power or configuration is needed. Keep the cable away from sharp bends to maintain signal integrity. This DAC cable is an excellent choice for cost-effective, high-speed connectivity in dense data center environments.
