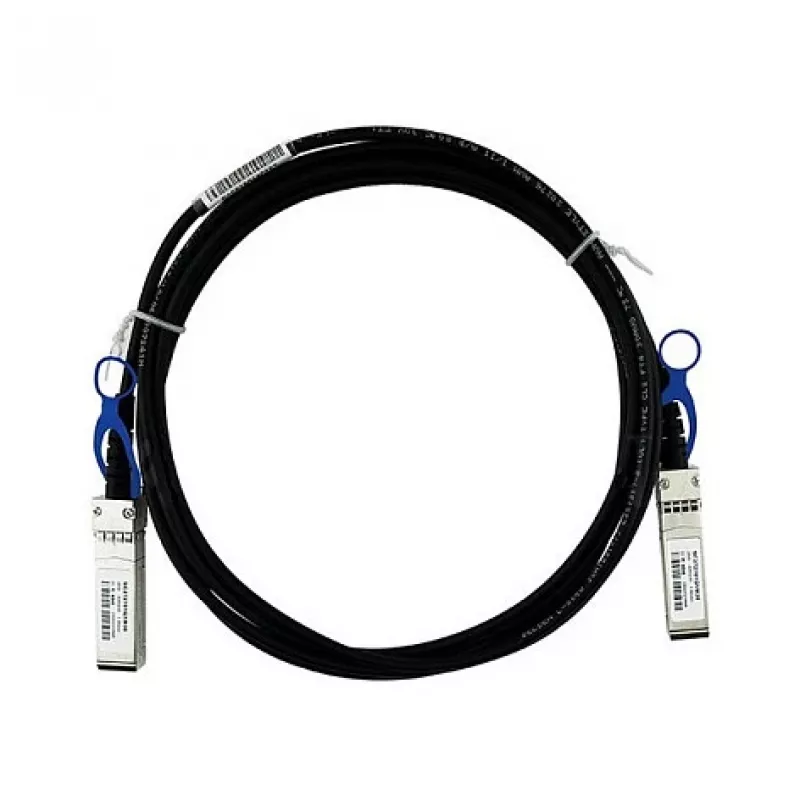

BlueOptics compatible HPE Aruba JL487A 25GBASE-CR cable direct attach SFP28 a SFP28, 1 metro, AWG30

The BlueOptics BlueLAN DAC SFP28 cable is a high-performance, passive direct attach copper cable designed for 25 Gigabit Ethernet connectivity. It is fully compatible with HPE Aruba JL487A and provides a cost-effective, low-latency solution for short-range interconnects in data centers and enterprise networks.

Advantages

This cable offers reliable 25 Gbps data transmission over a 1-meter length, with low power consumption (<0.1W per end) and hot-swappable SFP28 connectors. The passive copper design ensures zero latency and is ideal for server-to-switch and rack-to-rack connections.

Suitable for

• Data center interconnects
• Server-to-switch connections
• Rack-to-rack cabling
• High-performance computing environments

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR
• Cable Type: Passive Copper
• Connector Type (End 1): SFP28
• Connector Type (End 2): SFP28
• Cable Length: 1 Meter
• Wire Gauge: AWG30
• Compatibility: HPE Aruba JL487A (OEM Equivalent)
• Hot-Swappable: Yes
• Protocol Support: Ethernet, InfiniBand EDR
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Compliance: RoHS, CE, FCC
• Power Consumption: < 0.1W (per end)
• Jacket Material: PVC
• Minimum Bend Radius: Approx. 25mm (1 inch)
• Voltage Supply: 3.3V (from host)

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible SFP28 ports. This cable is a direct replacement for the HPE Aruba JL487A.
