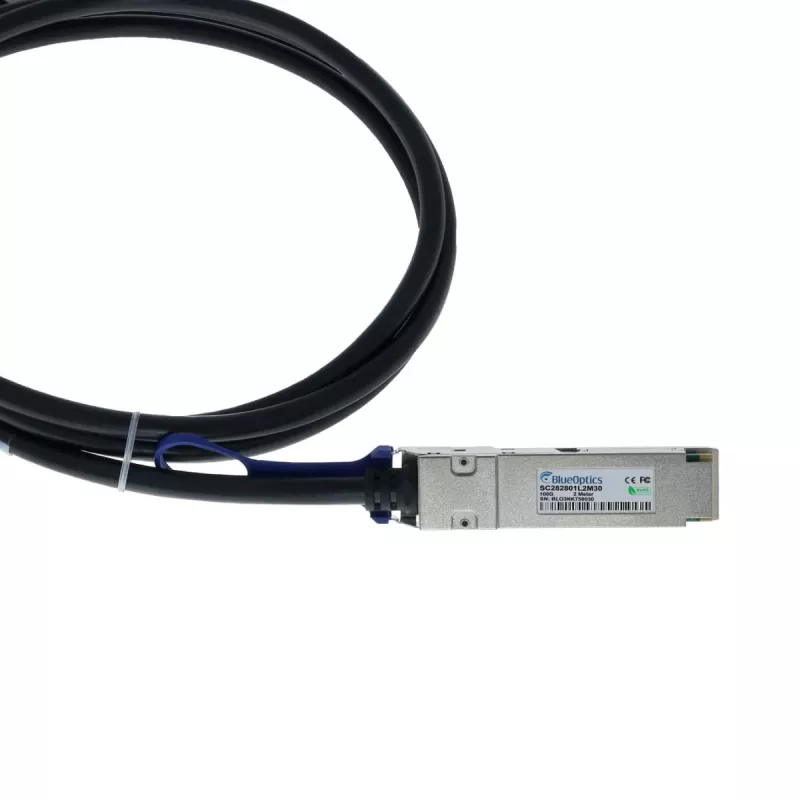

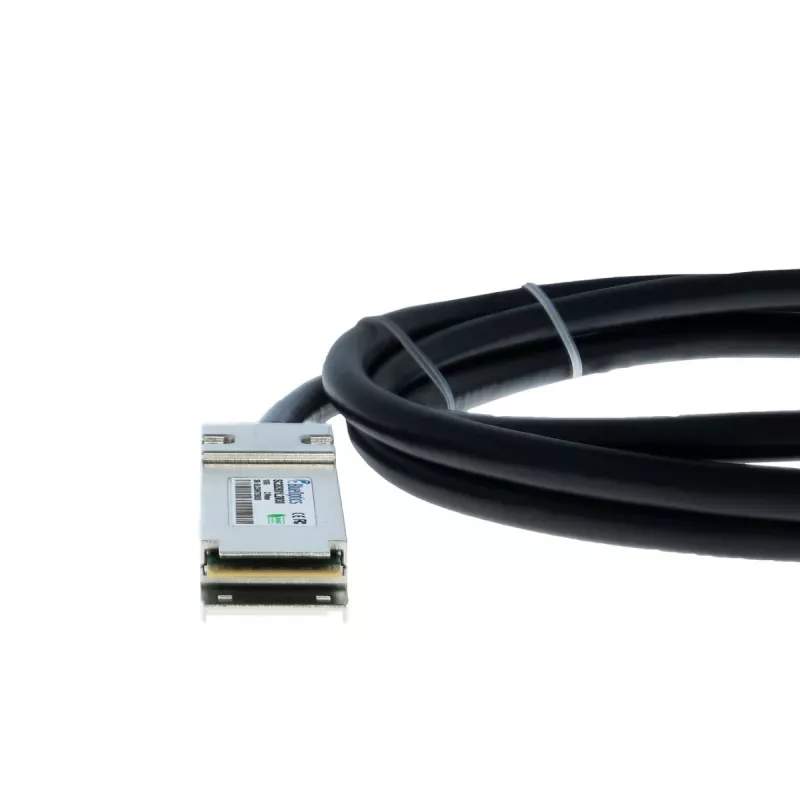

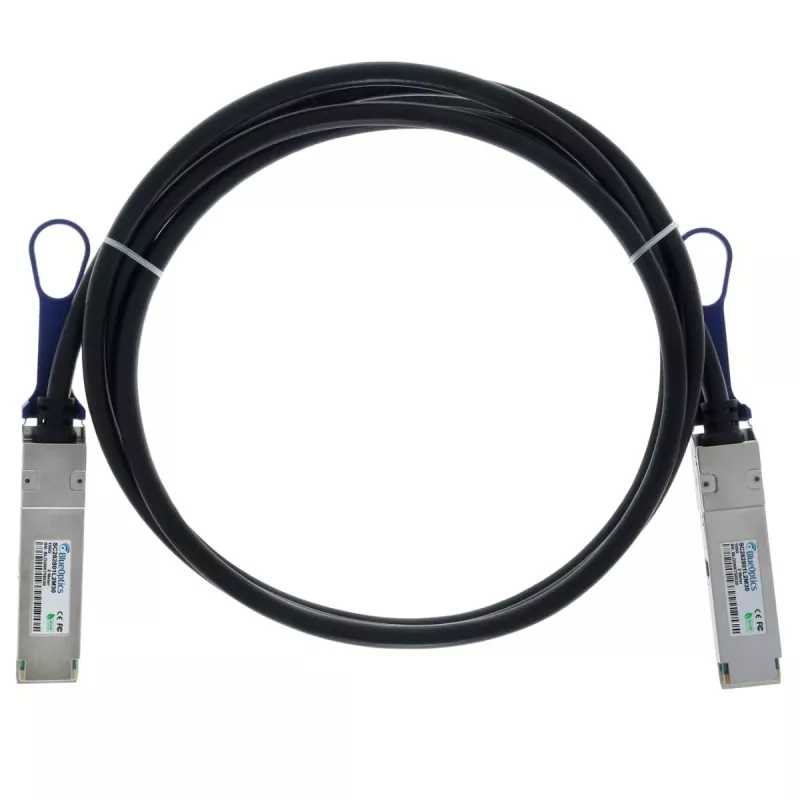

BlueOptics E100G-QSFP-QSFP-P-0501 Cable Twinax de cobre pasivo DAC QSFP28 5m compatible BlueLAN

The BlueOptics E100G-QSFP-QSFP-P-0501 is a high-performance, passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet (100GBASE-CR4) applications. This QSFP28 to QSFP28 cable provides a cost-effective, low-power solution for short-reach interconnects in data centers, high-performance computing (HPC), enterprise networks, and storage area networks (SAN). With a length of 5 meters and 26 AWG construction, it ensures reliable signal integrity and compliance with IEEE 802.3bj and MSA standards.

Advantages

This DAC cable offers several key benefits: it is hot-swappable, consumes less than 0.5W per end, and operates over a wide temperature range (0°C to 70°C). Its passive copper design eliminates the need for external power, reducing overall system power consumption. The cable is RoHS compliant and built for durability, making it an ideal choice for high-density environments.

Suitable for

• Data Center Interconnects
• High-Performance Computing (HPC) Clusters
• Enterprise Networking
• Storage Area Networks (SAN)
• Top-of-Rack to Server Connections

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Data Rate: 100 Gbps (100GBASE-CR4)
• Connector Type (End A): QSFP28
• Connector Type (End B): QSFP28
• Cable Length: 5 meters
• Cable Type: Copper Twinax
• Passive/Active: Passive
• Wire Gauge: 26 AWG
• Protocol Support: IEEE 802.3bj
• Hot Swappable: Yes
• RoHS Compliant: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.5W per end
• Impedance: 100 Ohm
• Compatibility: BlueLAN compatible, MSA Compliant
• Form Factor: QSFP28

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is designed for short-reach applications up to 5 meters; for longer distances, consider active optical cables or fiber transceivers. Always handle with care to avoid damage to the connectors.
