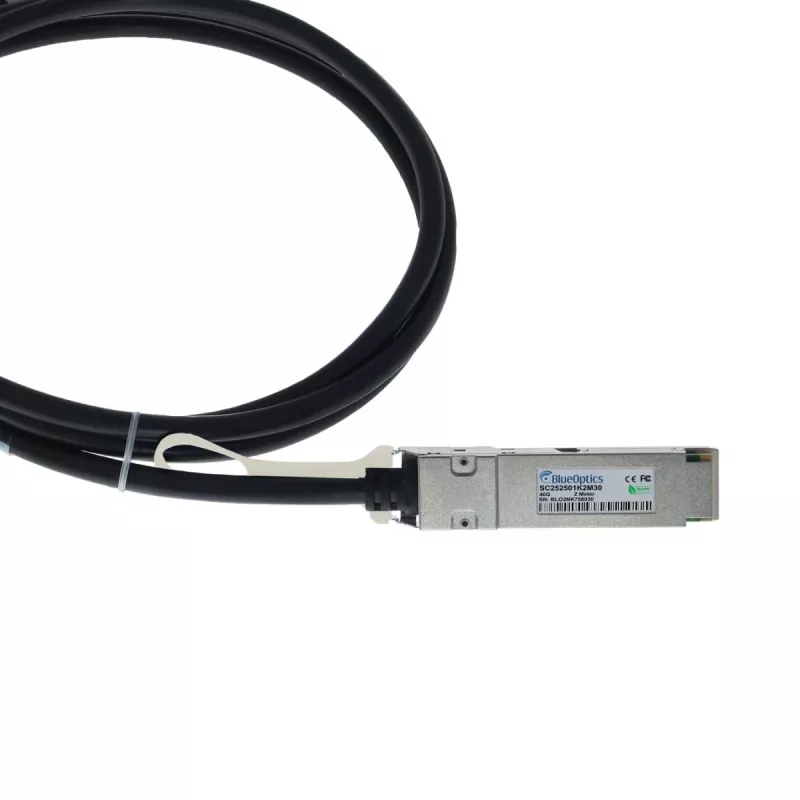

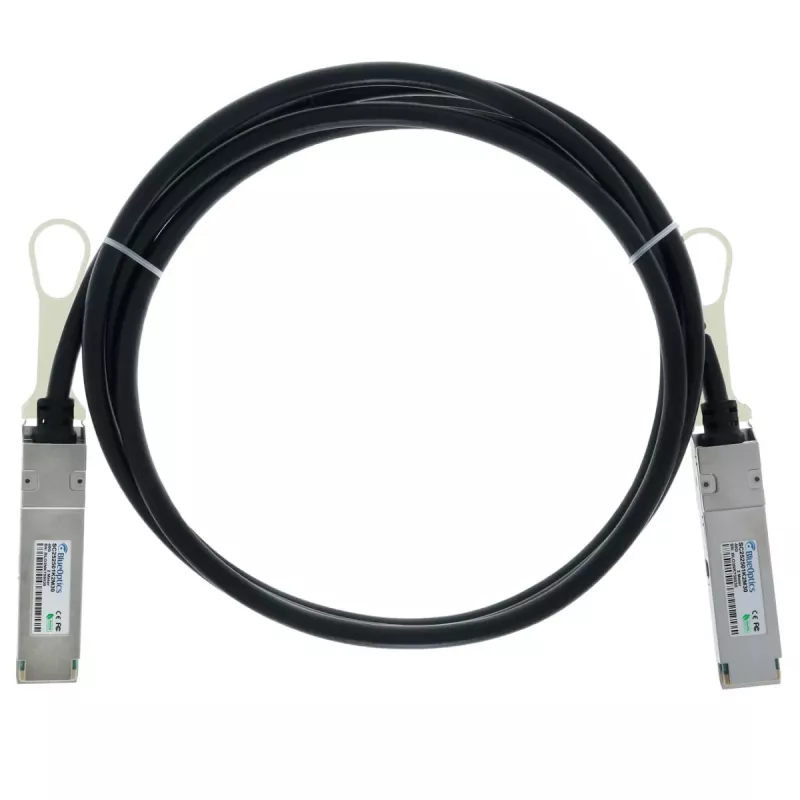

BlueOptics Extreme Networks 20G-DACP-QSFP1SFPDD1M BlueLAN QSFP+ Direct Attach Cable, 40GBASE-CR4, 30AWG, 1 Metro

The BlueOptics Extreme Networks 20G-DACP-QSFP1SFPDD1M BlueLAN QSFP+ Direct Attach Cable (DAC) is a high-performance, passive copper twinaxial cable designed for 40 Gigabit Ethernet connectivity. It provides a cost-effective and low-power solution for short-range interconnects within data centers, connecting switches, servers, and storage devices.

Advantages

This DAC cable offers reliable 40 Gbps data transmission over a 1-meter length, with low power consumption and hot-swappable capability. Its passive design ensures no additional power is required, reducing overall system power draw. The 30 AWG wire gauge provides flexibility for easy cable management in dense rack environments.

Suitable for

• Data center interconnect (DCI) applications
• Rack-to-rack and server-to-switch connections
• High-performance computing (HPC) clusters
• Extreme Networks compatible equipment

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Cable Material: Copper Twinax
• Transceiver Type: Passive Copper
• Compatibility: Extreme Networks (Vendor Specific)
• Hot-Swappable: Yes
• Compliance: SFF-8436 (QSFP+ MSA)
• Impedance: 100 Ohm

Recommendations

For optimal performance, use this cable with Extreme Networks switches and network interface cards that support QSFP+ ports. Ensure proper cable routing to avoid sharp bends and maintain signal integrity.
