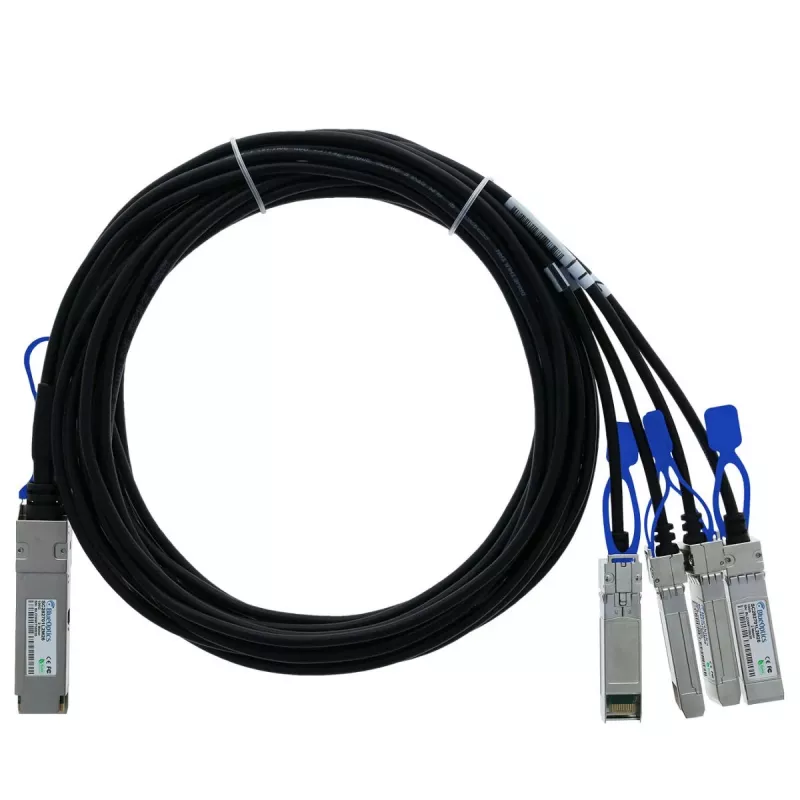

BlueOptics Fortinet FN-CABLE-QSFP28-4SFP28-5 BlueLAN SC282701L5M26 Cable Breakout Direct Attach Pasivo 100GBASE-CR4 QSFP28 a 4x25GBASE-CR SFP28, 5 metros

The BlueOptics Fortinet FN-CABLE-QSFP28-4SFP28-5 BlueLAN SC282701L5M26 is a high-performance passive direct attach breakout cable designed for 100 Gigabit Ethernet networks. It converts a single QSFP28 port into four independent SFP28 ports, enabling flexible connectivity in data centers and high-performance computing environments. With a length of 5 meters, this cable supports 100GBASE-CR4 on the QSFP28 end and 25GBASE-CR on each SFP28 end, ensuring reliable, low-latency transmission.

Advantages

This breakout cable offers significant cost savings and space efficiency by eliminating the need for separate transceivers and fiber cabling. Its passive design consumes zero power, reducing overall energy consumption. The cable is hot-swappable and compliant with RoHS standards, making it an environmentally friendly choice. It is fully compatible with Fortinet FN-CABLE-QSFP28-4SFP28-5 and provides seamless integration into existing network infrastructure.

Suitable for

• Data center interconnects
• High-performance networking
• Enterprise network upgrades
• Telecommunications equipment
• Cloud computing environments

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Cable Configuration: Breakout Cable
• Connector Type A: QSFP28
• Connector Type B: 4x SFP28
• Data Rate (Aggregate): 100 Gbps
• Data Rate (Per Lane): 25 Gbps
• Ethernet Standard (QSFP28): 100GBASE-CR4
• Ethernet Standard (SFP28): 25GBASE-CR
• Cable Length: 5 meters
• Active/Passive: Passive
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Power Consumption: 0 W
• Hot-Swappable: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both the QSFP28 and SFP28 ports on your switches or servers support the respective standards. This cable is ideal for short-range, high-speed connections within racks or between adjacent racks. Always handle the cable with care to avoid damage to the connectors.
