BlueOptics HPE P06248-B22 Compatible Breakout Direct Attach Cable (DAC) Pasivo 200GbE a 2x100GbE Twinaxial Cobre QSFP56 a 2xQSFP56 3m BlueLAN

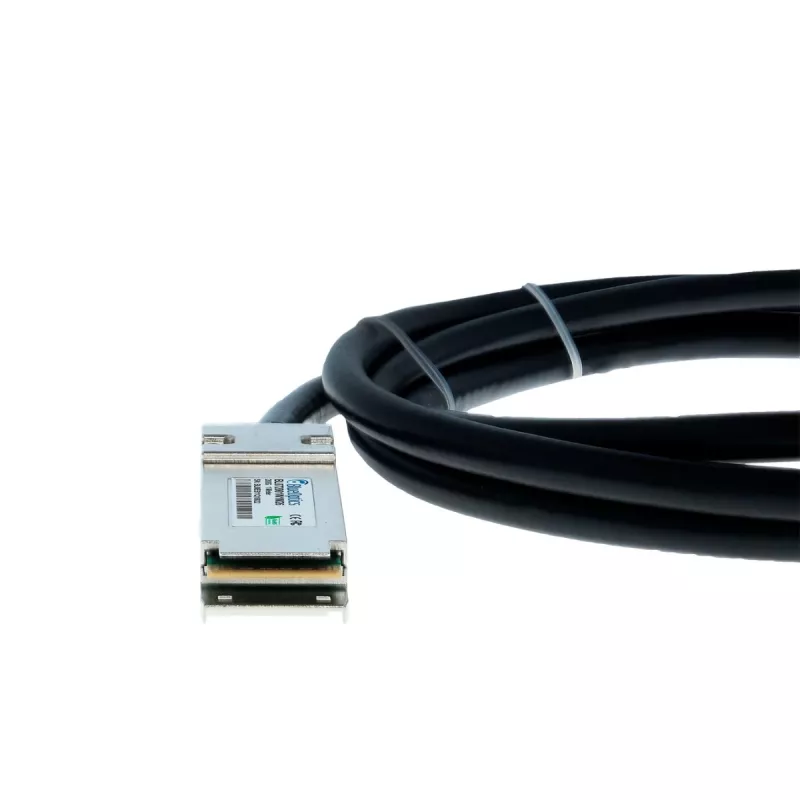

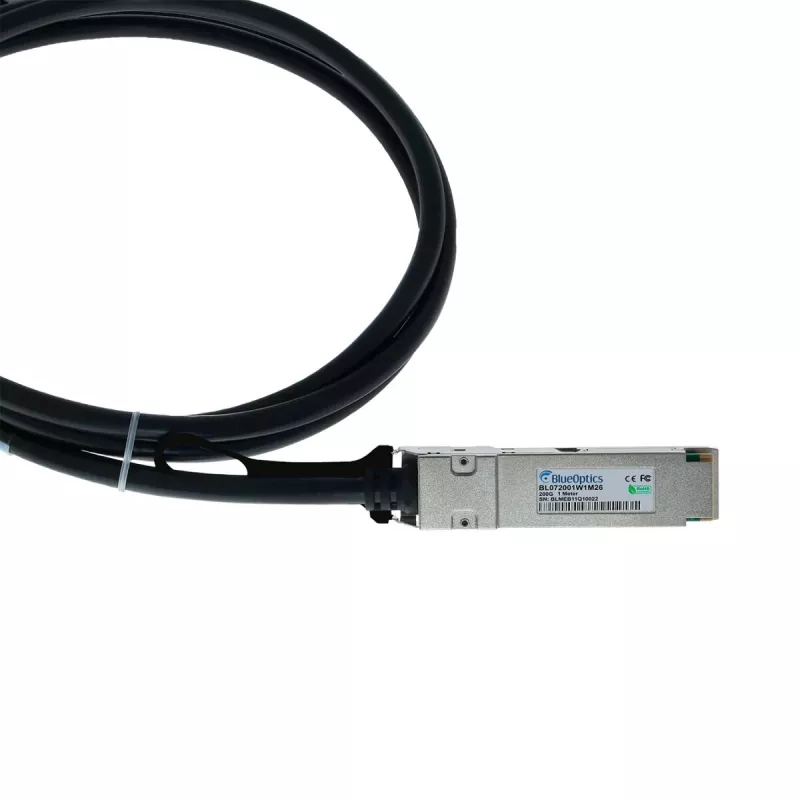

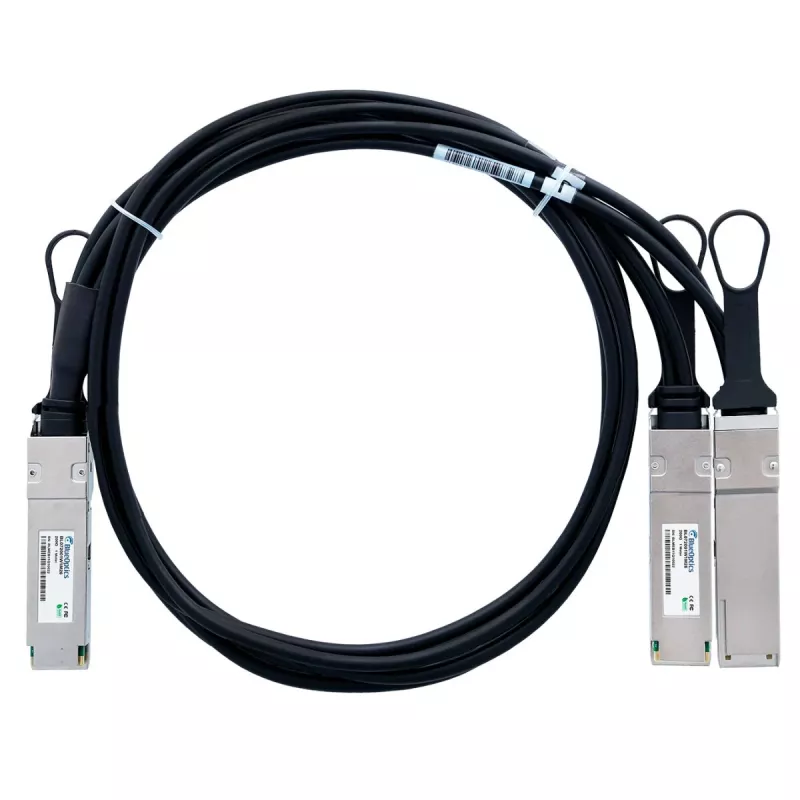

The BlueOptics HPE P06248-B22 compatible breakout Direct Attach Cable (DAC) is a high-performance passive twinaxial copper cable designed for 200 Gigabit Ethernet to 2x100 Gigabit Ethernet breakout applications. It features QSFP56 connectors on both ends, enabling seamless connectivity between switches, servers, and storage in data center environments. This cable is ideal for rack-to-rack and adjacent rack interconnections, offering low power consumption and reliable signal integrity.

Advantages

This breakout DAC provides a cost-effective and energy-efficient solution for high-speed data center networks. With passive design, it consumes less than 0.5W per end, reducing overall power usage. The twinaxial copper construction ensures low latency and high reliability, while the breakout configuration allows a single 200GbE port to connect to two 100GbE devices, maximizing port utilization.

Suitable for

• Data center interconnects
• Rack-to-rack and adjacent rack connections
• Server-to-switch and switch-to-switch links
• High-performance computing (HPC) environments

Key specifications

• Cable Type: Direct Attach Cable (DAC)
• Cable Configuration: Breakout
• Cable Technology: Twinaxial Copper
• Data Rate (Aggregate): 200 Gigabit Ethernet (200GbE)
• Data Rate (Breakout): 2x 100 Gigabit Ethernet (2x100GbE)
• Connector A: QSFP56
• Connector B: 2x QSFP56
• Passive: Yes
• Length: 3 meters
• Impedance: 100 Ohm
• Power Consumption: < 0.5W per end
• Hot-Swappable: Yes
• Operating Temperature: 0°C to 70°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both connected devices support QSFP56 interfaces and the required data rates. This cable is compatible with HPE P06248-B22 and similar equipment. Always handle with care to avoid damage to connectors.
