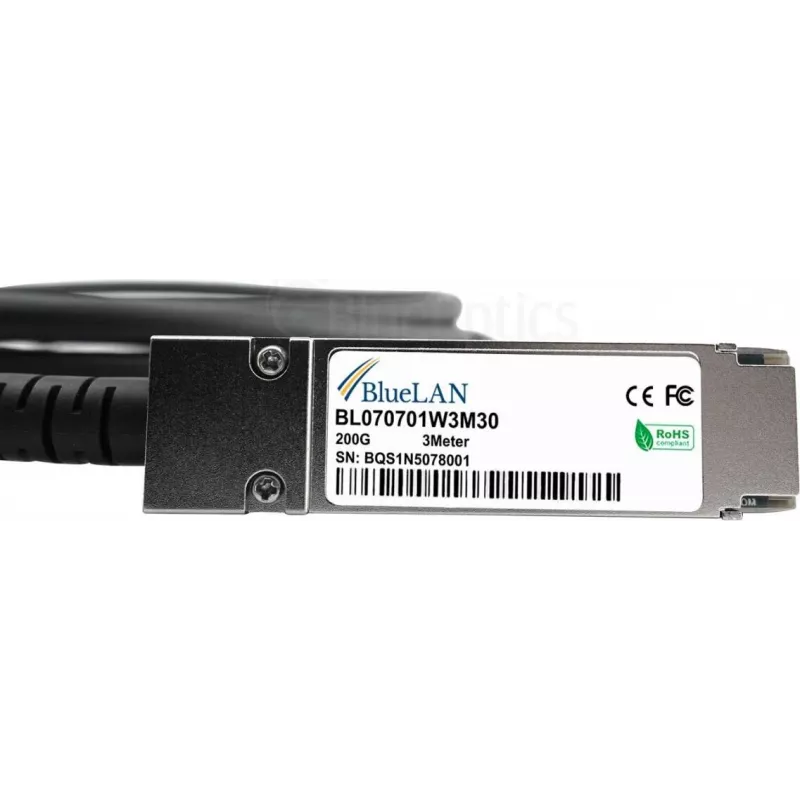

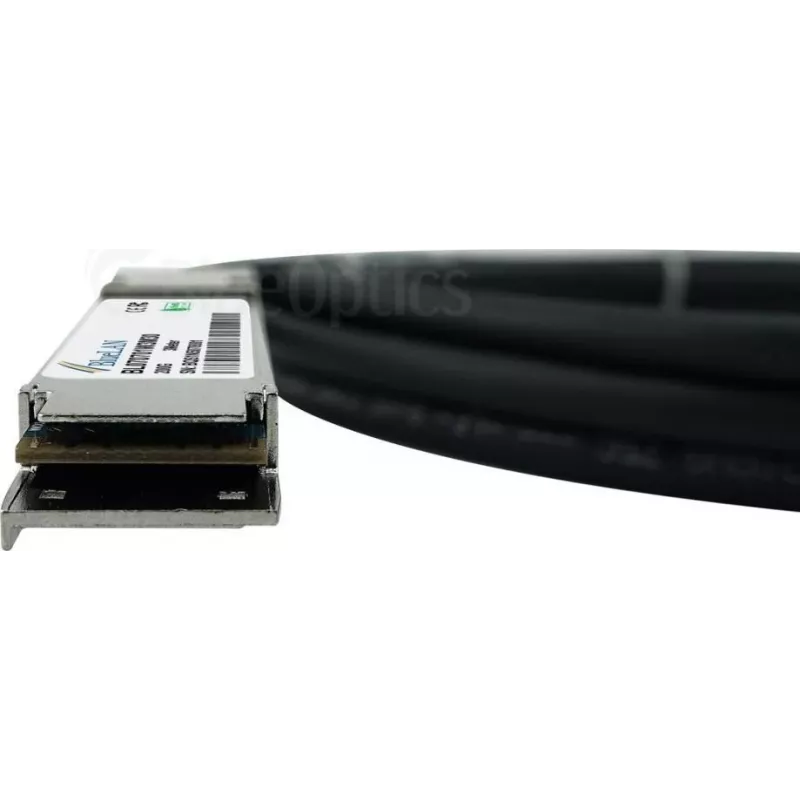

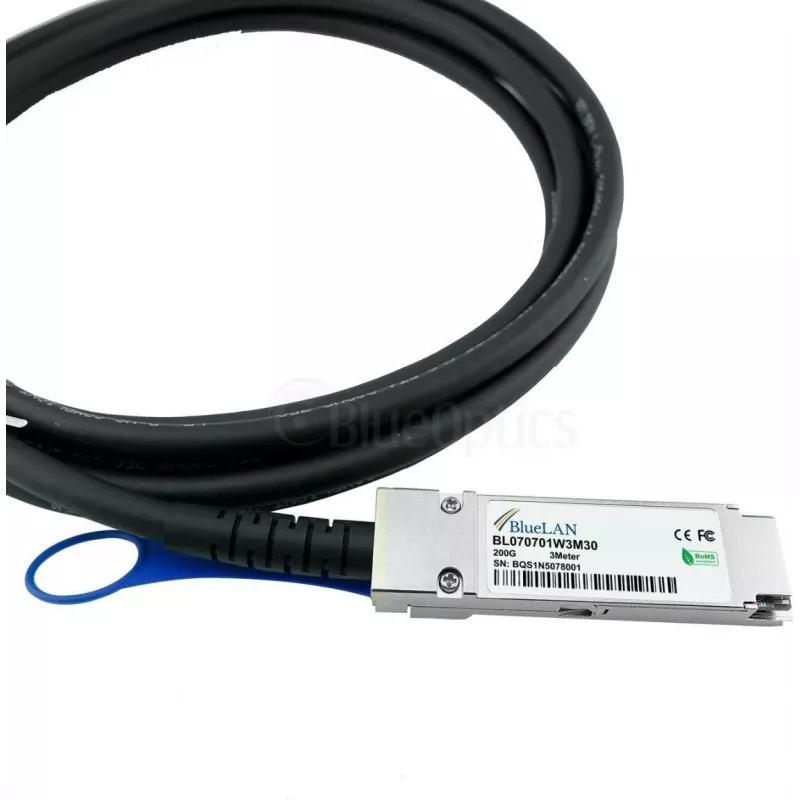

BlueOptics M-Series R5Z79-63001 Cable DAC QSFP56 200G de cobre twinax pasivo compatible con BlueLAN, 3 m R5Z79-63001-BL

High-density data centers and HPC clusters need short, reliable 200G links without the cost and power draw of optical transceivers. This BlueOptics M-Series direct attach cable (DAC) provides a passive copper QSFP56 to QSFP56 connection, tested for compatibility with HPE R5Z79-63001 and other MSA-compliant systems.

Who is it for

Network engineers and data center operators deploying 200 Gigabit Ethernet or InfiniBand within a rack or across adjacent racks. It is a plug-and-play alternative to fiber transceivers for distances up to 3 meters.

Main features

• QSFP56 form factor, hot-pluggable, MSA compliant
• Passive copper twinax construction, no external power required
• 200 Gbps data rate for Ethernet and InfiniBand protocols
• 3 meter length, ideal for top-of-rack to server connections
• Operating temperature 0°C to 70°C

Tips

Verify switch or NIC port compatibility before installation. Passive DACs have lower latency and power consumption than active optical cables, but are limited to short reaches.
