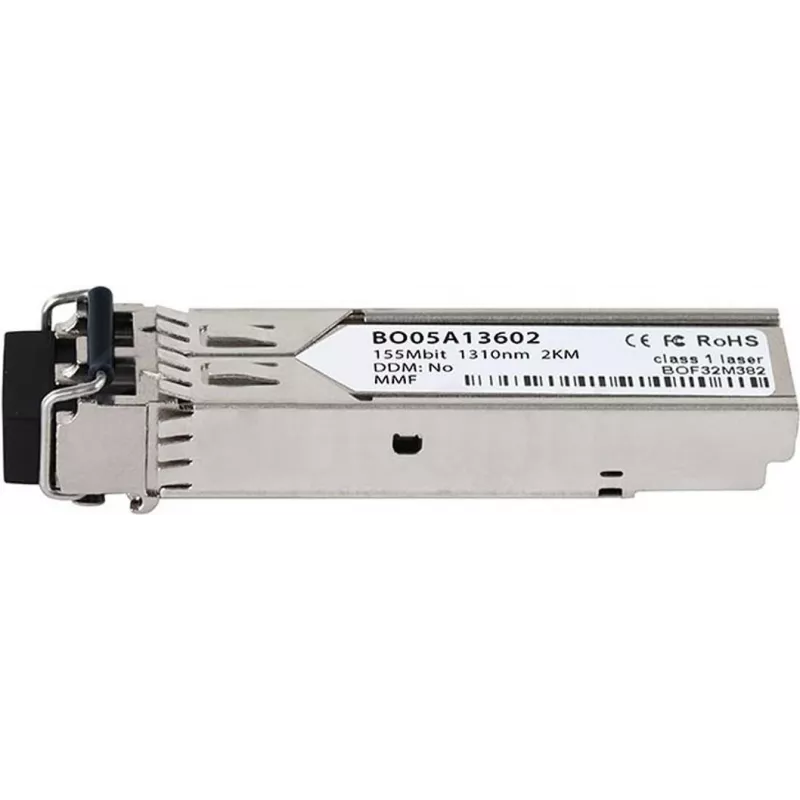

Módulo SFP de fibra óptica CBO 1100-0131-BO 155 Mbit/s LC FX 2000 m

Compact fiber optic SFP module CBO 1100-0131-BO provides 155 Mbit/s serial data transmission over optical fiber using an LC connector and an FX electrical/optical interface. The transceiver is designed for point-to-point links up to 2000 m on appropriate single-mode or multimode fiber and fits standard SFP ports for straightforward insertion and hot-swapping. The module is intended for use in telecom, industrial networking and legacy equipment that require a 155 Mbit/s optical connection while conserving rack space.

Advantages

The SFP module offers a small form factor compatible with standard SFP cages and hot-swap capability for minimal downtime. It supports both single-mode and multimode fiber transmission at the specified range, providing flexibility for different link types. With an LC duplex connector and FX interface, the unit enables stable serial data transfer at 155 Mbit/s and reduces the need for larger, fixed-format transceivers in network installations.

Suitable for

• Point-to-point fiber links up to 2000 m
• Telecommunications equipment requiring 155 Mbit/s optical ports
• Industrial networking and automation systems with fiber connectivity
• Legacy network devices that accept SFP form-factor transceivers

Key specifications

• Data rate: 155 Mbit/s serial
• Optical interface: FX
• Connector type: LC duplex
• Supported fiber types: single-mode and multimode (depending on link design)
• Maximum link distance: up to 2000 m (subject to fiber type and attenuation)
• Form factor: SFP (small form-factor pluggable)
• Hot-swappable: yes

How to use

Insert the SFP module into a compatible SFP port on your switch, router or media converter until it latches. Connect LC duplex patch cords to the module’s optical ports ensuring correct transmit/receive alignment. Power on the host device and verify link status through the device’s management interface or LED indicators. For removal, power down or disable the port if recommended by the host device, then press the module latch and pull the module straight out to avoid damage.

Recommendations

Use appropriate single-mode or multimode fiber and well-maintained LC patch cords to achieve the rated distance. Check host-device compatibility for 155 Mbit/s FX operation and SFP support. Observe ESD precautions during handling and avoid excessive bending or stress on the fiber to maintain signal integrity.
