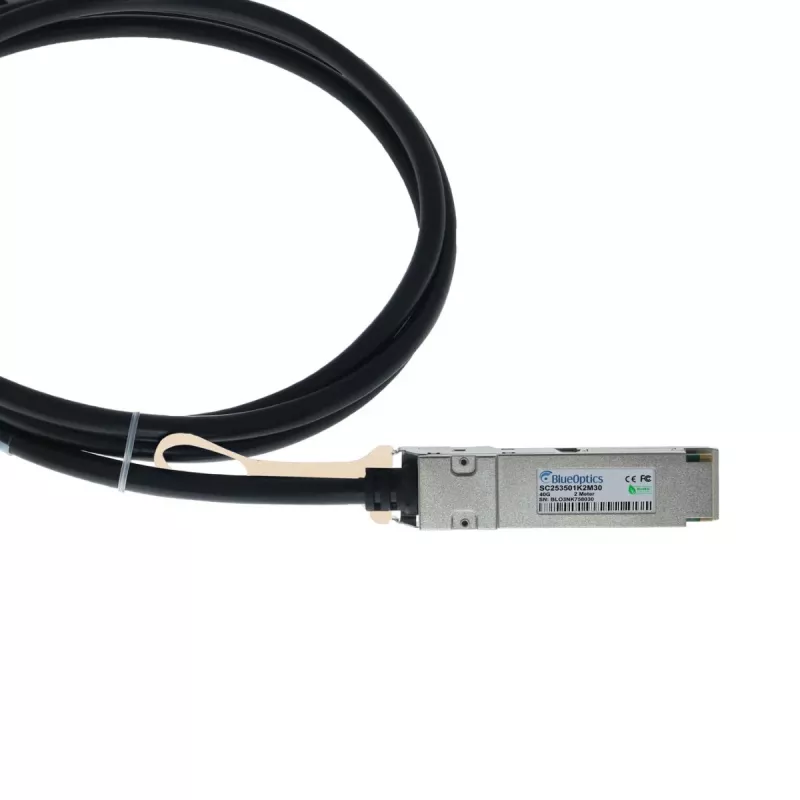

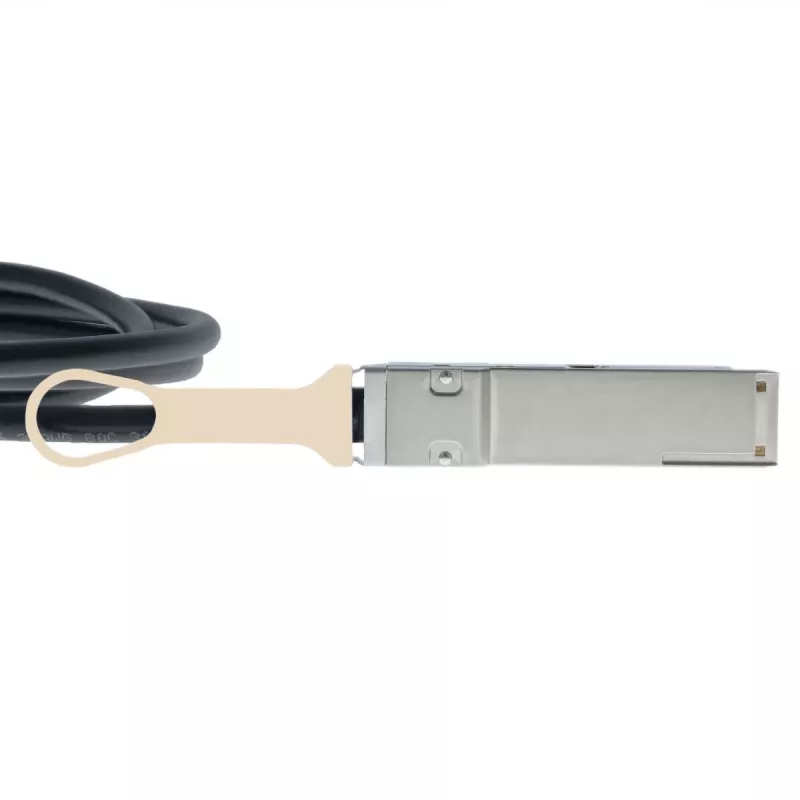

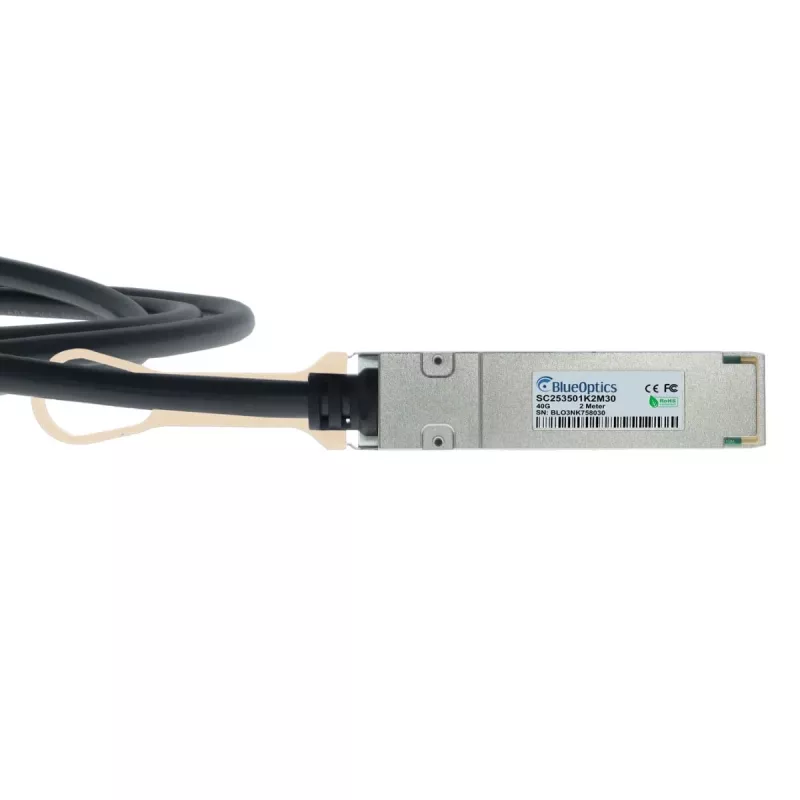

BlueOptics Molex 74764-1201 Cable de cobre de conexión directa BlueLAN QSFP+ compatible, 2m, 40Gbps, pasivo, 30 AWG, Negro

40 Gbps of raw throughput over a 2-meter passive copper link—this BlueOptics QSFP+ DAC cable delivers high-density interconnect performance without the cost or complexity of optical transceivers. Engineered for Molex 74764-1201 compatible environments, it meets QSFP+ MSA SFF-8436 specifications and supports 40 Gigabit Ethernet, InfiniBand QDR/FDR, and Fibre Channel protocols. Ideal for top-of-rack switching, HPC clusters, and enterprise data centers where latency and power budgets are tight.

Overview

The BlueOptics BlueLAN QSFP+ Direct Attach Copper cable is a passive twinax assembly terminated with QSFP+ connectors on both ends. It provides a reliable, low-power 40Gbps connection over 2 meters, using 30 AWG conductors and a durable PVC jacket. The cable is fully compliant with the QSFP+ MSA and RoHS, ensuring seamless interoperability with Molex 74764-1201 and other MSA-compliant QSFP+ ports. With a power consumption of less than 0.5W, it significantly reduces energy costs compared to active optical cables.

What stands out

• Passive design: no signal conditioning, ultra-low latency, and minimal power draw (<0.5W)
• 40 Gbps data rate for bandwidth-intensive applications
• QSFP+ MSA compliant, compatible with Molex 74764-1201 and other standard QSFP+ ports
• 30 AWG copper conductors for optimal signal integrity over 2 meters
• Supports 40GbE, InfiniBand QDR/FDR, and Fibre Channel protocols
• Operating temperature range 0°C to 70°C, suitable for data center environments
• RoHS compliant, PVC jacket

Technical details

• Cable Type: Direct Attach Copper (DAC)
• Connector Type (End A): QSFP+
• Connector Type (End B): QSFP+
• Cable Length: 2 meters
• Data Rate: 40 Gbps
• Compatibility: Molex 74764-1201 compatible, QSFP+ MSA compliant
• Active/Passive: Passive
• Cable Gauge (AWG): 30 AWG
• Protocol Support: 40 Gigabit Ethernet, InfiniBand QDR/FDR, Fibre Channel
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Voltage Supply: 3.3V
• Power Consumption: < 0.5W
• Compliance: SFF-8436 (QSFP+ MSA), RoHS
• Application: Data Center Interconnect, High-Performance Computing (HPC), Enterprise Networking
• Color: Black

Our verdict

A cost-effective, energy-efficient solution for short-reach 40Gbps connectivity in dense data center environments. Its passive design ensures minimal latency and power consumption, making it an excellent choice for Molex-compatible QSFP+ deployments.
