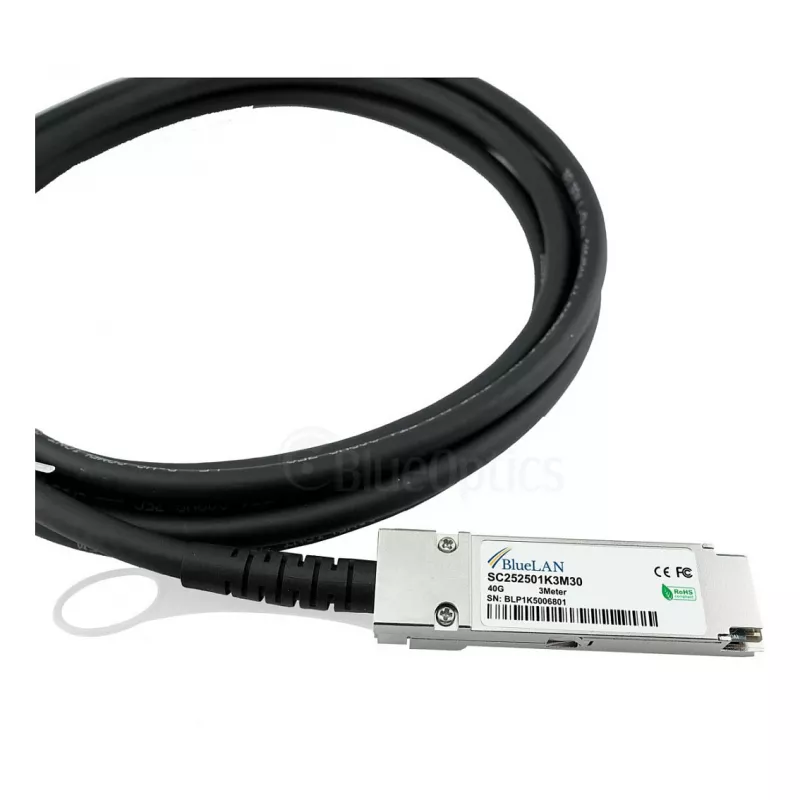

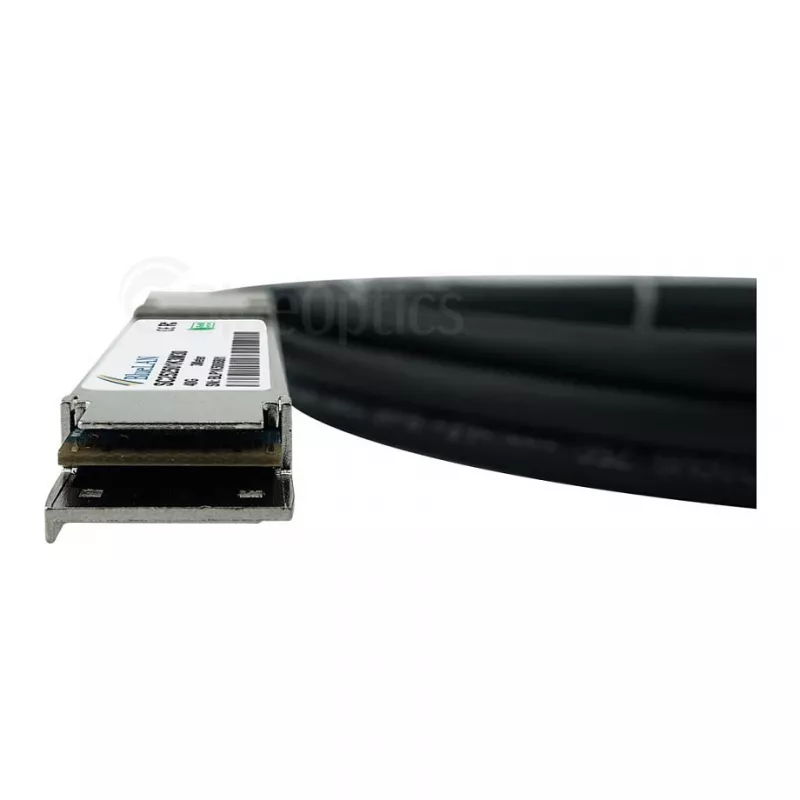

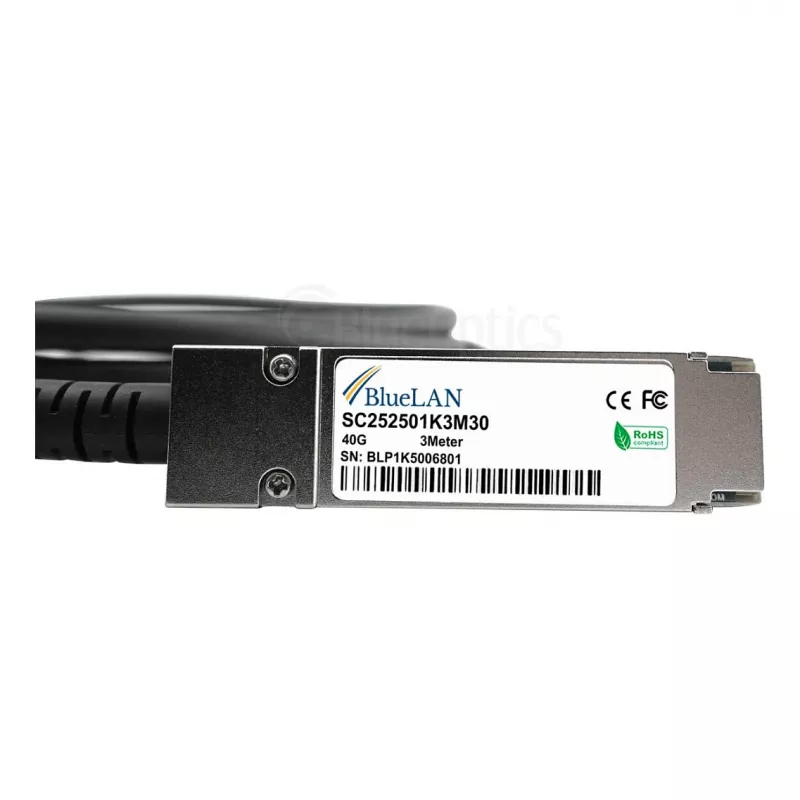

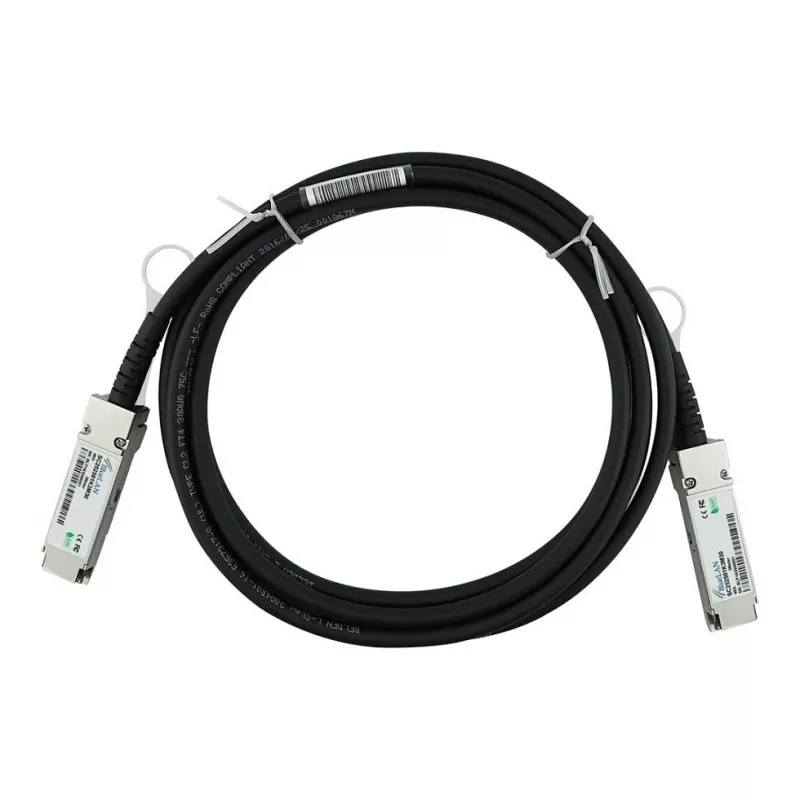

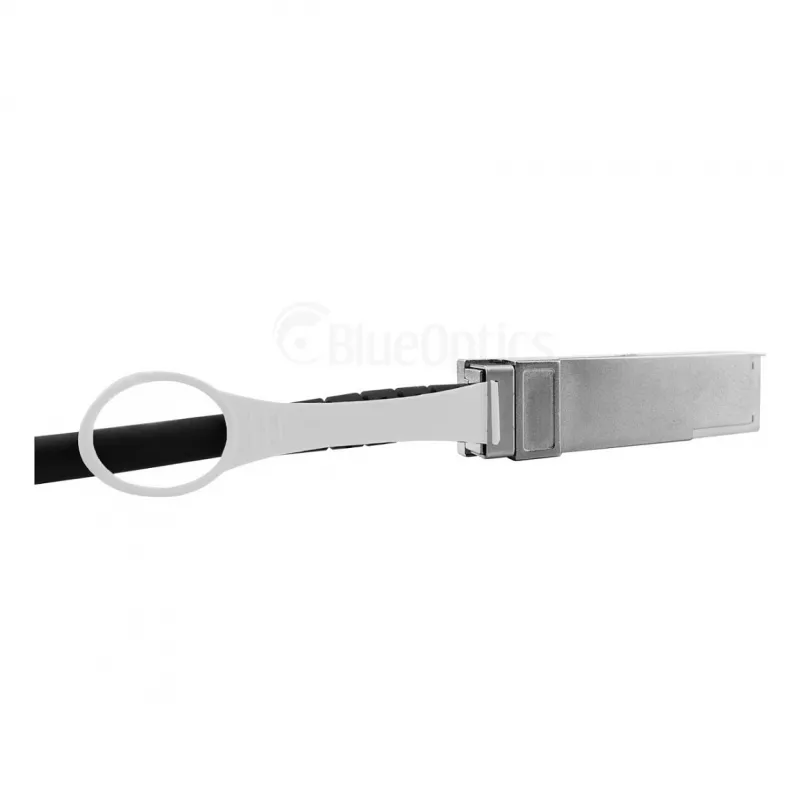

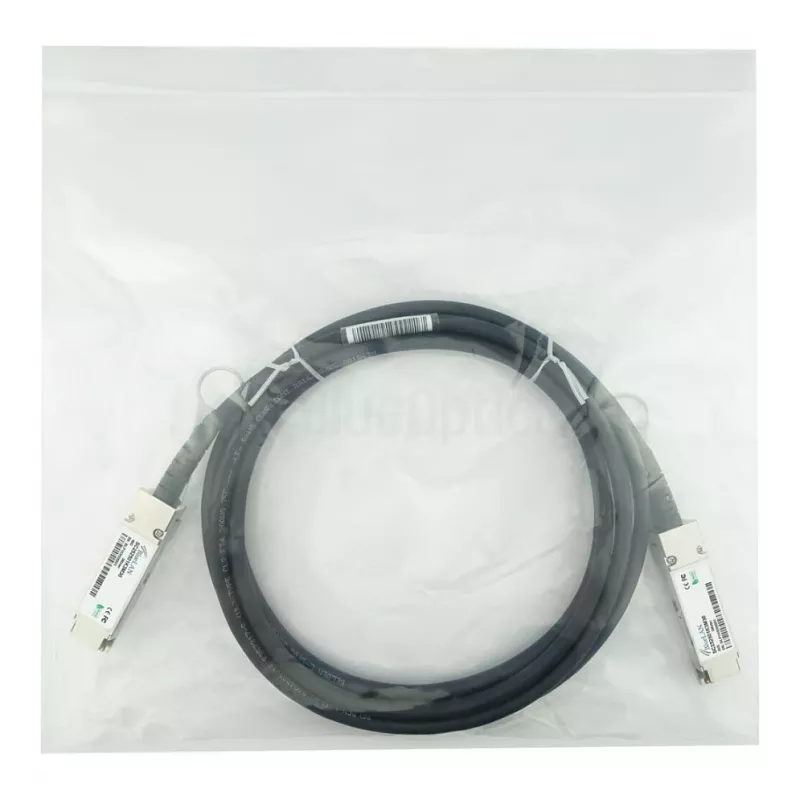

BlueOptics Networks 10313 compatible BlueLAN DAC QSFP+ 40GBASE-CR4 cable direct attach pasivo, 3m (10313-BL)

The BlueOptics Networks 10313 compatible BlueLAN DAC QSFP+ Direct Attach Cable is a high-performance, passive copper cable designed for 40 Gigabit Ethernet and InfiniBand QDR applications. It provides a cost-effective, low-power solution for short-range interconnects within racks or between adjacent racks, ensuring reliable data transmission at 40 Gbps over a 3-meter length.

Advantages

This direct attach cable eliminates the need for separate transceivers and fiber optic cabling, reducing overall system cost and complexity. Its passive design ensures zero power consumption, making it an energy-efficient choice for data centers. The 30 AWG wire gauge offers flexibility for easy cable management, while the QSFP+ form factor guarantees hot-swappable installation and MSA compliance for broad compatibility.

Suitable for

• Data center rack-to-rack and intra-rack connectivity
• High-performance computing clusters
• Enterprise network switches and routers with QSFP+ ports
• 40GBASE-CR4 Ethernet and InfiniBand QDR environments

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP+ to QSFP+
• Data Transfer Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Supported Protocols: Ethernet, InfiniBand QDR
• Cable Length: 3 Meter
• Wire Gauge: 30 AWG
• Cable Material: Copper
• Cable Technology: Passive
• Compatibility: Extreme Networks 10313 and MSA-compliant QSFP+ ports
• Hot-Swappable: Yes
• Power Consumption: Low (passive, no external power)
• Form Factor: QSFP+ (Quad Small Form-Factor Pluggable Plus)

Recommendations

For optimal performance, ensure your network equipment supports QSFP+ ports and 40GBASE-CR4 standard. This cable is ideal for short-distance, high-speed connections within data centers.
