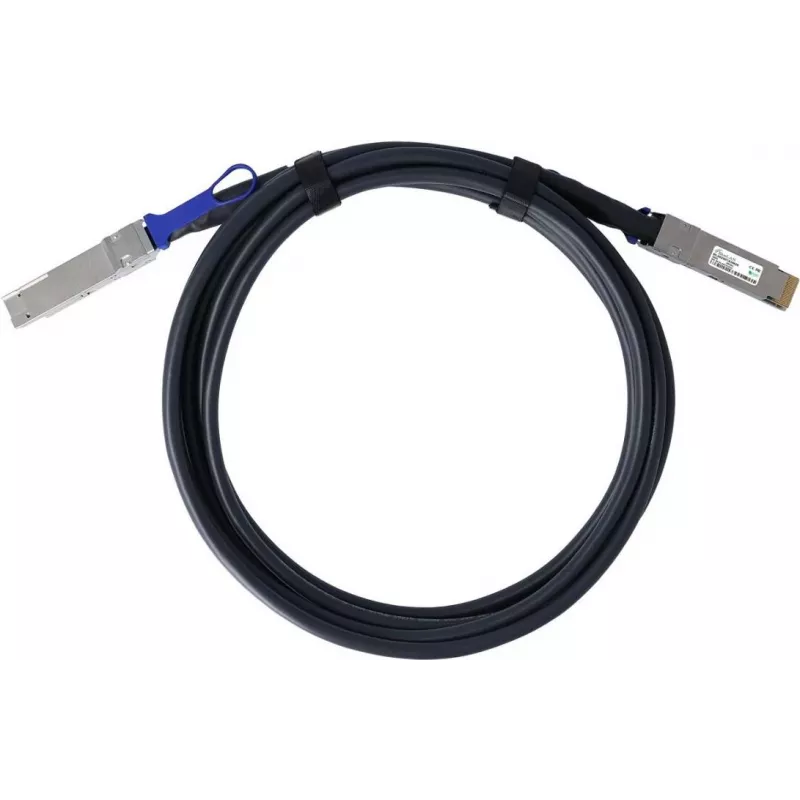

BlueOptics NVIDIA 980-9I35P-00W002 BlueLAN BL292901X2M26 cable direct attach QSFP-DD, 400GBASE-CR4, 26 AWG, 2 metros

The BlueOptics NVIDIA 980-9I35P-00W002 BlueLAN BL292901X2M26 is a high-performance QSFP-DD Direct Attach Copper (DAC) cable designed for 400 Gbps data transmission. This passive copper cable supports the 400GBASE-CR4 standard and is ideal for short-reach interconnects in data centers and high-performance computing environments.

Advantages

This DAC cable offers ultra-low power consumption, hot-swappable capability, and reliable performance for high-speed networking. It is compliant with IEEE 802.3bj, SFF-8636, and SFF-8665 standards, ensuring interoperability with a wide range of networking equipment.

Suitable for

• Data Center Interconnects
• High-Performance Computing (HPC)
• Network Switches and Servers
• NVIDIA platforms (compatible with NVIDIA 980-9I35P-00W002)

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Connector Type: QSFP-DD to QSFP-DD
• Data Transfer Rate: 400 Gbps
• Ethernet Standard: 400GBASE-CR4
• Cable Length: 2 Meter
• Wire Gauge: 26 AWG
• Cable Material: Copper
• Transceiver Type: Passive
• Form Factor: QSFP-DD
• Number of Data Lanes: 4
• Hot-Swappable: Yes
• Power Consumption: Ultra-low (Passive)
• Compliance: IEEE 802.3bj, SFF-8636, SFF-8665

Recommendations

This cable is designed for use in QSFP-DD ports and is compatible with NVIDIA platforms. Ensure your equipment supports QSFP-DD form factor and 400GBASE-CR4 standard for optimal performance.
