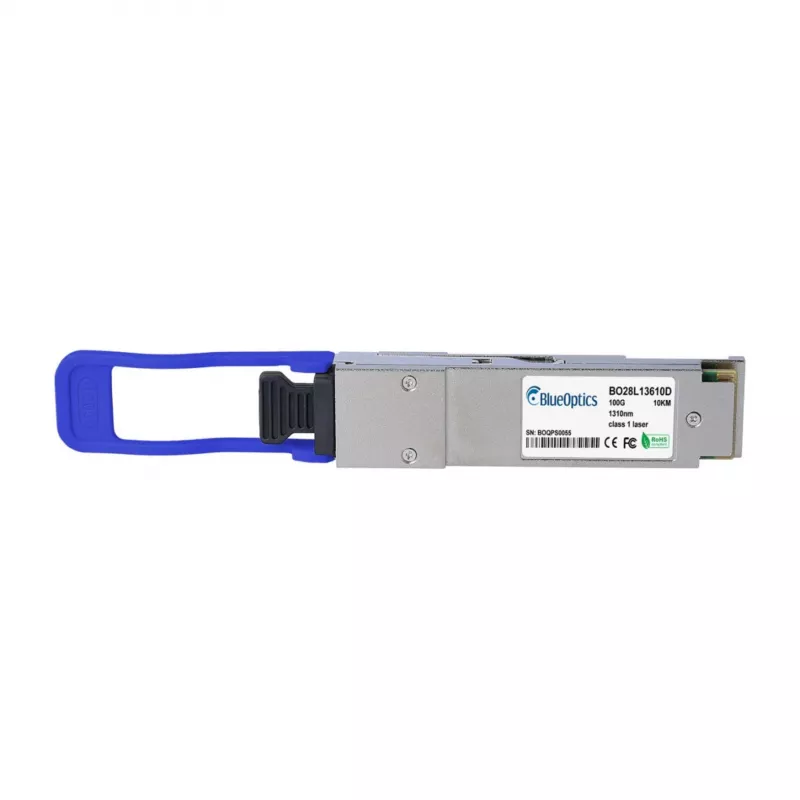

BlueOptics QSFP28 100GBASE-LR4 10km LC Duplex SMF Transceptor Compatible con Finisar FTLC1151RDPL

The BlueOptics BO28L13610D is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with Finisar FTLC1151RDPL and offers reliable, long-reach connectivity over single-mode fiber. This hot-pluggable module supports 100GBASE-LR4 protocol with a reach of up to 10 km, making it ideal for data center interconnects and enterprise networks.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Features LAN WDM wavelengths for efficient wavelength division multiplexing. Low power consumption of max 4.5 W and digital diagnostics monitoring (DDM) for real-time performance tracking. Compliant with IEEE 802.3ba and SFF standards, ensuring interoperability.

Suitable for

• 100 Gigabit Ethernet links in data centers
• Enterprise network backbone connections
• Service provider metro and access networks
• High-speed storage area networks (SAN)

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Protocol: 100GBASE-LR4
• Max Reach: 10 km (6.2 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Duplex
• Wavelengths: LAN WDM (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm)
• Power Consumption: Max 4.5 W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Compliance: IEEE 802.3ba, SFF-8665, SFF-8636, RoHS

Recommendations

For optimal performance, use with single-mode fiber patch cables (LC duplex) and ensure proper cleaning of optical connectors. This transceiver is designed for use in compatible QSFP28 ports of switches, routers, and network interface cards.
