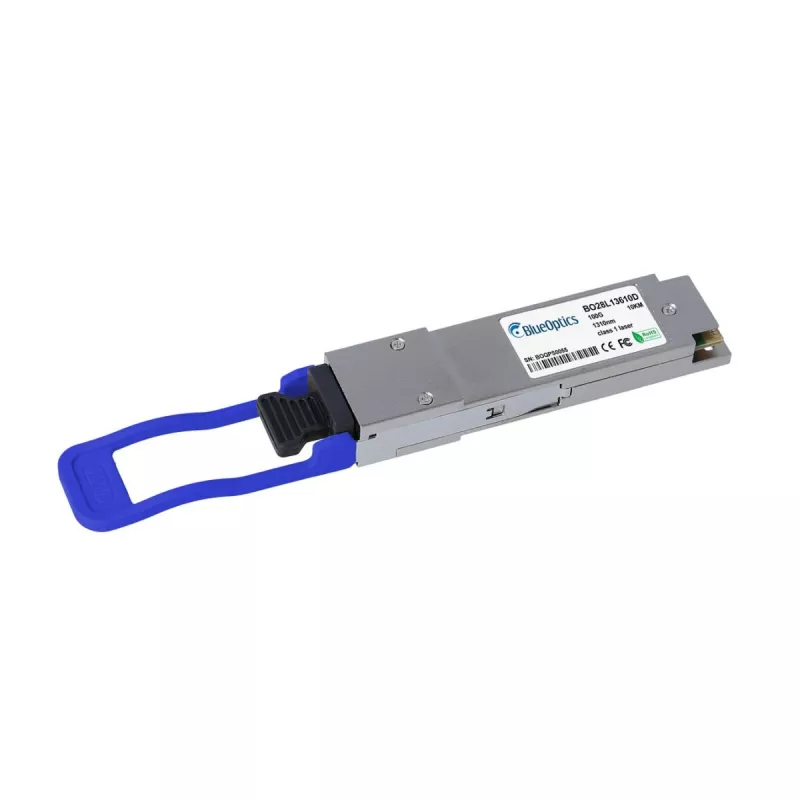

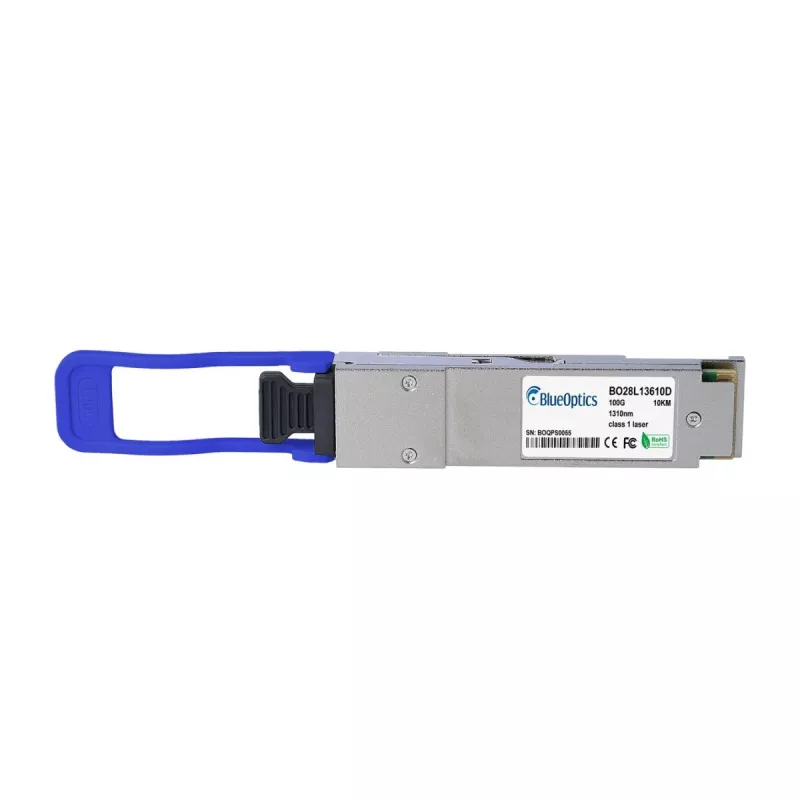

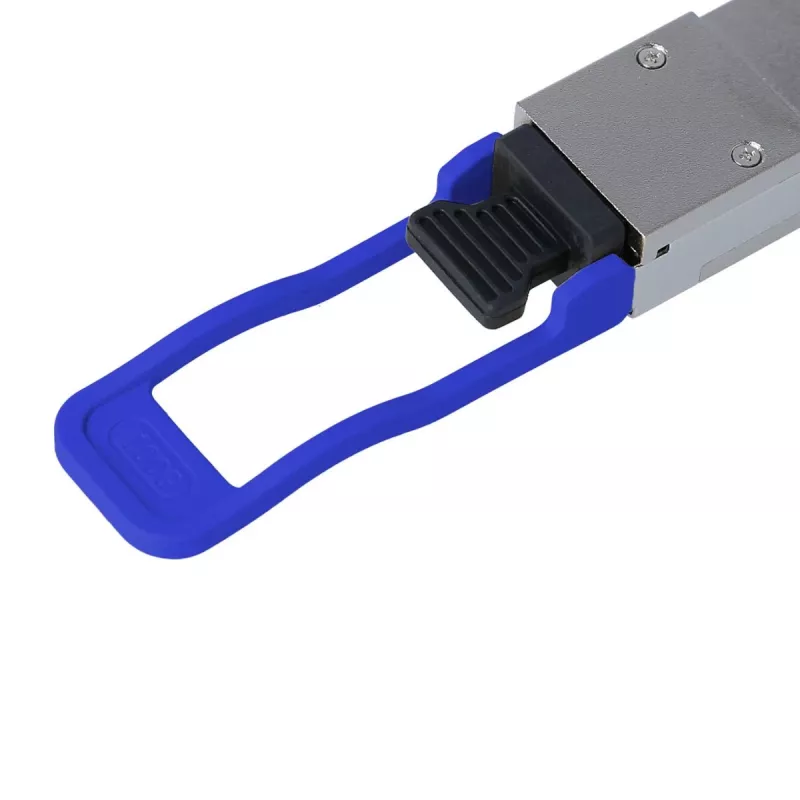

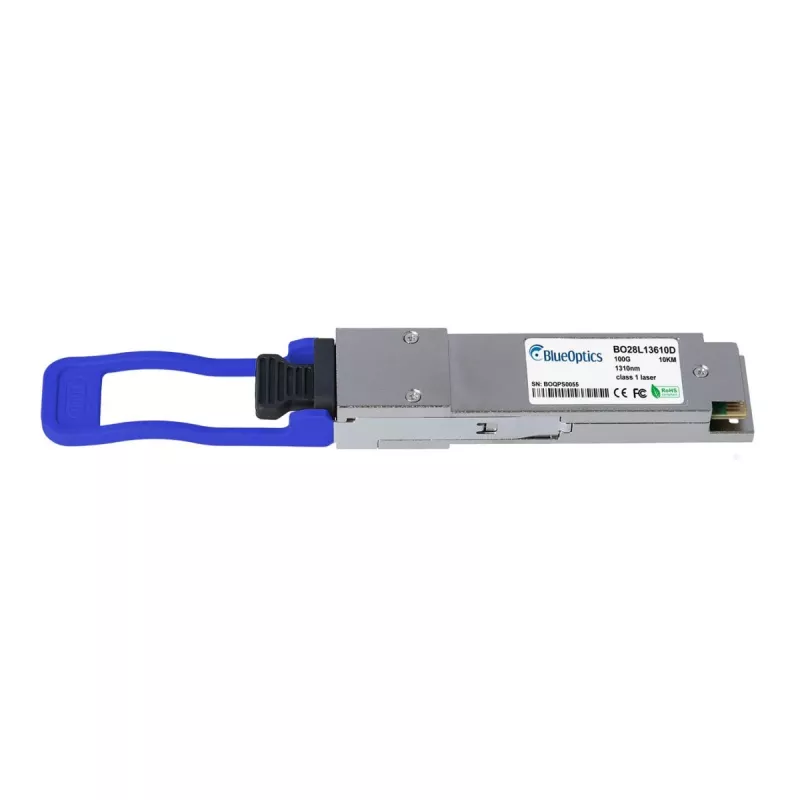

BlueOptics QSFP28 100GBASE-LR4 Transceptor Compatible con Ruckus E100G-QSFP28-LR4-LP-10KM, 10km, LC Duplex, SMF

The BlueOptics BO28L13610D is a high-performance QSFP28 transceiver module designed for 100 Gigabit Ethernet networks. It is fully compatible with Ruckus E100G-QSFP28-LR4-LP-10KM equipment and delivers reliable connectivity over single-mode fiber at distances up to 10 km. This hot-pluggable module supports Digital Diagnostic Monitoring (DDM) and complies with IEEE 802.3ba 100GBASE-LR4 and QSFP28 MSA standards.

Advantages

Cost-effective alternative to OEM modules without compromising performance or reliability. Low power consumption (<3.5W) and wide operating temperature range (0°C to 70°C) ensure stable operation in various environments. Hot-pluggable design simplifies installation and maintenance.

Suitable for

• Data center interconnects
• Enterprise network uplinks
• Service provider metro networks
• High-performance computing clusters

Key specifications

• Transceiver Type: QSFP28
• Data Rate: 100 Gbps (100GBASE-LR4)
• Max Distance: 10 km
• Fiber Type: Single-Mode (OS2)
• Connector: LC Duplex
• Wavelengths: 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm (LAN WDM)
• DDM/DOM: Yes
• Power Consumption: <3.5W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3ba, QSFP28 MSA, RoHS

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of fiber connectors. This module is designed for Ruckus E100G-QSFP28-LR4-LP-10KM compatible systems.
