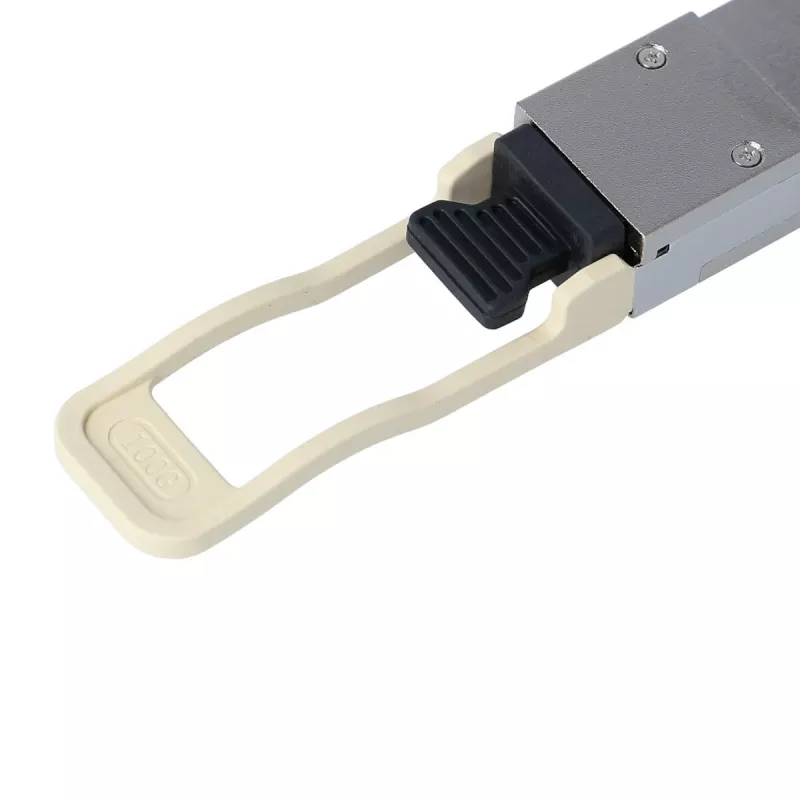

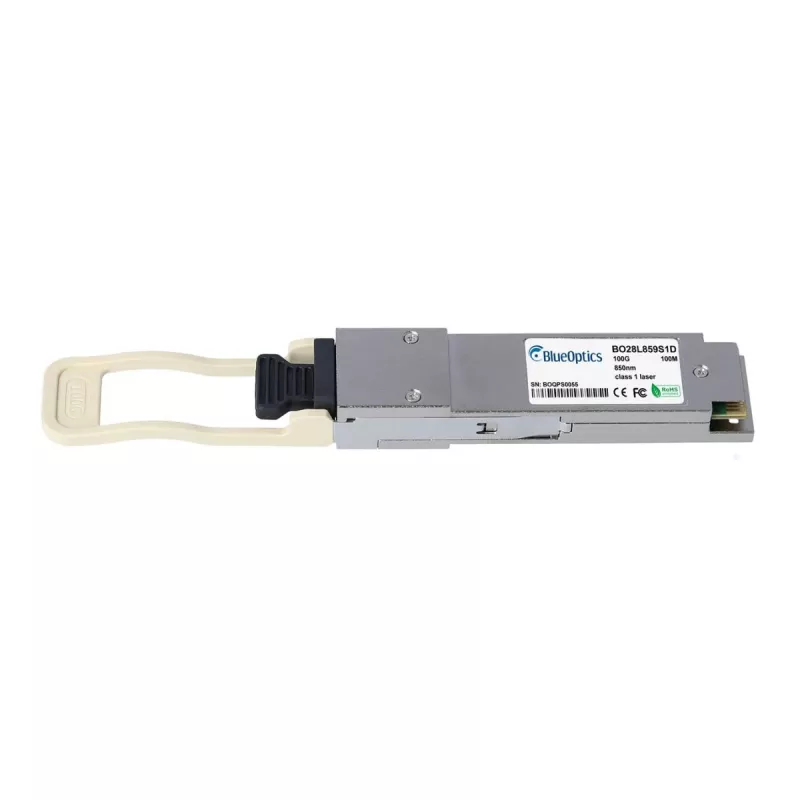

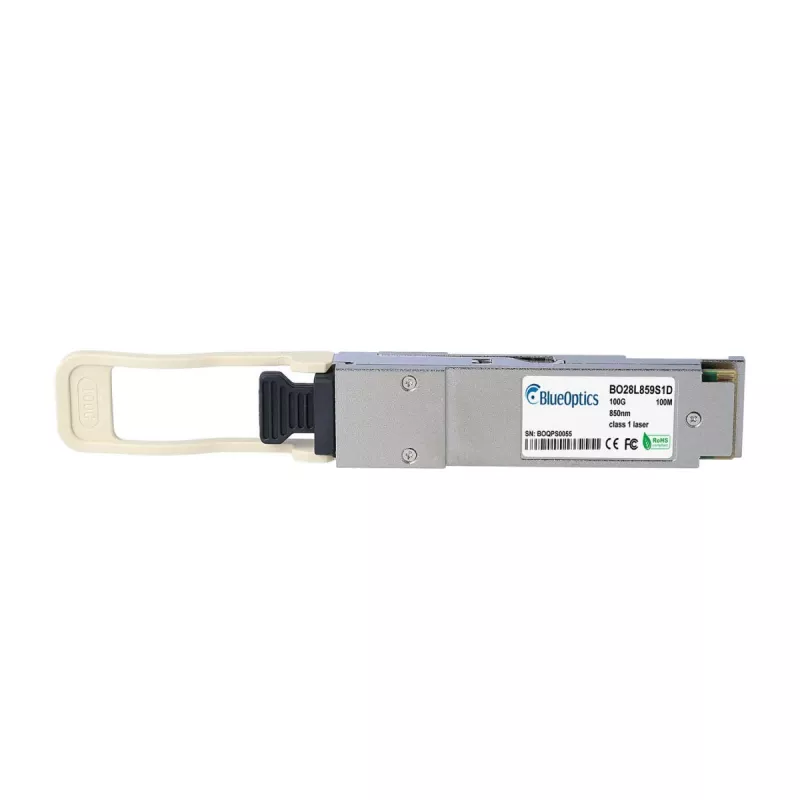

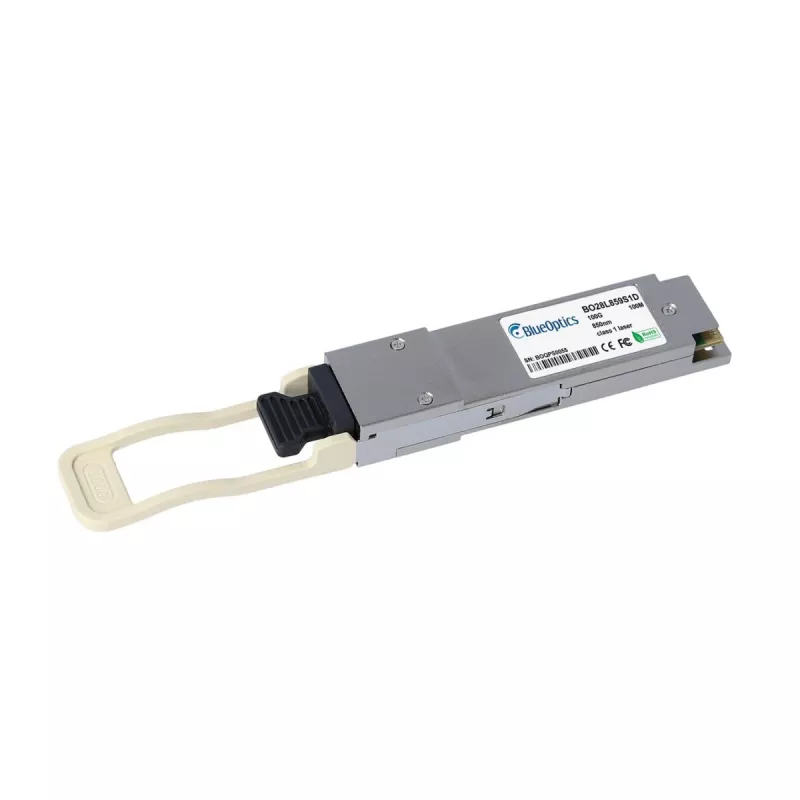

BlueOptics QSFP28 100GBASE-SR4 Transceptor Compatible con Ruckus E100G-QSFP28-SR4-A

The BlueOptics QSFP28 100GBASE-SR4 transceiver is a high-performance optical module designed for 100 Gigabit Ethernet applications. It is fully compatible with Ruckus E100G-QSFP28-SR4-A equipment, ensuring seamless integration and reliable operation. This transceiver supports multi-mode fiber (MMF) and delivers data rates up to 100 Gbps over distances of up to 100 meters on OM4 fiber.

Advantages

This BlueOptics transceiver offers cost-effective connectivity without compromising on quality. It features hot-pluggable design, low power consumption under 3.5W, and digital diagnostics monitoring (DDM) for real-time performance tracking. The VCSEL laser technology ensures efficient and stable transmission.

Suitable for

• Data center interconnects
• High-speed networking in enterprise and cloud environments
• 100GBASE-SR4 compliant network infrastructure
• Ruckus E100G-QSFP28-SR4-A compatible systems

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Protocol: 100GBASE-SR4
• Wavelength: 850 nm
• Max Distance: 100m (OM4 MMF), 70m (OM3 MMF)
• Connector Type: MPO/MTP-12 (Female)
• Fiber Type: Multi-Mode Fiber (MMF)
• Digital Diagnostics Monitoring (DDM): Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 3.5W
• Hot-Pluggable: Yes
• Compliance: IEEE 802.3bm, SFF-8665, SFF-8636
• Compatibility: Ruckus E100G-QSFP28-SR4-A

Recommendations

For optimal performance, use with OM4 or OM3 multi-mode fiber cables and ensure proper MPO/MTP connector alignment. This transceiver is ideal for upgrading network infrastructure to 100G speeds.
