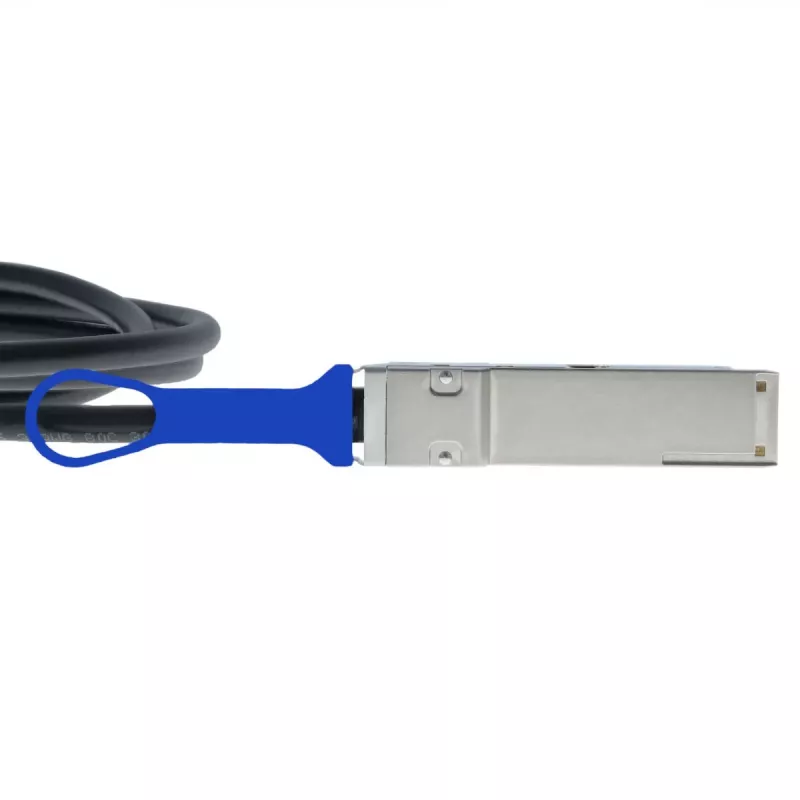

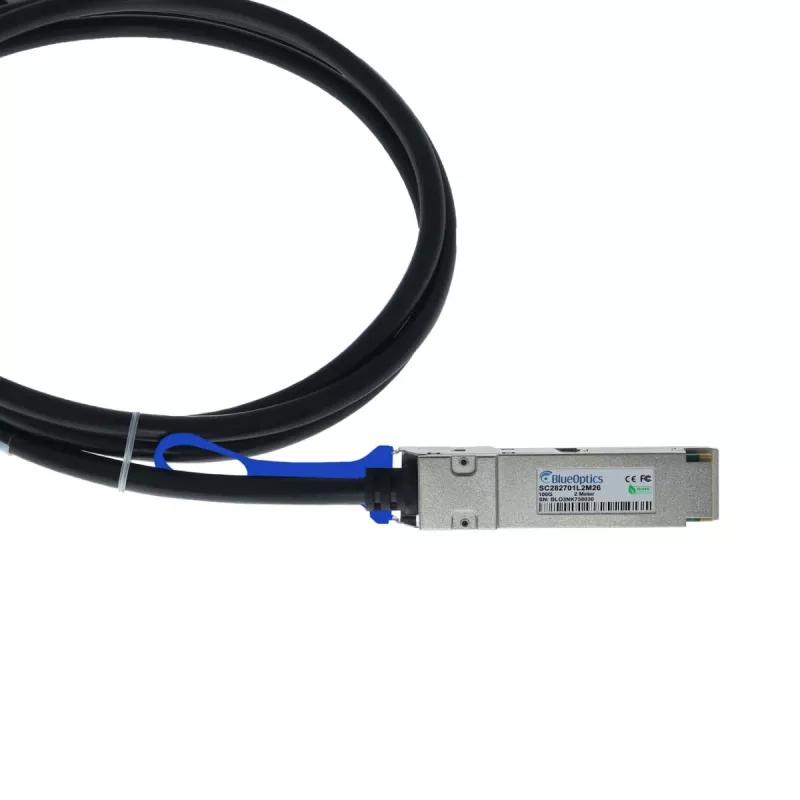

BlueOptics QSFP28-4SFP28-DAC-3M Compatible BlueLAN Cable Breakout QSFP28 DAC 3m

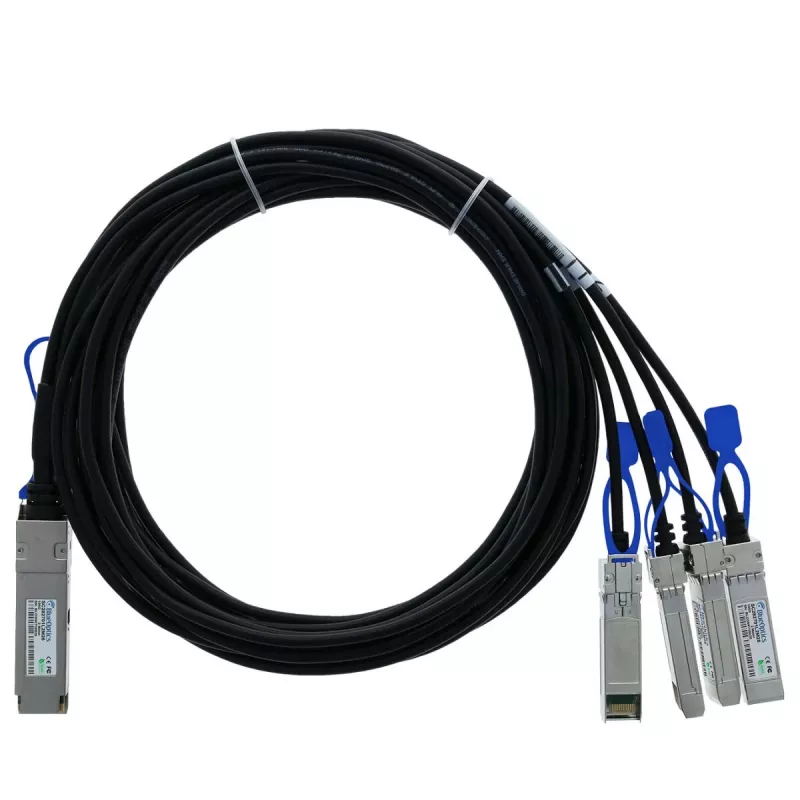

The BlueOptics QSFP28-4SFP28-DAC-3M is a high-performance direct attach copper (DAC) breakout cable designed for 100 Gigabit Ethernet applications. This passive copper cable provides a cost-effective and low-power solution for short-range interconnects in data centers and high-performance computing environments. It breaks out a single QSFP28 port into four SFP28 ports, enabling flexible network architecture.

Advantages

This DAC breakout cable offers several key benefits: low power consumption (<0.5W), hot-swappable design for easy installation, and full compatibility with BlueLAN and industry-standard QSFP28/SFP28 ports. The 26 AWG construction ensures reliable signal integrity over 3 meters, while the PVC jacket provides durability.

Suitable for

• 100 Gigabit Ethernet connections
• Data center top-of-rack to server interconnects
• High-performance computing (HPC) clusters
• Network aggregation and breakout applications

Key specifications

• Connector Type A: QSFP28
• Connector Type B: 4x SFP28
• Cable Length: 3 meters
• Max Data Rate (Aggregate): 100 Gbps
• Max Data Rate (Per Lane): 25 Gbps
• Breakout Configuration: 1x QSFP28 to 4x SFP28
• Cable Gauge: 26 AWG
• Cable Type: Passive Copper
• Compatibility: BlueLAN and industry-standard QSFP28/SFP28 ports
• Standards Compliance: IEEE 802.3bj, SFF-8665, SFF-8402
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C
• Jacket Material: PVC

Recommendations

For optimal performance, ensure that both the QSFP28 and SFP28 ports are compatible with passive DAC cables. This cable is ideal for short-distance, high-bandwidth links within a rack or between adjacent racks.
