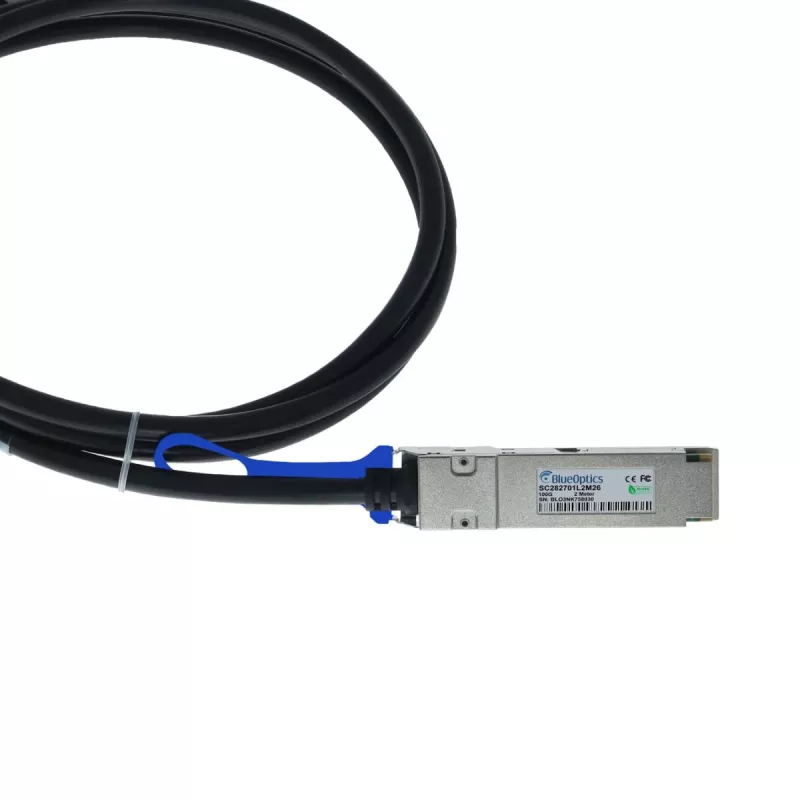

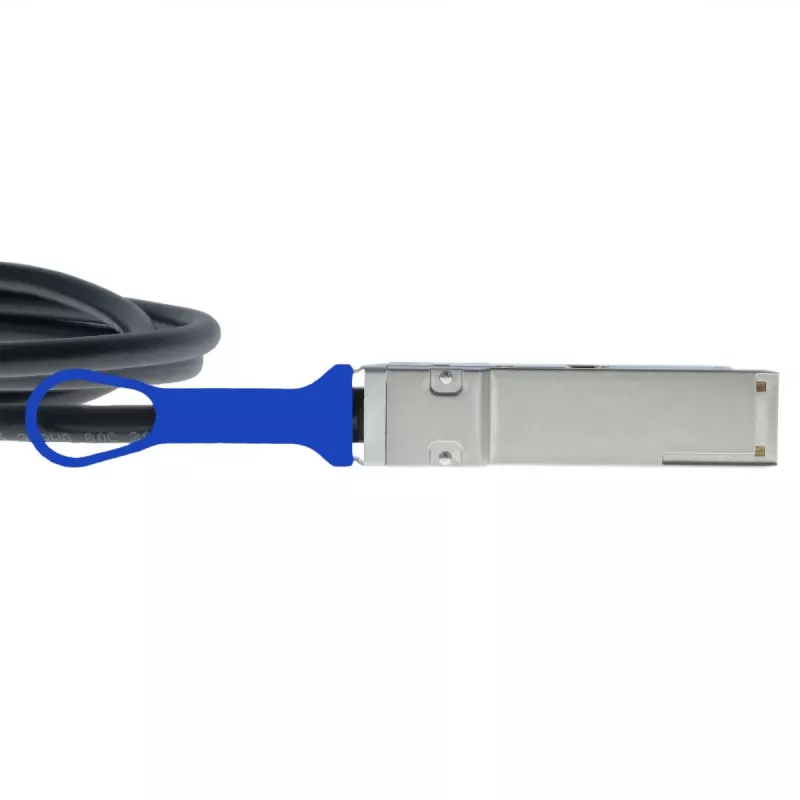

BlueOptics Ruckus 100G-QSFP-4SFP-P-0301 Compatible BlueLAN Cable Breakout DAC QSFP28 3m

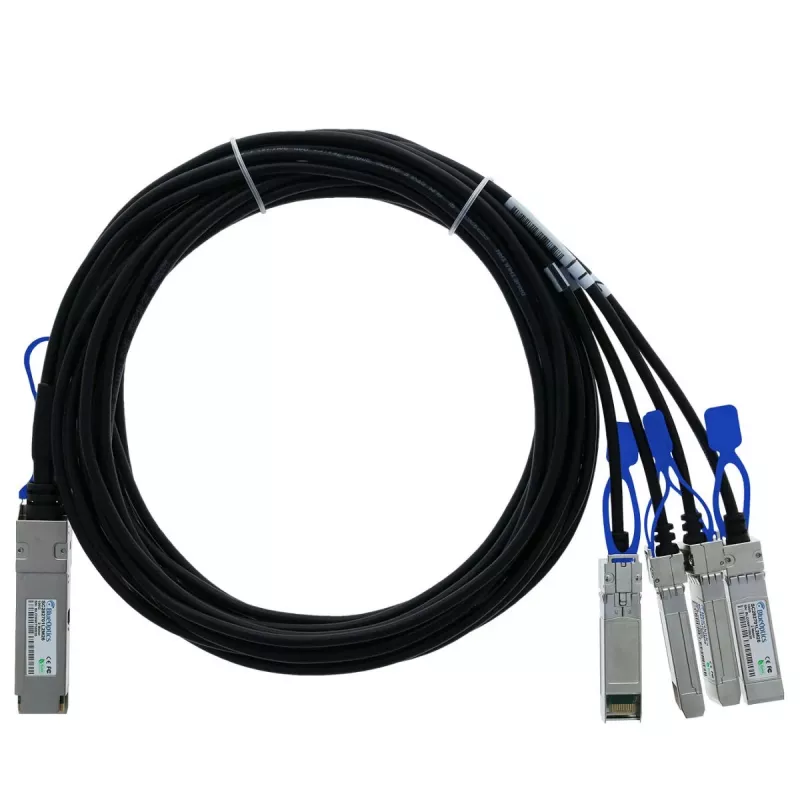

The BlueOptics Ruckus 100G-QSFP-4SFP-P-0301 Compatible BlueLAN QSFP28 DAC Breakout Cable is a high-performance direct attach copper cable designed for reliable 100 Gigabit Ethernet connectivity. This passive twinax breakout cable converts a single QSFP28 port into four SFP28 ports, each supporting 25 Gbps, making it ideal for data center and enterprise networking applications.

Advantages

This cable offers a cost-effective and low-power solution for high-speed interconnects. With a length of 3 meters (9.84 ft) and 26 AWG wire gauge, it provides excellent signal integrity and flexibility. The passive design ensures near-zero power consumption (<0.1W) and hot-swappable convenience, reducing deployment complexity.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Enterprise network aggregation
• Ruckus 100G-QSFP-4SFP-P-0301 compatible switches and routers

Key specifications

• Product Type: Direct Attach Cable (DAC) Breakout Cable
• Connector A: QSFP28
• Connector B: 4x SFP28
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Cable Length: 3 meters
• Cable Material: Copper (Passive Twinax)
• AWG: 26 AWG
• Jacket Material: PVC
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: <0.1W
• Standards: IEEE 802.3bj, SFF-8665, SFF-8636
• RoHS Compliant

Recommendations

For optimal performance, ensure that both the switch and server ports support QSFP28 and SFP28 respectively. This cable is fully compatible with Ruckus 100G-QSFP-4SFP-P-0301 and other standard QSFP28/SFP28 devices. Verify your equipment's compatibility before installation.
