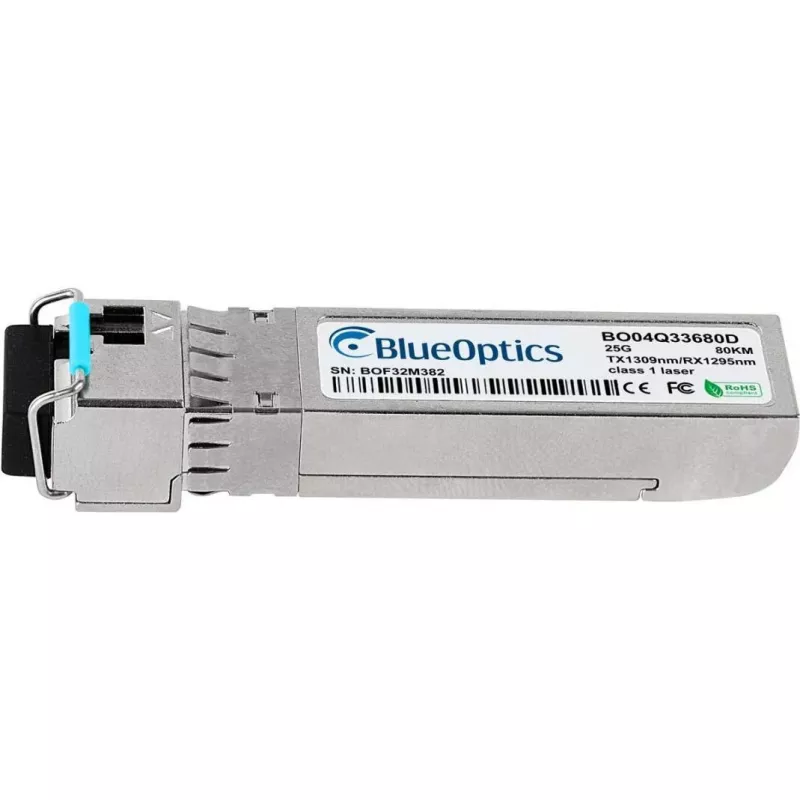

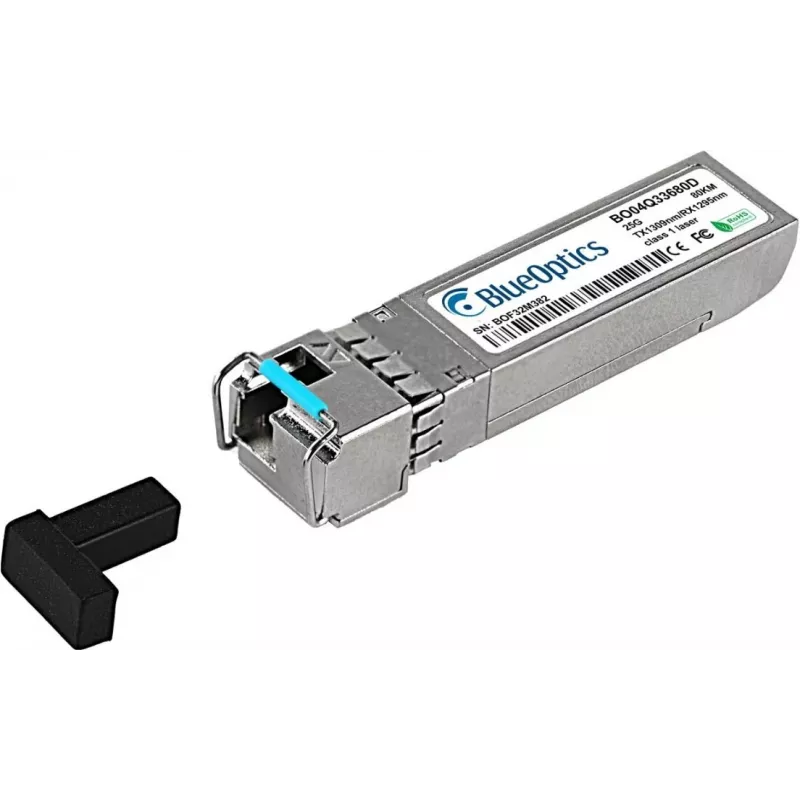

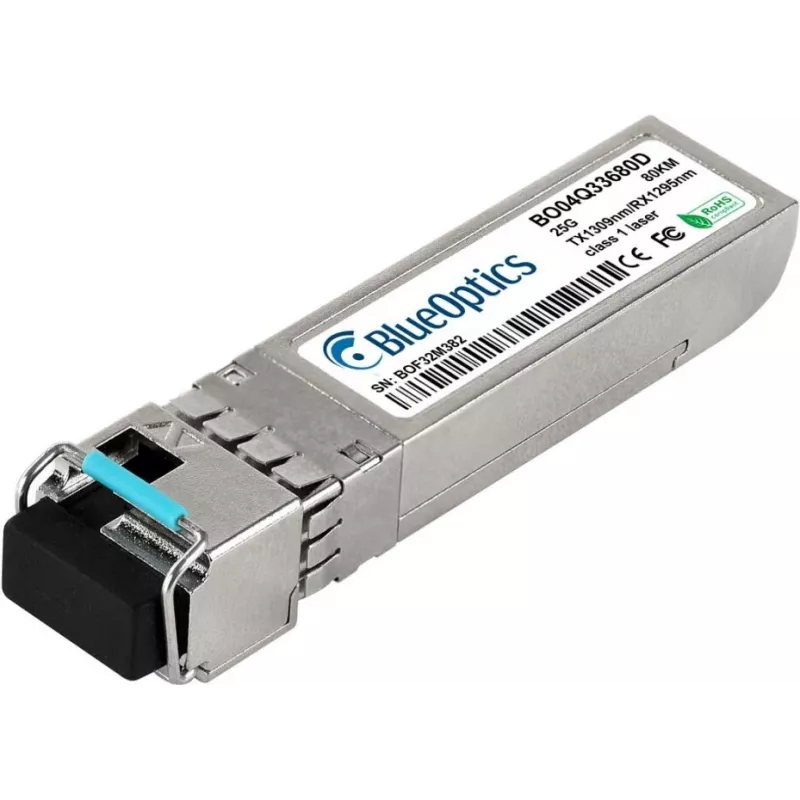

BlueOptics SFP28 25G BX-D 80km LC Simplex Transceptor para Cisco SFP28-25G-BX-D-80KM-CS-BO

BlueOptics SFP28 transceiver for 25 Gigabit Ethernet over single-mode fiber, delivering bidirectional data transmission up to 80 kilometers on a single LC simplex connector. This Cisco-compatible module operates at 25 Gbps with digital diagnostics monitoring and a commercial temperature range.

Advantages

Using a single fiber for both transmit and receive reduces cabling costs and simplifies infrastructure. The 80 km reach supports long-haul links between data centers or across campus networks. Hot-pluggable design allows installation without interrupting network operation.

Suitable for

• Data center interconnects requiring 25G over long distances
• Enterprise backbone links where fiber availability is limited
• Cisco network environments needing compatible optics

Key specifications

• Form factor: SFP28
• Data rate: 25 Gbps
• Standard: 25GBASE-BX-D
• Connector: LC simplex
• Fiber type: single-mode
• Maximum reach: 80 km
• TX wavelength: 1309.14 nm
• RX wavelength: 1295.56 nm
• DDM/DOM: supported
• Operating temperature: 0°C to +70°C
• Power supply: 3.3V

Recommendations

Verify compatibility with your Cisco equipment before deployment. For best performance, use OS2 single-mode fiber with low insertion loss connectors.
